SKU: SFP-BL5403-80Dx
Product Highlights
Supports up to 155Mbps bit rates
Hot-pluggable SFP footprint
1550nm DFB laser and PIN photo detector, Up to 80km for SMF transmission
Compliant with SFP MSA and SFF-8472 with single LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real Time Digital Diagnostic Monitoring

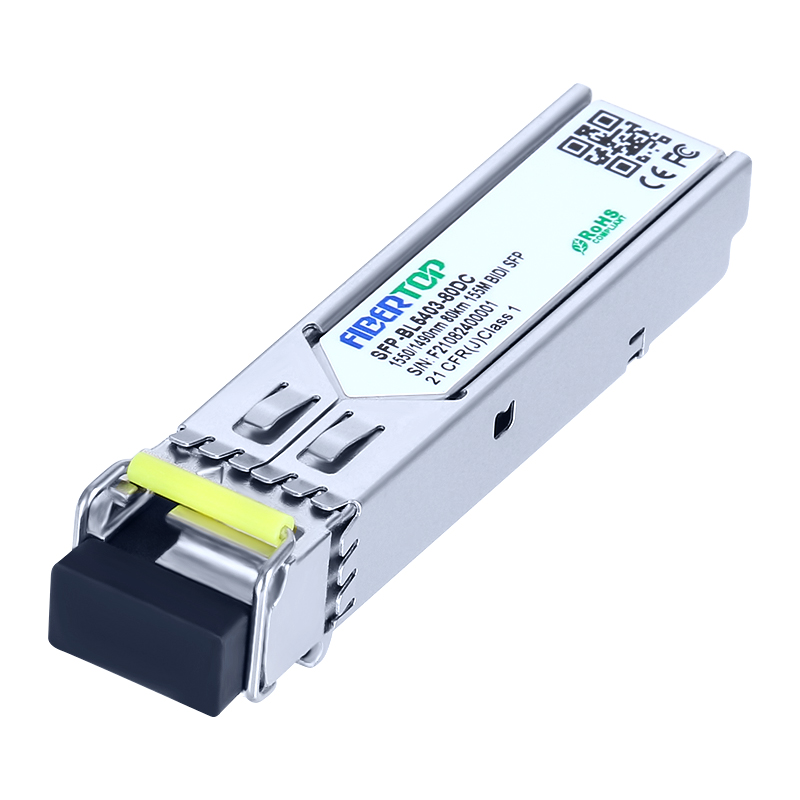

Fibertop 155Mbps BIDI SFP Transceiver SMF Tx 1550nm/Rx 1490nm 80km Single LC DOM
| Vendor Name | Fibertop | Fibertop Part Number(s) | SFP-BL5403-80Dx |
| Transceiver Type | BX80 | Reach | 80km |
| Wavelength | 1550nm Tx/1490nm Rx | Form Type | BiDi SFP |
| Speed Description | 155 Mbps | Media | SMF |
| Connector | LC Simplex | Extinction Ratio | >9.0 dB |
| TX Power | -5.0~+2.0 dBm | Receiver Sensitivity | <-32.0 dBm |
| Applications |
155Mbps Optical systems Fast Ethernet SONET OC-3 LR-2 / SDH STM L-1.2 Other Optical links |
Environment |
Operating: 0 to70°C Storage: -40°C to 85°C |
Quality Certification
Fibertop has strict control over all products' quality our products, including our strict qualification audit for material suppliers, comprehensive quality management system and production process control which comply with the certifications and safety standard. Our products accord with industry standard and mainstream quality certification, such as ISO 9001, CE, RoHS, CE, REACH, FCC, FDA, CB, UL etc.
Fibertop provide after-sales service in strict accordance with Chinese Consumer Protection Law & Product Quality Law of the People's Republic of China. The defects liability period is provided for each product based on the materials, workmanship, frequency of use and service life. The return, replacement and repair services are as follows:
|
Return within 30 days |
Replacement up to 1 year |
Up to 5 years warranty |
Provide relevant information (such as order number, product model, product serial number, product label, etc.)→Describe the problems you meet with →Fibertop confirms that the product is complete and still in the warranty period→Send the product back to Fibertop repair centre.
Note：The warranty period of the repair or replacement product is based on the longer time,either the remaining warranty period of the original product or ninety days after repair.
When your Fibertop products need repairing(RMA-Return Material Authorization ) , please contact your sales consultant to provide timely service to you.
Guarantee repairing in two years : 1.Not man made damage; 2. Product quality issues caused by design defects or material problems.
• Maintenance center judge as a non Fibertop products;
• The appearance of man-made damage;
• End face damage caused by use;
• Inapplicable items listed in the warranty statement.
• Fibertop guarantees that all the products are subject to strict quality control from raw materials procurement to production process. According to the problems raised by customers. if it is confirmed that the defective product are caused by raw materials or production process, Fibertop will provide repair or replacement services for free ;
• The warranty terms do not cover any damage to the product caused by improper installation, accidental disasters, natural disasters, abuse, misuse, inadequate or excessive power supply, incorrect operation, poor environmental conditions, and any unauthorized disassembly, repair or modification ;
• The warranty also does not apply to second-hand or unauthorized resale of products;
• The Fibertop warranty only guarantees that customers can enjoy repair and replacement services when they purchase defective or damaged products ; Fibertop is not obliged to compensate or assume responsibility for module damage and repair needs caused by other equipment in use.
• The warranty does not cover problems caused by third-party software or connected related equipment,etc.
| Fibertop always adheres to the concept of "focus, innovation and progress", and is committed to providing every user with reliable products and enthusiastic services. |
 |
|||||||
| Net Weight |
0.02kg | Gross Weight（with package) | 0.32kg |
||||
 Packing |
| Package of 1~50 pieces |
 |
| Step 1 | Step 2 |
 |
| Step 3 | Step 4 | ||
| Package of 51~200 pieces |
 |
| Step 1 | Step 2 |
 |
| Step 3 | Step 4 | ||
| Package of 201~400 pieces or more |
 |
| Step 1 | Step 2 |
 |
| Step 3 | Step 4 |
DELIVERY METHOD
Fibertop has established long-term cooperation with major global logistics companies to provide distribution services to more than 200 countries and regions.
| Receiving Region | Logistics Type | Timeliness |
| Hong Kong, Macao and Taiwan |  |
 |
 |
SF 1~2 days |
| FedEx IP 1~3 days | ||||
| FedEx IE 4~6 days | ||||
| DHL 2~5 days | ||||
| Overseas Regions |  |
 |
 |
UPS 1~3 days |
| FedEx 1~3 days | ||||
| DHL 2~5 days |
Note: 1. Timeliness is the estimated delivery time, some remote areas delivery may be delayed, the specific delivery time shall prevail.
2. If you need to specify the logistics company, please contact customer service staff or your sales representative.
|
Fibertop has 10+ years of R&D technology experience and more than 100 successful cases. With rich experience and R&D strength, we have a complete set of services from the core system design to the compatibility design of SFP transceivers and the completion of the final product. We can definitely satisfy our customers' needs through providing customized high-performance products and solutions at the first time. |
Product customization
|
Label |
Colour |
Model |
Length |
Function |
Scheme Customization
|
Business
|
Rate
|
Distance
|
 |
Fibertop focuses on customer-oriented solutions and provides technical support.
We can optimize the design based on your original solutions, and also provide you with a complete network solution ,related products and technical support. |
| SFP-BL3503-03Dx |
155Mbps SFP BIDI Transceiver Tx 1310nm/Rx 1550nm 3km Single LC DOM 0-70°/-40-85° |
| SFP-BL5303-03Dx | 155Mbps SFP BIDI Transceiver Tx 1550nm/Rx 1310nm 3km Single LC DOM 0-70°/-40-85° |
| SFP-BL3503-20Dx |
155Mbps SFP BIDI Transceiver Tx 1310nm/Rx 1550nm 20km Single LC DOM 0-70°/-40-85° |
| SFP-BL3503-20Dx | 155Mbps SFP BIDI Transceiver Tx 1550nm/Rx 1310nm 20km Single LC DOM 0-70°/-40-85° |
| SFP-BL3503-40Dx |
155Mbps SFP BIDI Transceiver Tx 1310nm/Rx 1550nm 40km Single LC DOM 0-70°/-40-85° |
| SFP-BL5303-40Dx | 155Mbps SFP BIDI Transceiver Tx 1550nm/Rx 1310nm 40km Single LC DOM 0-70°/-40-85° |
| SFP-BL3503-80Dx |
155Mbps SFP BIDI Transceiver Tx 1310nm/Rx 1550nm 80km Single LC DOM 0-70°/-40-85° |
| SFP-BL5303-80Dx |
155Mbps SFP BIDI Transceiver Tx 1550nm/Rx 1310nm 80km Single LC DOM 0-70°/-40-85° |
| SFP-BL3503-A2Dx |
155Mbps SFP BIDI Transceiver Tx 1310nm/Rx 1550nm 120km Single LC DOM 0-70°/-40-85° |
| SFP-BL5303-A2Dx | 155Mbps SFP BIDI Transceiver Tx 1550nm/Rx 1310nm 120km Single LC DOM 0-70°/-40-85° |
SKU: SFP-DWxxDF-20DC Product Highlights Supports up to 28.05Gbps bit rates Hot-pluggable SFP+ footprint 850nm VCSEL laser and PIN photodiode, 100m over M5F MMF (50/125 um OM4) Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle Compatible with RoHS Single +3.3V power supply Real Time Digital Diagnostic Monitoring
SKU: 455886-B21-FSZ Product Highlights Max. Power Consumption 1W Tested in Targeted Switches for Superior Performance, Quality, and Reliability Hot Pluggable SFP+ MSA Compliant Digital Optical Monitoring Capability for Strong Diagnostic Capabilities Optical Interoperability with 10GBASE XENPAK, X2, and XFP Interfaces On the Same Link Class 1 FDA Laser Safety and RoHS Compliant IEEE 802.3ae Compliant
SKU: Product Highlights Max. Power Consumption 1W Tested in Targeted Switches for Superior Performance, Quality, and Reliability Hot Pluggable SFP+ MSA Compliant Digital Optical Monitoring Capability for Strong Diagnostic Capabilities Optical Interoperability with 10GBASE XENPAK, X2, and XFP Interfaces On the Same Link Class 1 FDA Laser Safety and RoHS Compliant IEEE 802.3ae Compliant

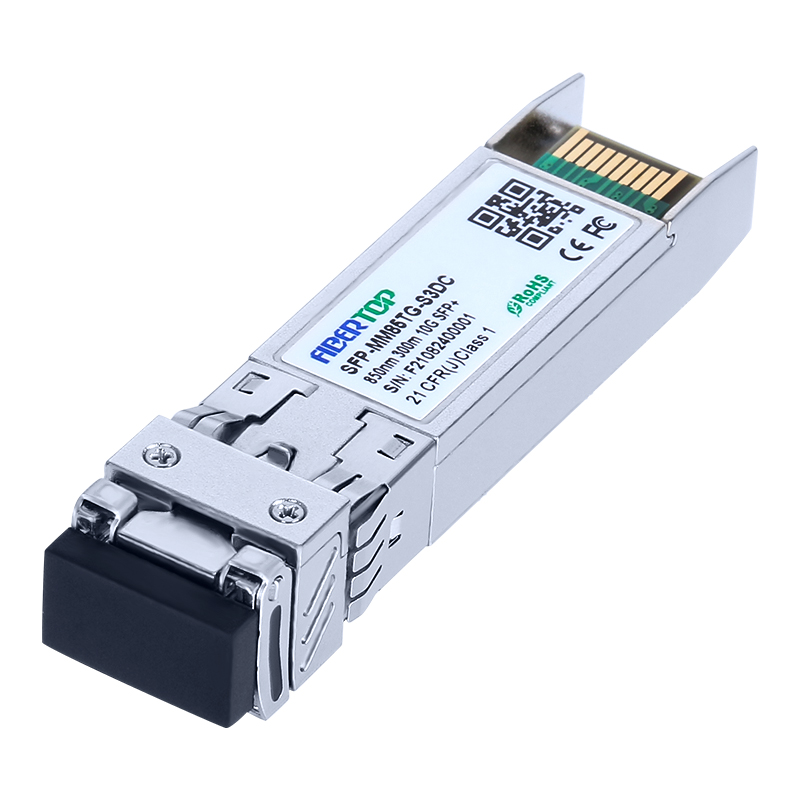

SKU: SFP-MM85TG-S3DC Product Highlights Supports up to 10.7Gbps bit rates Hot-pluggable SFP+ footprint 850nm VCSEL laser and PIN photodiode, Up to 300m for OM3-MMF transmission Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle Compatible with RoHS Single +3.3V power supply Real Time Digital Diagnostic Monitoring Operating case temperature: Standard: 0 to +70°C Industrial: -40 to +85°C
