400G QSFP-DD - Optical Transceivers Modules

FIBERTOP 400G SR8 QSFP-DD MMF 850nm 100M MPO DOM Transceiver Module

SKU: QDD-MM85QG-SR8C-FSZ Product Highlights 8 independent parallel optical channels Each channel data rate up to 26.56GBaud with CDR Hot Pluggable Up to 100m link on OM4 Multi-mode 850nm VCSEL/PD Array Technology CML Compatible electrical I/O,QSFP-DD MSA Compliance Optical connectivity via industry standard MPO/MTPterminated fiber ribbon CMIS 4.0 Compliance, Monitors for VCSEL bias, transmitted, received power , module temperature, and module supply RoHS II Compliance, Case Operating Temperature:Commercial: 0 to 70ºC MPO-16 APC Optical Receptacle Type

Hot Tags : 400G QSFP-DD 400g qsfp-dd sr8 400g qsfp-dd 850nm 100m telecom network optical module qsfp-ddtransceiver
Read More >>
400G QSFP-DD Optical Transceiver Module FR8 2km

SKU: QDD-LW31QG-FR8C Product Highlights 8 channels full-duplex transceiver modules Transmission data rate up to 53Gbps per channel 8x53Gbps PAM4 transmitter and PAM4 receiver 8 channels LAN-WDM 8 wavelengths EML 8 channels PIN photo detector Internal CDR circuits on both receiver and transmitter channels Power consumption <12.5W Hot Pluggable QSFP DD form factor and Compliant with CMIS 4.0 Maximum link length of 2km G.652 SMF with KP-FEC Duplex LC receptacles Built-in digital diagnostic functions 3.3V power supply voltage RoHS compliant(lead free) Operating case temperature:Standard: 0 to +70°C

Hot Tags : 400G 400G QSFP 400G QSFP DD 400G 2KM 400G QSFP-DD 2KM 400G FR8
Read More >>
FIBERTOP QSFP-DD 400G ER8 40Km Optical Transceiver Module

SKU: QFP-LW31QG-ER8C Product Highlights QSFP-DD MSA compliant Compliant to IEEE 802.3bs 400GBASE-ER8 Digital diagnostic monitoring support Hot pluggable 76 pin electrical interface 8 LAN-WDM lanes MUX/DEMUX design 53.125 Gbps PAM4 Channel Electrical Serial Interface (400GAUI-8) Maximum power consumption 15.4 W LC duplex connector Supports 425 Gbps bit rate Up to 40 km transmission on single mode fiber Single 3.3 V power supply RoHS 2 compliant Operating case temperature:Standard: 0 to +70°C

Hot Tags : 400G 400G QSFP 400G QSFP DD 400G 40KM 400G QSFP-DD 40KM 400G ER8
Read More >>

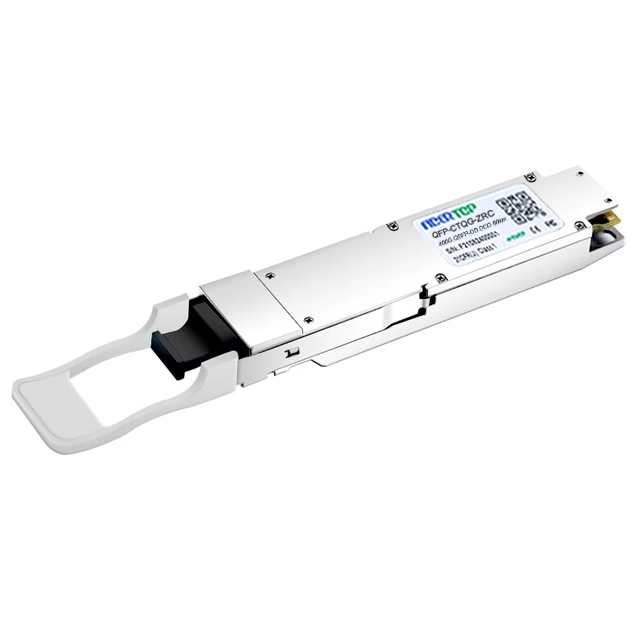

400GBASE- ZR OSFP-DCO DWDM 80km Optical Transceiver Module

SKU: QFP-CTQG-ZRC Product Highlights Support Flex-grid channel spacing DWDM in C-band Support Client-side Interfaces: 400GAUI-8 Support Line-side DP-16QAM with CFEC Standard QSFP-DD type 2 form factor 76pin QSFP-DD MSA compliant connector Compliant to CMIS 5.0 Compliant to OIF Implementation Agreement for Coherent CMIS, Rev 01.1

Hot Tags : qsfp-dd 400g qsfp-dd 400g 80km qsfp-dd 400g zr 400g zr+ qsfp-dd-dco 400g zr+ coherent osfp-400g-zr
Read More >>
FIBERTOP 400G Coherent OSFP-DCO ZR+ 80KM C-band Tunable Optical Transceiver Module

SKU: QFP-CTQG-ZRC Product Highlights Support Flex-grid channel spacing DWDM in C-band Support Client-side Interfaces: 400GAUI-8 Support Line-side DP-16QAM with CFEC Standard QSFP-DD type 2 form factor 76pin QSFP-DD MSA compliant connector Compliant to CMIS 5.0 Compliant to OIF Implementation Agreement for Coherent CMIS, Rev 01.1

Hot Tags : qsfp-dd 400g qsfp-dd 400g 80km qsfp-dd 400g zr 400g zr+ qsfp-dd-dco 400g zr+ coherent osfp-400g-zr
Read More >>
FIBERTOP 400G ZR+ QSFP-DD Coherent DWDM DCO Optical Module Transceiver 120km

SKU: QFP-DCQG-ZRC Product Highlights Operating rate up to 478.75 Gbps PM-QPSK (200G) and PM-16QAM (200G / 400G) modulation formats 400GE, 200GE and OTU4 / OTUCn services Hot-pluggable QSFP-DD form factor 8 × CEI-56G-VSR electrical interfaces Lock registers Maximum power consumption: 24 W

Hot Tags : 400g coherent transceiver 400g dco 400G QSFP-DD DCO 400g coherent 400g zr+ coherent dwdm coherent
Read More >>
