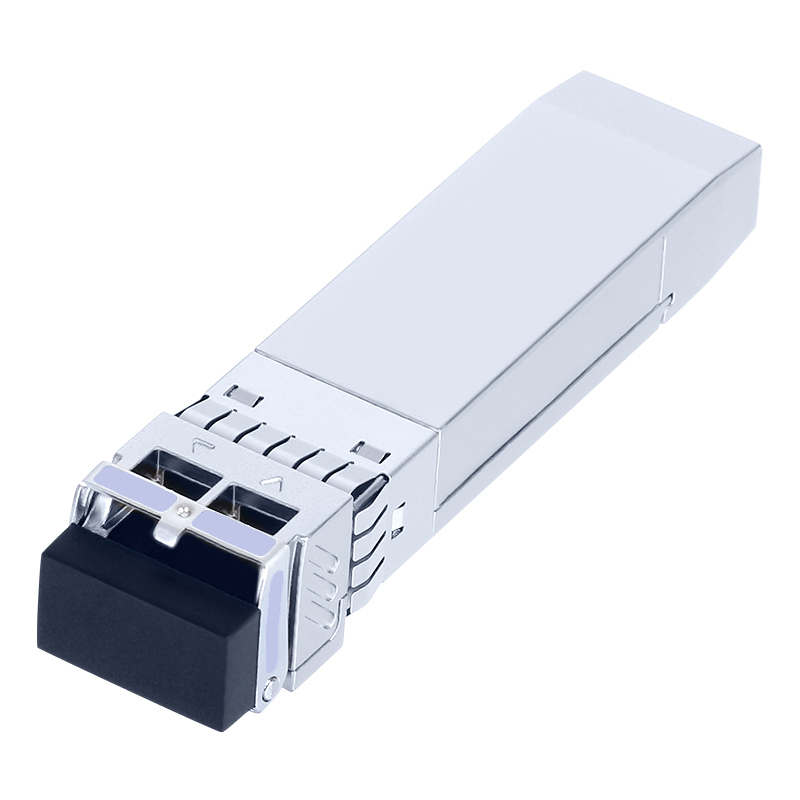

FIBERTOP 10G CWDM SFP+ SMF 1470nm~1610nm 40km LC DOM Transceiver Module



SKU: SFP-CWxxTG-40DC



Product Highlights



Supports up to 10.7Gbps bit rates



Hot-pluggable SFP+ footprint



CWDM Cooled EML laser and PIN photodiode, Up to 40km for SMF transmission



Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle



Compatible with RoHS



Single +3.3V power supply



Real Time Digital Diagnostic Monitoring


New Products



FIBERTOP 10G CWDM SFP+ SMF 1470nm~1610nm 40km LC DOM Transceiver Module



The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 40km transmission distance with SMF. The transceiver consists of three sections: a Cooled EML laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.





Technical Specification

Vendor Name FIBERTOP FIBERTOP Part Number(s) SFP-CWxxTG-40DC
Transceiver Type CWDM Reach 40km
Wavelength

1470nm/1490nm/1510nm/1530nm

1550nm/1570nm/1590nm/1610nm

Form Type SFP+
Speed Description 10-Gigabit Media SMF
Connector LC  Extinction Ratio >6.0 dBm
TX Power -1~+2 dBm Receiver Sensitivity <-15.5 dBm
 Applications

10Gbps CWDM Optical systems

10GBASE-ER at 10.3125Gbps

Other Optical links

Environment

Operating:0 to 70°C







Quality Assurance





Quality Certification

FIBERTOP has strict control over all products' quality, including our strict qualification audit for material suppliers, comprehensive quality management system and production process control which comply with the certifications and safety standard. Our products accord with industry standard and mainstream quality certification, such as  ISO 9001, CE, RoHS, CE, REACH, FCC, FDA, CB, UL etc.



  • Excellent quality is the foundation of FIBERTOP' s survival and development.
  • Our R&D team are experts with many years' experience in telecom industry.
  • Our manufacturers are first-class manufacturers in the industry.
  • Many of them have the qualification of OEM for first-class system equipment manufacturers.















FIBERTOP provide after-sales service in strict accordance with Chinese Consumer Protection Law & Product Quality Law of the People's Republic of China. The defects liability period is provided for each product based on the materials, workmanship, frequency of use and service life. The return, replacement and repair services are as follows:






Return within 30 days


Replacement up to 1 year


Up to 5 years warranty


  • Warranty process

Provide relevant information (such as order number, product model, product serial number, product label, etc.)→Describe the problems you meet with →FIBERTOP confirms that the product is complete and still in the warranty period→Send the product back to FIBERTOP repair centre.

Note:The warranty period of the repair or replacement product is based on the longer time,either the remaining warranty period of the original product or ninety days after repair.

  • Request a repair

When your FIBERTOP products need repairing(RMA-Return Material Authorization ) , please contact your sales consultant to provide timely service to you.



  • Free maintenance items

Guarantee repairing in two years : 1.Not man made damage; 2. Product quality issues caused by design defects or material problems.



  • The following conditions will not be repaired

• Maintenance center judge as a non FIBERTOP products;

The appearance of man-made damage;

End face damage caused by use;

Inapplicable items listed in the warranty statement.



  • Warranty description

FIBERTOP guarantees that all the products are subject to strict quality control from raw materials procurement to production process. According to the problems raised by customers. if it is confirmed that the defective product are caused by raw materials or production process, FIBERTOP will provide repair or replacement services for free ;

The warranty terms do not cover any damage to the product caused by improper installation, accidental disasters, natural disasters, abuse, misuse, inadequate or excessive power supply, incorrect operation, poor environmental conditions, and any unauthorized disassembly, repair or modification ;

The warranty also does not apply to second-hand or unauthorized resale of products;

The FIBERTOP warranty only guarantees that customers can enjoy repair and replacement services when they purchase defective or damaged products ; FIBERTOP is not obliged to compensate or assume responsibility for module damage and repair needs caused by other equipment in use.

The warranty does not cover problems caused by third-party software or connected related equipment,etc.



FIBERTOP always adheres to the concept of "focus, innovation and progress", and is committed to providing every user with reliable products and enthusiastic services.





    Net weight
0.023kg Gross Weight(with package) 0.32kg





 Packing

Package of 1~50 pieces
  Step 1 Step 2
  Step 3 Step 4

Package of 51~200 pieces
  Step 1 Step 2
  Step 3 Step 4

Package of 201~400 pieces or more
  Step 1 Step 2
  Step 3 Step 4





DELIVERY METHOD



FIBERTOP has established long-term cooperation with major global logistics companies to provide distribution services to more than 200 countries and regions.



Receiving Region Logistics Type Timeliness
Hong Kong, Macao and Taiwan SF 1~2 days
FedEx IP 1~3 days
FedEx IE 4~6 days
DHL 2~5 days
Overseas Regions UPS 1~3 days
FedEx 1~3 days
DHL 2~5 days





Note: 1. Timeliness is the estimated delivery time, some remote areas delivery may be delayed, the specific delivery time shall prevail .



  2. If you need to specify a logistics company, please contact customer service staff or your sales representative.











FIBERTOP has 10+ years of R&D technology experience and more than 100 successful cases. With rich experience and R&D strength, we have a complete set of services from the core system design to the  compatibility design of SFP transceivers and the completion of the final product. We can definitely satisfy our customers' needs through providing customized high-performance products and solutions at the first time.



Product customization





Fs_label.svg

Label

Fs_colour.svg

Colour

Fs_model.svg

Model

Fs_length.svg

Length

Fs_function.svg

Function













Scheme Customization







Business





Rate





Distance





FIBERTOP focuses on customer-oriented solutions and provides technical support.



We can optimize the design based on your original solutions, and also provide you with a complete network solution ,related products and technical support.

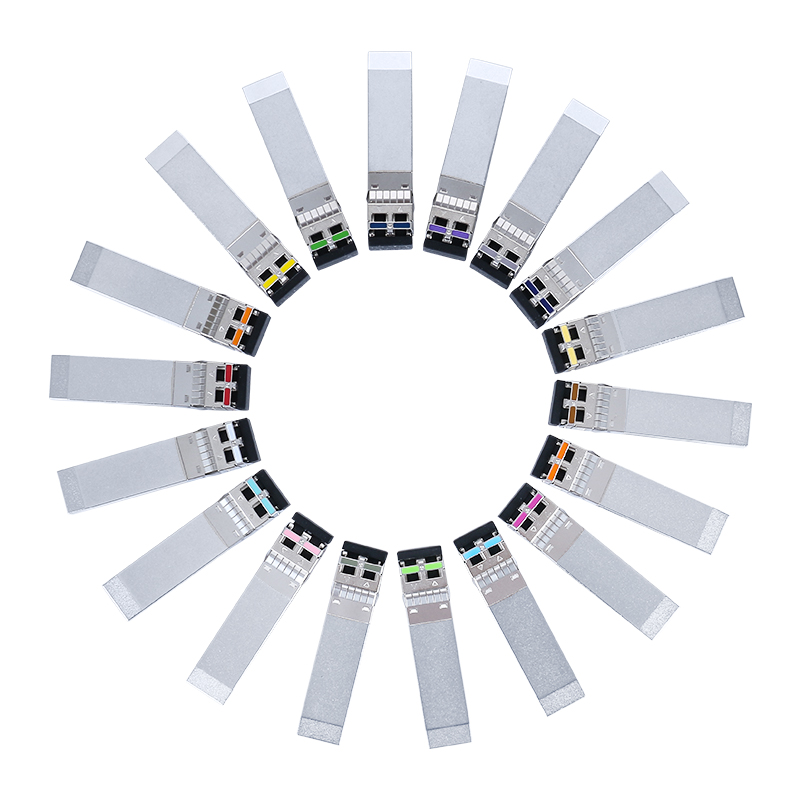

10G CWDM SFP+ 1470m~1610km Transceivers

SFP-CW47TG-40DC 10G CWDM SFP+ Transceiver SMF 1470nm 40km LC DOM 0-70℃
SFP-CW49TG-40DC 10G CWDM SFP+ Transceiver SMF 1490nm 40km LC DOM 0-70℃
SFP-CW51TG-40DC 10G CWDM SFP+ Transceiver SMF 1510nm 40km LC DOM 0-70℃
SFP-CW53TG-40DC 10G CWDM SFP+ Transceiver SMF 1530nm 40km LC DOM 0-70℃
SFP-CW55TG-40DC 10G CWDM SFP+ Transceiver SMF 1550nm 40km LC DOM 0-70℃
SFP-CW57TG-40DC
10G CWDM SFP+ Transceiver SMF 1570nm 40km LC DOM 0-70℃
SFP-CW59TG-40DC
10G CWDM SFP+ Transceiver SMF 1590nm 40km LC DOM 0-70℃
SFP-CW61TG-40DC
10G CWDM SFP+ Transceiver SMF 1610nm 40km LC DOM 0-70℃
