FIBERTOP 10G SR SFP+ MMF 850nm 300m LC DOM Transceiver Module 1
FIBERTOP 10G SR SFP+ MMF 850nm 300m LC DOM Transceiver Module 1
FIBERTOP 10G SR SFP+ MMF 850nm 300m LC DOM Transceiver Module 1

FIBERTOP 10G SR SFP+ MMF 850nm 300m LC DOM Transceiver Module 1



SKU: SFP-MM85TG-S3DC



Product Highlights



Supports up to 10.7Gbps bit rates
Hot-pluggable SFP+ footprint
850nm VCSEL laser and PIN photodiode, Up to 300m for OM3-MMF transmission
Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real Time Digital Diagnostic Monitoring
Operating case temperature:
Standard:  0 to +70°C
Industrial: -40 to +85°C


New Products



FIBERTOP 10G SR SFP+ Transceiver  MMF 850nm 300m LC DOM



This FIBERTOP SFP-MM85TG-S3DC SFP+ transceiver is a high performance and cost-effective 10Gb/s SFP+ SR transceiver module for 10 Gigabit Ethernet links up to 300m over OM3 multimode fiber.

This SFP+ SR module features a highly reliable 850nm VCSEL transmitter and PIN photo-detector into LC Duplex optical connector.

The module complies with SFP+ MSA specifications (SFF-8431, SFF-8432, SFF-8472), 10 Gigabit Ethernet specifications (10GBASE-SR/SW per IEEE 802.3ae ), and 10G Fibre Channel (1200-MX-SN-I).

It’s suitable for using with 10GbE Ethernet switches, routers, network interface cards (NICs), fiber media converters and storage networking equipment.

The SFP-MM85TG-S3DC offers the most power efficient way to meet the demanding needs of the next-generation data center networking environment.

Additionally, the SFP+ SR transceiver module has been integrated with an enhanced digital diagnostic monitoring interface (DDMI) per SFF-8472, which provides real-time monitoring of the transceiver temperature, laser bias current, optical power, received optical power and transceiver supply voltage.

All SFP+ transceivers module are Class 1 laser products comply with FDA/CDRH and IEC-60825 standards.





Technical Specification

Vendor Name FIBERTOP FIBERTOPSFP Part Number(s) SFP-MM85TG-S3DC
Transceiver Type SR Reach 300m
Wavelength 850nm Form Type SFP+
Speed Description 10-Gigabit Media MMF
Connector LC  Extinction Ratio >3dB
TX Power -6.0~-0.5dBm Receiver Sensitivity <-10.5dBm
 Applications

10GBASE-SR at 10.3125Gbps

10GBASE-SW at 9.953Gbps

Other Optical links

Environment

Operating: 0 to70℃

Storage: -40°C to 85°C





Quality Assurance





Quality Certification

FIBERTOP has strict control over all products' quality, including strict qualification audit for material suppliers, comprehensive quality management system and production process control which comply with the certifications and safety standard. Our products accord with industry standard and mainstream quality certification, such as  ISO 9001, CE, RoHS, CE, REACH, FCC, FDA, CB, UL etc.



  • Excellent quality is the foundation of FIBERTOPSFP' s survival and development.
  • Our R&D team are experts with rich experience in optical telecom industry.
  • Our material suppliers are first-class manufacturers in the industry.
  • We have the qualification of OEM for first-class system equipment manufacturers.













FIBERTOP provides after-sales service in strict accordance with Chinese Consumer Protection Law & Product Quality Law of the People's Republic of China. The defects liability period is provided for each product based on the materials, workmanship, frequency of use and service life. The return, replacement and repair services are as follows:






Return within 30 days


Replacement up to 1 year


Up to 5 years warranty


  • Warranty process

Provide relevant information(such as order number, product model, product serial number, product label, etc.)→Describe the problems you meet with→FIBERTOPSFP confirms that the product is complete and still in the warranty period→Send the product back to FIBERTOPSFP repair centre.

Note:The warranty peroid of the repair or replacement product is based on the longer time, either the remaining warranty period of the original product or ninety days after repair.



  • Request a Repair

When your FIBERTOP products need repairing (RMA-Return Material Authorization), please contact your sales consultant to provide timely service for you.



  • Free maintenance items

Guarantee repairing in two years: 1. Not man made damage  2. Product quality issues caused by design defects or material problems



  • The following conditions will not be repaired

•  Maintenance center judge as non FIBERTOP products;

The appearance of man-made damage;

End face damage caused by use;

Inapplicable items listed in the warranty statement.



  • Warranty description

FIBERTOP guarantees that all products are subject to strict quality control from raw material procurement to production process. According to the problems raised by customers, if it is confirmed that the defective products are caused by raw materials or production process, FIBERTOP will provide repair or replacement services for free;

The warranty terms do not cover any damage to the product caused by improper installation, accidental disasters, natural disasters, abuse, misuse, inadequate or excessive power supply, incorrect operation, poor environmental conditions, and any unauthorized disassembly, repair or modification;

The warranty also does not apply to second-hand or unauthorized resale of products;

The FIBERTOP warranty only guarantees that customers can enjoy repair and replacement services when they purchase defective or damaged products; FIBERTOP is not obligated to compensate or assume responsibility for module damage and repair needs caused by other equipment in use.

The warranty does not cover problems caused by third-party software or connected related devices, etc.



FIBERTOP always adheres to the concept of "focus, innovation and progress", and is committed to providing every user with reliable products and enthusiastic services.

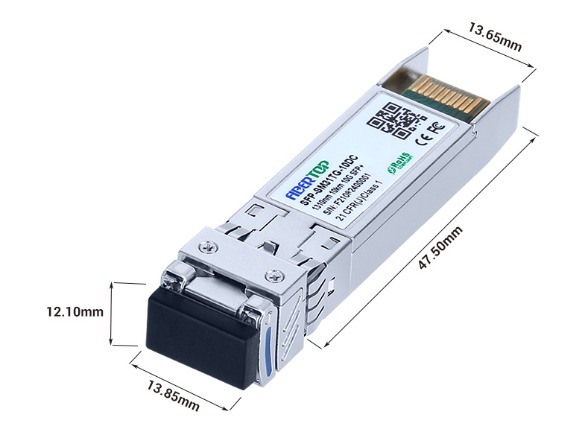

    Net Weight
0.019kg Gross Weight 0.32kg





 Packing

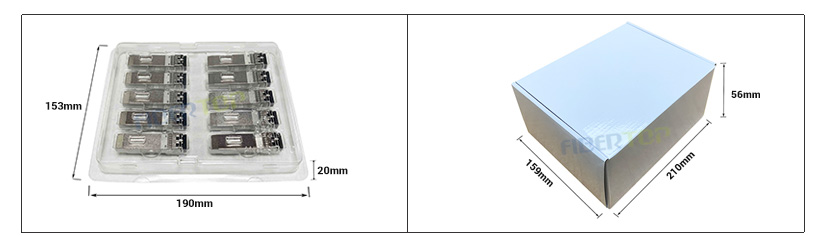

Package of 1~50 pieces
  Step 1 Step 2
  Step 3 Step 4

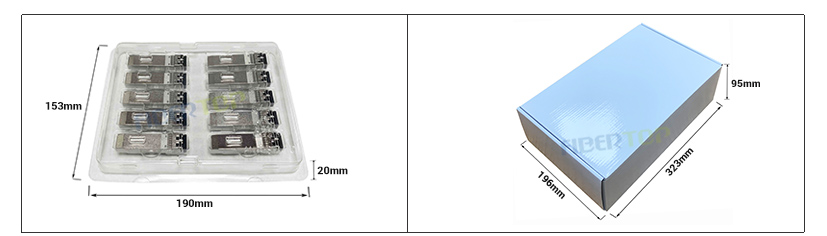

Package of 51~200 pieces
  Step 1 Step 2
  Step 3 Step 4

Package of 201~400 pieces or more
  Step 1 Step 2
  Step 3 Step 4





DELIVERY METHOD



FIBERTOP has established long-term cooperation with major global logistics companies to provide distribution services to more than 200 countries and regions.



Receiving Region Logistics Type Timeliness
Hong Kong, Macao and Taiwan SF 1~2 days
FedEx IP 1~3 days
FedEx IE 4~6 days
DHL 2~5 days
Overseas Regions UPS 1~3 days
FedEx 1~3 days
DHL 2~5 days





Note: 1. Timeliness is the estimated delivery time, some remote areas delivery may be delayed, the specific delivery time shall prevail.;



  2. If you need to specify a logistics company, please contact customer service staff or your sales representative.











FIBERTOP has 10+ years of R&D technology experience and more than 100 successful cases. With rich experience and R&D strength, we have a complete set of  services from the core system design to the compatibility design of SFP transceivers and  the completion of the final product,  we  can definitely satisfy our customers' needs through providing customized high-performance products and solutions at the first time.



Product customization





Fs_label.svg

Label

Fs_colour.svg

Colour

Fs_model.svg

Model

Fs_length.svg

Length

Fs_function.svg

Function













Scheme Customization







Business





Rate





Distance





FIBERTOP focuses on customer-oriented solutions and provides technical support.



We can optimize the design based on your original solution, and also provide you with a complete network  solution, related products and technical support.









10G SFP 850nm 300m Transceivers

SFP-MM85TG-S3DC
10G SR SFP+ Transceiver MMF 850nm 300m LC DOM 0~70℃
SFP-MM85TG-S3DI 10G SR SFP+ Industrial Transceiver MMF 850nm 300m LC DOM -40~85℃
