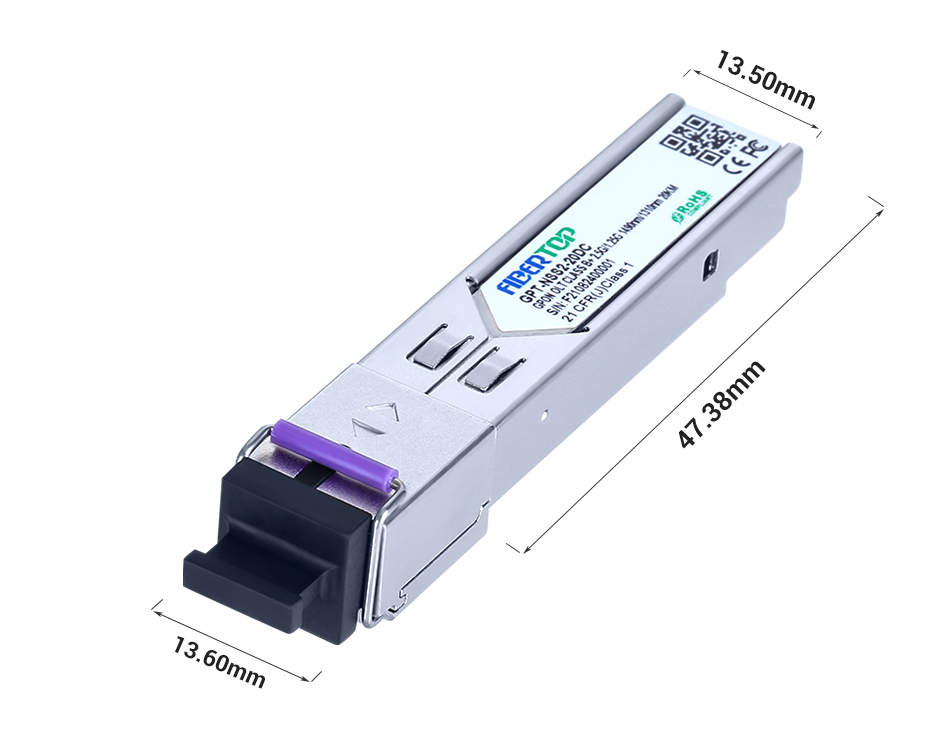

FIBERTOP 2.5G/1.25G GPON OLT SFP Class C++ 1490nm-Tx/1310nm-Rx 20km SC/UPC DOM Transceiver Module
FIBERTOP 2.5G/1.25G GPON OLT SFP Class C++ 1490nm-Tx/1310nm-Rx 20km SC/UPC DOM Transceiver Module

FIBERTOP 2.5G/1.25G GPON OLT SFP Class C++ 1490nm-Tx/1310nm-Rx 20km SC/UPC DOM Transceiver Module



SKU: GPT-NSS4-20DC



Product Highlights



SFP with SC/PC Connector Transceiver



Up to 10.3Gb/s data links, Duplex LC connector



1490 nm DFB Tx with isolator



1310 nm APD Rx



Digital diagnostics SFF-8472 Compliant



2488 Mbps continuous mode Transmission



1244 Mbps Burst mode receiver Data Rate


New Products

FIBERTOP 2.5G/1.25G GPON OLT SFP Class C++ 1490nm-Tx/1310nm-Rx 20km SC/UPC DOM


The GPT-NSS4-20DC transceiver with supports data rate of typical 2.488 Gbps for GPON OLT application up to 20km transmission distance, it is designed meeting with ITU-T G.984.2 Class B+/ C+/ C++ specifications. SC rececptacle is for optical interface..




Technical Specification

Vendor Name

FIBERTOP



FIBERTOP Part Number(s) GPT-NSS4-20DC
Transceiver Type

GPON OLT



Reach 20km
Wavelength

Tx 1490nm/Rx 1310nm



Form Type SFP
Speed Description

2.5Gbps-Tx/1.25Gbps-Rx



Media SMF
Connector

SC/UPC



 Extinction Ratio >9 dB
TX Power

4.5~10 dBm



Receiver Sensitivity <-32 dBm
 Applications

GPON OLT Class C++





Environment

Operating:0 to 70°C

Storage: -40°C to 85°C









Quality Assurance





Quality Certification

FIBERTOP has strict control over all products' quality our products, including our strict qualification audit for material suppliers, comprehensive quality management system and production process control which comply with the certifications and safety standard. Our products accord with industry standard and mainstream quality certification, such as  ISO 9001, CE, RoHS, CE, REACH, FCC, FDA, CB, UL etc.



  • Excellent quality is the foundation of FIBERTOPSFP' s survival and development.
  • Our R&D team are experts with rich experience in telecom industry.
  • Our material suppliers are first-class manufacturers in the industry.
  • We have the qualification of OEM for first-class system equipment manufacturers.











FIBERTOP provide after-sales service in strict accordance with Chinese Consumer Protection Law & Product Quality Law of the People's Republic of China. The defects liability period is provided for each product based on the materials, workmanship, frequency of use and service life. The return, replacement and repair services are as follows:






Return within 30 days


Replacement up to 1 year


Up to 5 years warranty


  • Warranty process

Provide relevant information (such as order number, product model, product serial number, product label, etc.)→Describe the problems you meet with →FIBERTOP confirms that the product is complete and still in the warranty period→Send the product back to FIBERTOP repair centre.

Note:The warranty period of the repair or replacement product is based on the longer time,either the remaining warranty period of the original product or ninety days after repair.

  • Request a repair

When your FIBERTOP products need repairing(RMA-Return Material Authorization ) , please contact your sales consultant to provide timely service to you.



  • Free maintenance items

Guarantee repairing in two years : 1.Not man made damage; 2. Product quality issues caused by design defects or material problems.



  • The following conditions will not be repaired

• Maintenance center judge as a non FIBERTOP products;

The appearance of man-made damage;

End face damage caused by use;

Inapplicable items listed in the warranty statement.



  • Warranty description

FIBERTOP guarantees that all the products are subject to strict quality control from raw materials procurement to production process. According to the problems raised by customers. if it is confirmed that the defective product are caused by raw materials or production process, FIBERTOP will provide repair or replacement services for free ;

The warranty terms do not cover any damage to the product caused by improper installation, accidental disasters, natural disasters, abuse, misuse, inadequate or excessive power supply, incorrect operation, poor environmental conditions, and any unauthorized disassembly, repair or modification ;

The warranty also does not apply to second-hand or unauthorized resale of products;

The FIBERTOP warranty only guarantees that customers can enjoy repair and replacement services when they purchase defective or damaged products ; FIBERTOP is not obliged to compensate or assume responsibility for module damage and repair needs caused by other equipment in use.

The warranty does not cover problems caused by third-party software or connected related equipment,etc.



FIBERTOP SFP always adheres to the concept of "focus, innovation and progress", and is committed to providing every user with reliable products and enthusiastic services.





    Net Weight
0.02kg Gross Weight (with package) 0.32kg





 Packing

Package of 1~50 pieces
  Step 1 Step 2
  Step 3 Step 4

Package of 51~200 pieces
  Step 1 Step 2
  Step 3 Step 4

Package of 201~400 pieces or more
  Step 1 Step 2
  Step 3 Step 4





DELIVERY METHOD



FIBERTOP SFP has established long-term cooperation with major global logistics companies to provide distribution services to more than 200 countries and regions.



Receiving Region Logistics Type Timeliness
Hong Kong, Macao and Taiwan SF 1~2 days
FedEx IP 1~3 days
FedEx IE 4~6 days
DHL 2~5 days
Overseas Regions UPS 1~3 days
FedEx 1~3 days
DHL 2~5 days





Note: 1. Timeliness refers to the estimated delivery time, and delivery in some remote areas may be delayed, depending on the delivery time;



  2. If you need to designate a logistics company, please contact online customer service or your sales representative.











FIBERTOP has 10+ years of R&D technology experience and more than 100 successful cases. With rich experience and R&D strength, we have a complete set of services from the core system design to the  compatibility design of SFP transceivers and the completion of the final product. We can definitely satisfy our customers' needs through providing customized high-performance products and solutions at the first time.



Product customization





Fs_label.svg

Label

Fs_colour.svg

Colour

Fs_model.svg

Model

Fs_length.svg

Length

Fs_function.svg

Function













Scheme Customization







Business





Rate





Distance





FIBERTOP focuses on customer-oriented solutions and provides technical support.



We can optimize the design based on your original solutions, and also provide you with a complete network solution ,related products and technical support.









2.5G/1.25G GPON OLT SFP 1490nm-Tx/1310nm-Rx  20km Transceivers

GPT-NSS2-20DC 2.5G/1.25G  GPON OLT SFP  Transceiver  Class B+ 1490nm-Tx/1310nm-Rx 20km SC/UPC DOM  0°C~+70°C
GPT-NSS3-20DC 2.5G/1.25G  GPON OLT SFP  Transceiver  Class C+ 1490nm-Tx/1310nm-Rx 20km SC/UPC DOM  0°C~+70°C
GPT-NSS4-20DC 2.5G/1.25G  GPON OLT SFP  Transceiver  Class C++ 1490nm-Tx/1310nm-Rx 20km SC/UPC DOM  0°C~+70°C
