Mar 20, 2017

PON (Passive Optical Network) optical transceiver modules are critical components used in fiber optic communication systems to achieve efficient fiber network transmission. enabling the conversion of light signals to electrical signals for data transmission and reception.

The operation of PON optical transceiver modules is based on fiber access technology, utilizing a passive optical network architecture. These modules transmit signals to user terminals through optical fibers without the need for active devices to amplify the signals, reducing network cost and energy consumption.






PON (Passive Optical Network) is a type of optical distribution (ODN) that operates without any active electronic devices between the Optical Line Terminal (OLT) and Optical Network Units (ONUs). This architecture eliminates electromagnetic interference and lightning impact from external devices, reduces line and external equipment failure rates, improves system reliability, and saves maintenance costs, making it a long-awaited technology for telecommunication maintenance departments. PON offers good service transparency and can, in principle, be applied to any standard and signal rate.





OLT, which stands for Optical Line Terminal, is the central office equipment in the PON system. It connects the optical fiber backbone and serves as the equivalent of switches or routers in traditional communication networks. It acts as both the gateway to the external network and the entrance/exit point for the internal network. The main functions of the OLT include traffic scheduling, buffer control, and providing access to the passive optical fiber network interface and bandwidth allocation towards users. In simple terms, the OLT performs two primary functions: handling upstream access to the PON network and distributing received data to all ONU user terminals via the ODN network.

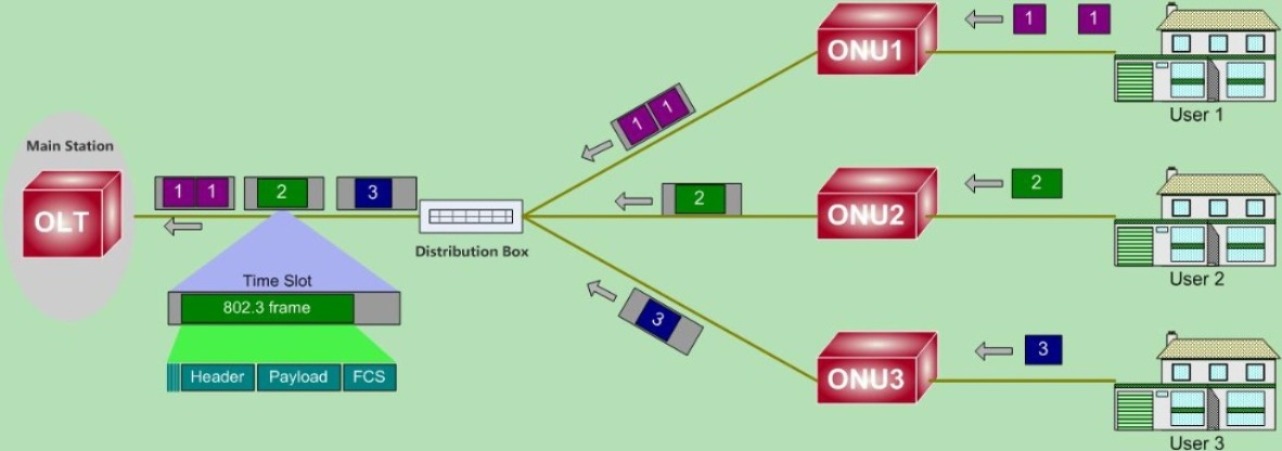

ONU, or Optical Network Unit, plays two roles: selectively receiving broadcasts sent by the OLT and providing selective responses if it needs to receive the data; collecting and buffering Ethernet data to be sent by users and transmitting it to the OLT according to the assigned transmission window. In FTTx networks, the deployment of ONUs can vary based on the scenario. For example, in FTTC (Fiber To The Curb), the ONU is located in the central equipment room of the neighborhood; in FTTB (Fiber To The Building), the ONU is placed in the junction box in the hallway; in FTTH (Fiber To The Home), the ONU is installed at the user's home.


ONT, or Optical Network Terminal, represents the very end unit in the FTTH network and is commonly referred to as an "optical modem," similar to an xDSL modem. ONT is the optical network terminal applied to the end user, while ONU represents the optical network unit, which may have other networks between it and the end user. The ONT is a component of the ONU.





The OLT serves as the management end, and the ONU is the terminal end. The activation of ONU services is carried out by the OLT, establishing a master-slave relationship between them. Multiple ONUs can be connected to one OLT through a splitter.PON optical transceiver modules find wide-ranging applications. They are extensively used in various fiber access networks, including EPON, GPON, XG-PON, and 10G PON. These modules provide high-speed and reliable fiber optic transmission and broadband access for different scenarios such as residential, enterprise, and municipal networks.


For more information about the EPON, GPON, XG-PON, and 10G PON optical transceiver module and its revolutionary impact on data communication, please visit [company website or contact sales<].
