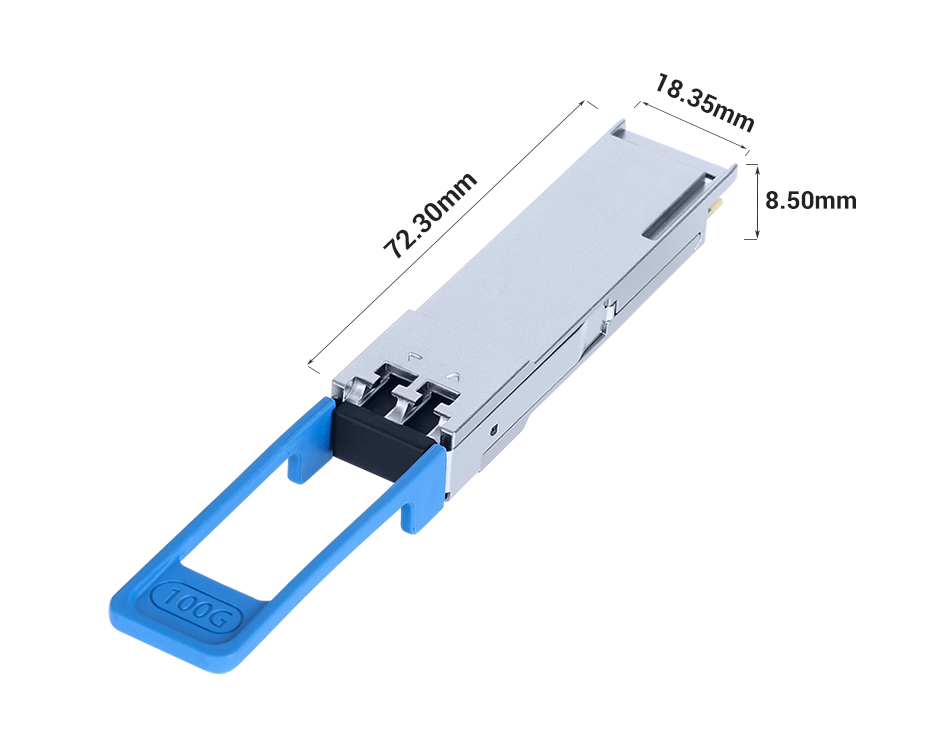

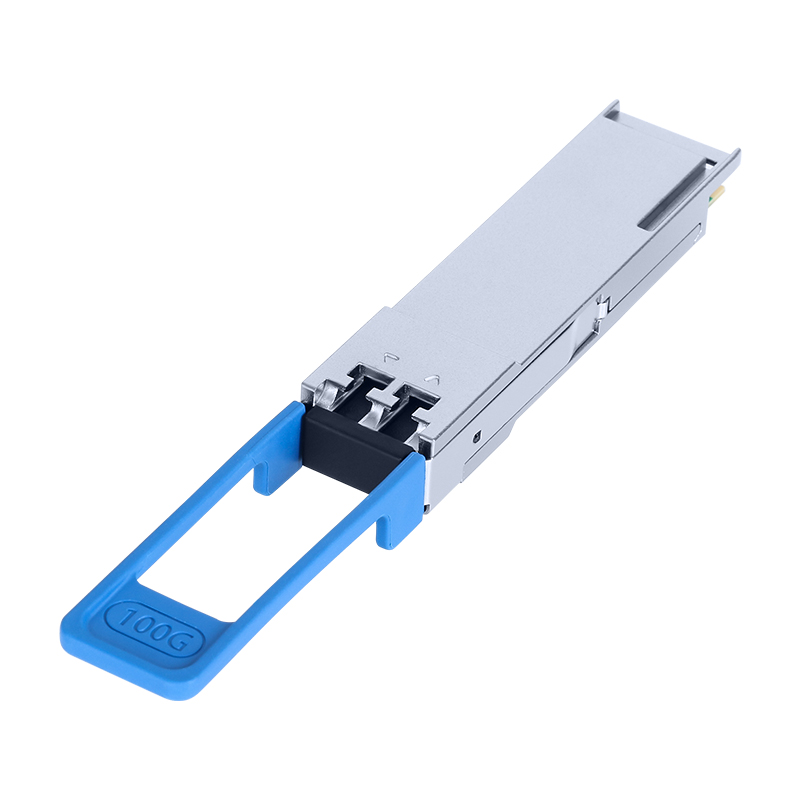

Mellanox® QSFP28-LR4-100/112G Compatible 100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Transceiver SMF 1310nm 10km LC DOM
Mellanox® QSFP28-LR4-100/112G Compatible  100GBASE-LR4 and 112GBASE-OTU4 QSFP28  Transceiver SMF 1310nm 10km LC DOM
Mellanox® QSFP28-LR4-100/112G Compatible  100GBASE-LR4 and 112GBASE-OTU4 QSFP28  Transceiver SMF 1310nm 10km LC DOM

Mellanox® QSFP28-LR4-100/112G Compatible 100GBASE-LR4 and 112GBASE-OTU4 QSFP28 Transceiver SMF 1310nm 10km LC DOM



SKU: QSFP28-LR4-100/112G-FSZ



Product Highlights



Support for 101.3Gb/s and 112Gb/s aggregate bit rates



 Hot-pluggable QSFP28 form factor



 Maximum link length of 10km on Single Mode Fiber (SMF)



 Built-in digital diagnostic functions



 4x28Gb/s DFB-based LAN-WDM transmitter



 Single +3.3V power supply



 RoHS compliant


New Products

This FIBERTOP for Mellanox QSFP28-LR4-100/112G Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet and 4x28G OTN client interfaces throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. Taking BOX+FPC+PCBA separate design, it has great reliability, airtightness and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4 and OTU4 4I1-9D1F standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G Ethernet, 112G OTN OTU4, telecom, service provider applications and 5G wireless network.



Technical Specification

Compatible OEM Mellanox® Compatible With OEM Part Number(s) QSFP28-LR4-100/112G
Transceiver Type LR4 Reach 10km
Wavelength

1294.53 – 1296.59  1299.02 – 1301.09

1303.54 – 1305.63  1308.09 – 1310.19

Form Type QSFP28
Speed Description 103.1Gb/s and 112Gb/s Media SMF
Connector LC  Extinction Ratio >4.0 dB
TX Power -4.3~4.5dBm Receiver Sensitivity -8.6dBm
 Applications

100GBASE-LR4 100G Ethernet

OTN OTU4 4I1-9D1F

Environment

Operating:0 to70C

Storage: -40°C to 85°C




 Compatibility

Mellanox  network switches • Mellanox  network routers
Mellanox  firewalls • Mellanox  security gateway
• Mellanox  fiber media converter • Mellanox  network adapters
• Mellanox  network interface card (NICs)
• Mellanox  NAS




Quality Assurance





Quality Certification

FIBERTOP has strict control over all products' quality, including strict qualification audit for material suppliers, comprehensive quality management system and production process control which comply with the certifications and safety standard. Our products accord with industry standard and mainstream quality certification, such as  ISO 9001, CE, RoHS, CE, REACH, FCC, FDA, CB, UL etc.



  • Excellent quality is the foundation of FIBERTOP' s survival and development.
  • Our R&D team are experts with rich  experience in telecom industry.
  • Our material suppliers are first-class manufacturers in the industry.
  • We have the qualification of OEM for first-class system equipment manufacturers.













FIBERTOP provides after-sales service in strict accordance with Chinese Consumer Protection Law & Product Quality Law of the People's Republic of China. The defects liability period is provided for each product based on the materials, workmanship, frequency of use and service life. The return, replacement and repair services are as follows:






Return within 30 days


 replacement up to 1 year


Up to 5 years warranty


  • Warranty process

Provide relevant information(such as order number, product model, product serial number, product label, etc.)→Describe the problems you meet with→FIBERTOPSFP confirms that the product is complete and still in the warranty period→Send the product back to FIBERTOPSFP repair centre.

Note: The warranty peroid of the repair or replacement product is based on the longer time, either the remaining warranty period of the original product or ninety days after repair.



  • Request a Repair

When your FIBERTOP products need repairing (RMA-Return Material Authorization), please contact your sales consultant to provide timely service for you.



  • Free maintenance items

Guarantee repairing in two years:1. Not man made damage;  2. Product quality issues caused by design defects or material problems



  • The following conditions will not be repaired

• Maintenance center judge as non FIBERTOP products;

The appearance of man-made damage;

End face damage caused by use;

Inapplicable items listed in the warranty statement.



  • Warranty description

FIBERTOP guarantees that all products are subject to strict quality control from raw material procurement to production process. According to the problems raised by customers, if it is confirmed that the defective products are caused by raw materials or production process, FIBERTOP will provide repair or replacement services for free;

The warranty terms do not cover any damage to the product caused by improper installation, accidental disasters, natural disasters, abuse, misuse, inadequate or excessive power supply, incorrect operation, poor environmental conditions, and any unauthorized disassembly, repair or modification;

The warranty also does not apply to second-hand or unauthorized resale of products;

The FIBERTOP warranty only guarantees that customers can enjoy repair and replacement services when they purchase defective or damaged products; FIBERTOP is not obligated to compensate or assume responsibility for module damage and repair needs caused by other equipment in use.

The warranty does not cover problems caused by third-party software or connected related devices, etc.

FIBERTOP always adheres to the concept of "focus, innovation and progress", and is committed to providing every user with reliable products and enthusiastic services.





    Net Weight
0.046kg Gross Weight (with package) 0.32kg






Package of 1~20 pieces
  Step 1 Step 2
  Step 3 Step 4

Package of 21~80 pieces
  Step 1 Step 2
  Step 3 Step 4

Package of 81~160 pieces or more
  Step 1 Step 2
  Step 3 Step 4





DELIVERY METHOD



FIBERTOP has established long-term cooperation with major global logistics companies to provide distribution services to more than 200 countries and regions.



Receiving Region Logistics Type Timeliness
Hong Kong, Macao and Taiwan SF 1~2 days
FedEx IP 1~3 days
FedEx IE 4~6 days
DHL 2~5 days
Overseas Regions UPS 1~3 days
FedEx 1~3 days
DHL 2~5 days





Note: 1. Timeliness is the estimated delivery time, some remote areas delivery may be delayed, the specific delivery time shall prevail;



  2. If you need to specify a logistics company, please contact  customer service staff or your sales representative.











FIBERTOP has 10+ years of R&D technology experience and more than 100 successful cases. With rich experience and R&D strength, we have a complete set of  services from the core system design to the compatibility design of SFP transceivers and  the completion of the final product,  we  can definitely satisfy our customers' needs through providing  customized high-performance products and solutions at the first time.



Product customization





Fs_label.svg

Label

Fs_colour.svg

Colour

Fs_model.svg

Model

Fs_length.svg

Length

Fs_function.svg

Function













Scheme Customization







Business





Rate





Distance





FIBERTOP focuses on customer-oriented solutions and provides technical support.



We can optimize the design based on your original solution, and also provide you with a complete network  solution, related products and technical support.









Mellanox® Compatible 100G QSFP28 100m~80km Transceivers

MMA1B00-C100D 100G SR4 QSFP28 Transceiver MMF 850nm 100m MPO DOM 0-70℃
MMA1L10-CR 100G LR4 QSFP28 Transceiver SMF 1310nm 10km LC DOM 0-70℃
QSFP28-LR4-100/112G Dual Rate 100G~112G LR4 QSFP28 Transceiver SMF 1310nm 10km LC DOM 0-70℃
MMA1L10-CR-80 100G ZR4 QSFP28 Transceiver SMF 1310nm 80km LC DOM 0-70℃
