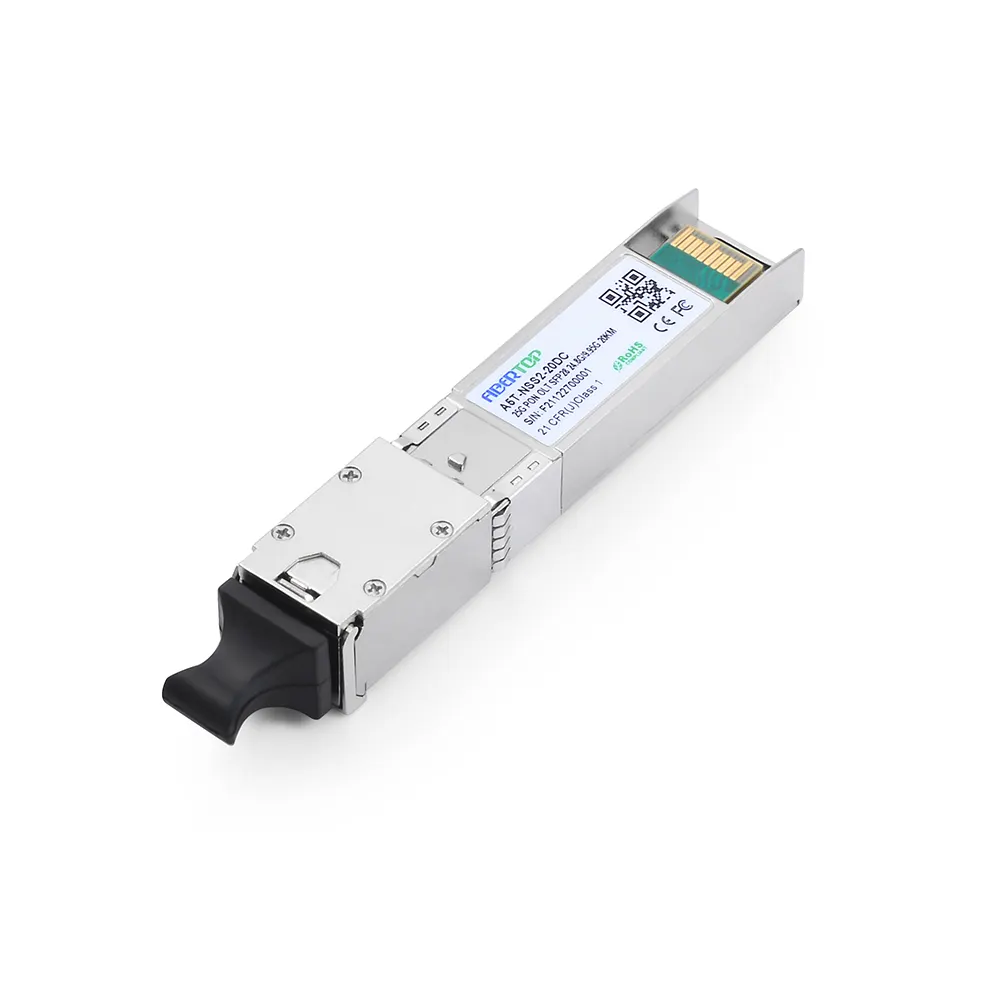

25G SFP28 PON OLT 1358nm/1270nm SC 20km Transceiver

SKU: A5T-NSS2-20DC

Product Highlights

Support ITU_T G.988.5 25 GPON OLT application

Single fiber Bi-directional data links, and the 25G PON upstream signals are in Wavelength Division Multiplex mode

25G PON 1358nm 24.8832G continuous-mode transmitter with EML laser, 1286nm 24.8832G burst-mode receiver with APD_TIA (with reset)&1270nm9.95328G burst-mode receiver with APD_TIA (with reset)

2-wire interface for integrated digital diagnostic monitoring

Digital receiving signal strength indication(RSSI)

SFP28 MSA package with SC/UPC receptacle optical interface

+3.3V power supply

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

25G PON OLT SFP28 1358nm/1270nm SC 20km Transceiver

This 25G SFP28 PON 20km Transceiver is a high performance, cost effective module that supports data-rata up to 24.8832Gbps. It's designed to compliant with 25G PON networks.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	A5T-NSS2-20DC
Transceiver Type	GPON OLT	Reach	20km
Wavelength	1358nm/1270nm	Form Type	SFP28
Speed Description	24.883/9.953Gb/s	Voltage Supply	3.3V
Connector	SC/UPC	Transmitter	EML
Receiver	APD	Environment	Operating:0 to 70°C
Applications	25G PON OLT
