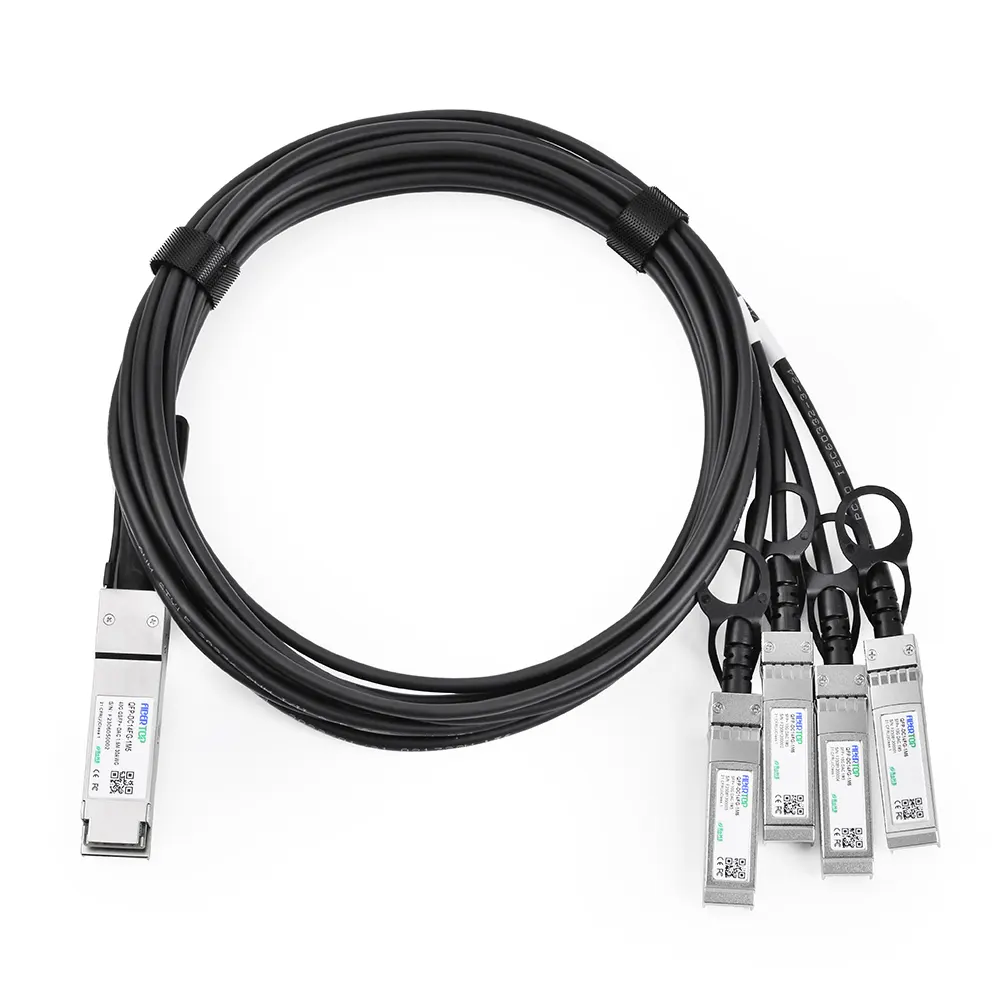

40G QSFP+ to 4x 10G SFP+ 1~5m DAC Cable

SKU: QFP-DC14FG-1M5C

Product Highlights

Connector A: (1) QSFP 40.0 Gbps Rated Connector (SFF-8436 Compliant)

Connector B: (4) SFP+ 10.0 Gbps Rated Connectors (SFF-8431 Compliant)

Economically Links up a QSFP port with an Upstream 10GbE-SFP+ Switch

Protocol agnostic support of 40GbE, QDR InfiniBand, SAS & Fibre Channel

Up to 10.3125 Gbps transfer rate per SFP+ channel (40 Gbps aggregate)

Robust Zinc die-cast SFP+ & QSFP connectors with pull-to-release latching

Bridge the gap between your 10G and 40G capable switches/host adapters

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

40G QSFP+ to 4x 10G SFP+ 1~5m DAC Cable manufacturer

40G QSFP+ to 4x 10G SFP+ direct attach passive copper cable are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP+ and SFP+ equipment connections. These cables are used for 40GbE and Infniband standards, to maximize performance. QSFP+ are designed to meet emerging data center and high performance computing application needs for a high density cabling interconnect system capable of delivering an aggregate data bandwidth of 40Gb/s. This interconnect system is fully compliant with existing industry standard specifications such as the QSFP MSA and IBTA (InfiniBand Trade Association). The QSFP+ cables support the bandwidth transmission requirements as defined by IEEE 802.3ba (40 Gb/s) and Infiniband QDR ( 4x10 Gb/s per channel) specifications.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	QFP-DC14FG-1M5C
Connector Type	QSFP+ to 4x 10G SFP+	Length	1m
Minimum Bend Radius	21mm	Wire AWG	30AWG
Max Data Rate	40G	Multi Rate	multi-rate
Spec. P/A	Passive	Spec. E/M	EEPROM
Jacket Material	OFNP	Spec. Impedance	100 ohm
Applications	Ethernet 10G, 40G InfiniBand 4X SDR, DDR, QDR	Environment	Operating: 0 to 70°C
