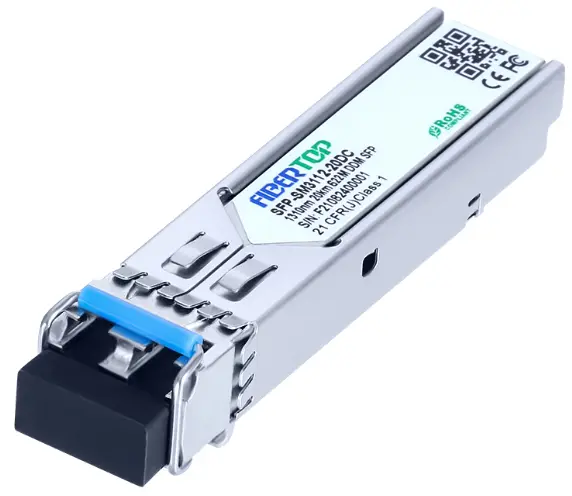

622M SFP STM-4 20km Single-mode 1310nm Transceiver Module

SKU: SFP-SM3112-20DC

Product Highlights

Supports up to 622Mbps bit rates

1310nm FP laser and PIN photo detector, Up to 20km for SMF transmission

Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

622M SFP STM-4 Singlemode 1310nm 20km LC Transceiver Module

The 622M SFP 20km transceivers are high performance, cost effective modules supporting data rate of 622Mbps and 20km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-SM3112-20DC
Transceiver Type	LX	Reach	20km
Wavelength	1310nm	Form Type	SFP
Speed Description	622M	Media	SMF
Connector	LC Duplex	Extinction Ratio	>9.0 dBm
TX Power	-15.0~-8.0 dBm	Receiver Sensitivity	<-28.0 dBm
Applications	622Mbps Optical systems SONET OC-12 Fast Ethernet Other Optical links	Environment	Operating: 0 to 70°C Storage: -40°C to 85°C
