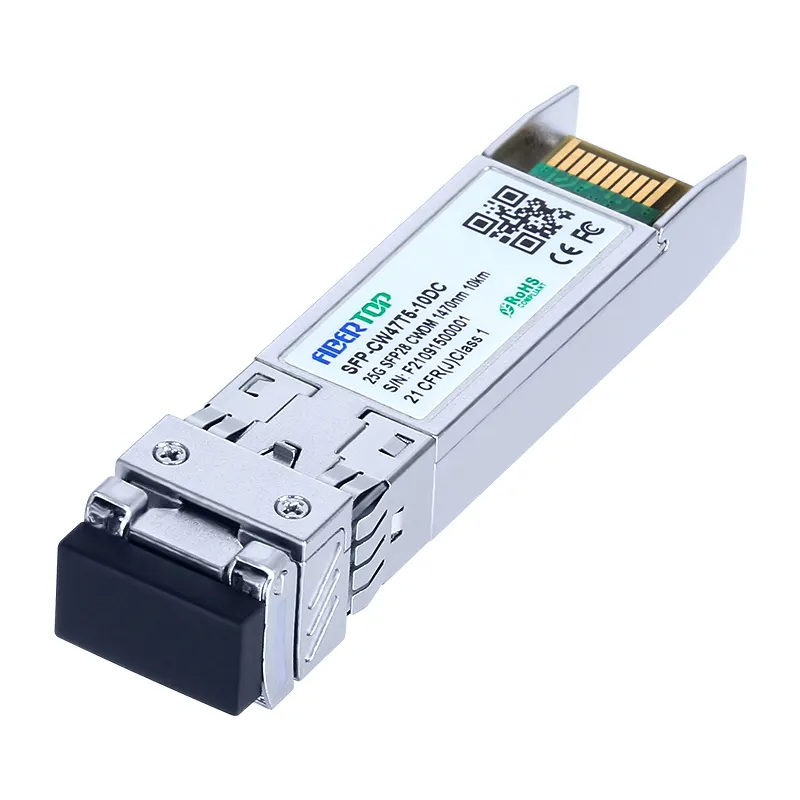

Brocade® SFP28 25G CWDM 10km 25GBASE-LR LC Transceiver 1

Brocade® SFP28 25G CWDM 10km 25GBASE-LR LC Transceiver 2

Brocade® SFP28 25G CWDM 10km 25GBASE-LR LC Transceiver 3

Brocade® SFP28 25G CWDM 10km 25GBASE-LR LC Transceiver

SKU: SFP-CW47T5-10DC

Product Highlights

Supports up to 25.78Gbps bit rates

Hot-pluggable SFP+ footprint

CWDM Cooled EML laser and PIN photodiode

Up to 10km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle

Single +3.3V power supply

Power dissipation <2.3W

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

This Brocade SFP 25GBASE LR Compatible SFP28 transceiver provides 25GBase-CWDM throughput up to 10km over single mode fiber (SMF) using a wavelength of 1470nm via an LC duplex connector. It provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.

Technical Specification

Compatible OEM	Brocade®	Compatible With OEM Part Number(s)	SFP-CW47T5-10DC
Transceiver Type	CWDM	Reach	10km
Wavelength	1470nm/1490nm/1510nm/1530nm 1550nm	Form Type	SFP28
Speed Description	25-Gigabit	Media	SMF
Connector	Duplex LC	Extinction Ratio	>6.0 dB
TX Power	-1~+6 dBm	Receiver Sensitivity	<-14 dBm
Applications	25G Ethernet CPRI 10	Environment	Operating: 0 to 70°C

Compatibility

• Brocade network switches	• Brocade network routers
• Brocade firewalls	• Brocade security gateway
• Brocade fiber media converter	• Brocade network adapters
• Brocade network interface card (NICs)	• Brocade NAS
