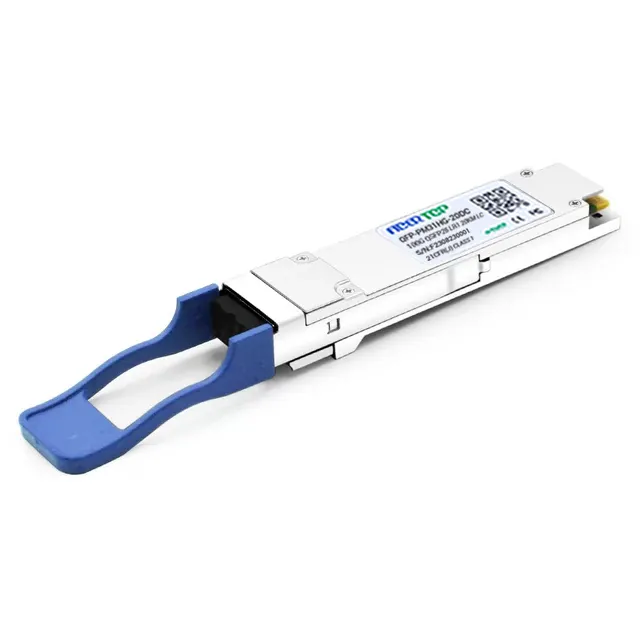

Cisco® QSFP-100G-LR1-S 100GBASE QSFP28 20km Transceiver 1

Cisco® QSFP-100G-LR1-S 100GBASE QSFP28 20km Transceiver 2

Cisco® QSFP-100G-LR1-S 100GBASE QSFP28 20km Transceiver 3

Cisco® QSFP-100G-LR1-S 100GBASE QSFP28 20km Transceiver

SKU: QFP-PM31HG-20DC

Product Highlights

Compliant to 100G Lambda MSA 100G LR1-20

Full-duplex transceiver module

4x25.78125Gbps NRZ electrical interface(CAUI-4)

106.25Gbps PAM4 based on a cooled EML TOSA transmitter

106.25Gbps PAM4 PIN Receiver

4W maximum power dissipation

Maximum link length of 20km on G.652 SMF with KP-FEC

Hot-pluggable QSFP28 form factor

Duplex LC receptacles

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

The 100GBASE QSFP28 optical transceiver, 100G QSFP28 LR1-20(QFP-PM31HG-20DC) is designed for using in 100-Gigabit Ethernet links up to 20km over Single-Mode Fiber (SMF). It is compliant with the QSFP28 MSA ,
100G Lambda 100G LR1-20 and CAUI-4(no FEC)1. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.

The module incorporates 1 channel optical signal, on 1311nm center wavelength, operating at 100Gbps data rate. This module can convert 4 channels of 25Gbps (NRZ) electrical input data to 1 channel of 100Gbps (PAM4) optical signal,

and also can convert 1 channel of 100Gbps (PAM4) optical signal to 4 channels of 25Gbps (NRZ) electrical output data. The electrical interface uses a 38-contact edge type connector. The optical interface uses a Duplex LC connector.

The high performance cooled EML transmitter and high sensitivity PIN receiver provide superior performance for 100Gigabit Ethernet applications up to 20km links.

Technical Specification

Compatible OEM	Cisco®	Compatible With OEM Part Number(s)	QFP-PM31HG-20DC
Transceiver Type	LR1	Reach	20km
Wavelength	1310nm	Form Type	QSFP28
Speed Description	100Gb/s	Media	SMF
Connector	LC	Extinction Ratio	>3.5 dB
TX Power	-0.2~6.6 dBm	Receiver Sensitivity	-7.6 dBm
Applications	100G Lambda 100G LR1-20	Environment	Operating:0 to 70°C Storage: -40°C to 85°C

Compatibility

• Cisco network switches	• Cisco network routers
• Cisco firewalls	• Cisco security gateway
• Cisco fiber media converter	• Cisco network adapters
• Cisco network interface card (NICs)	• Cisco NAS
