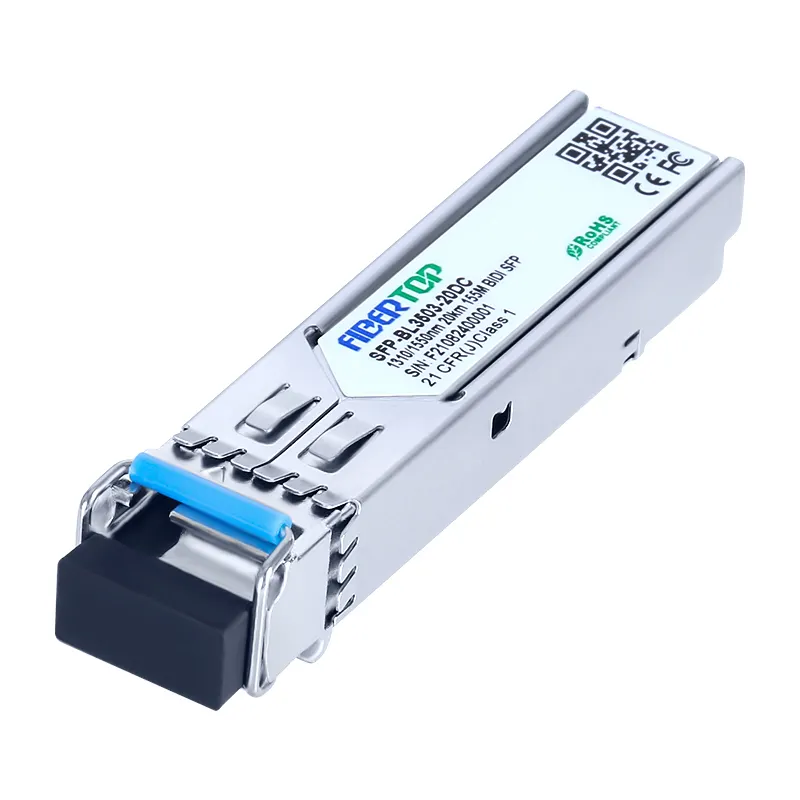

D-Link® SFP 155M BIDI 20km Tx1310nm/Rx1550nm Transceiver 1

D-Link® SFP 155M BIDI 20km Tx1310nm/Rx1550nm Transceiver 2

D-Link® SFP 155M BIDI 20km Tx1310nm/Rx1550nm Transceiver

SKU: SFP-BL3503-20DC

Product Highlights

Supports up to 155Mbps bit rates

Hot-pluggable SFP footprint

1310nm FP laser and PIN photo detector, Up to 20km for SMF transmission

Compliant with SFP MSA and SFF-8472 with single LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

The D-Link-compatible SFP 155M BIDI Tx1310nm/Rx1550nm transceiver provides up to 20km of 100Base-BX throughput over single-mode fiber (SMF) using 1310nm-TX/1550nm-RX wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths. It provides 100BASE Ethernet connectivity options for Fast Ethernet and Data Centers.

Technical Specification

Compatible OEM	D-Link®	Compatible With OEM Part Number(s)	SFP-BL3503-20DC
Transceiver Type	BIDI	Reach	20km
Wavelength	Tx1310nm/Rx1550nm	Form Type	SFP
Speed Description	155M	Media	SMF
Connector	Single LC	Extinction Ratio	> 9.0 dB
TX Power	-14 ~ -8 dBm	Receiver Sensitivity	< -32 dBm
Applications	155Mbps Optical systems Fast Ethernet SONET OC-3 IR1,LR1,LR Other Optical links	Environment	Operating:0°C to 70°C Storage: -40°C to 85°C

Compatibility

• D-Link network switches	• D-Link network routers
• D-Link firewalls	• D-Link security gateway
• D-Link fiber media converter	• D-Link network adapters
• D-Link network interface card (NICs)	• D-Link NAS
