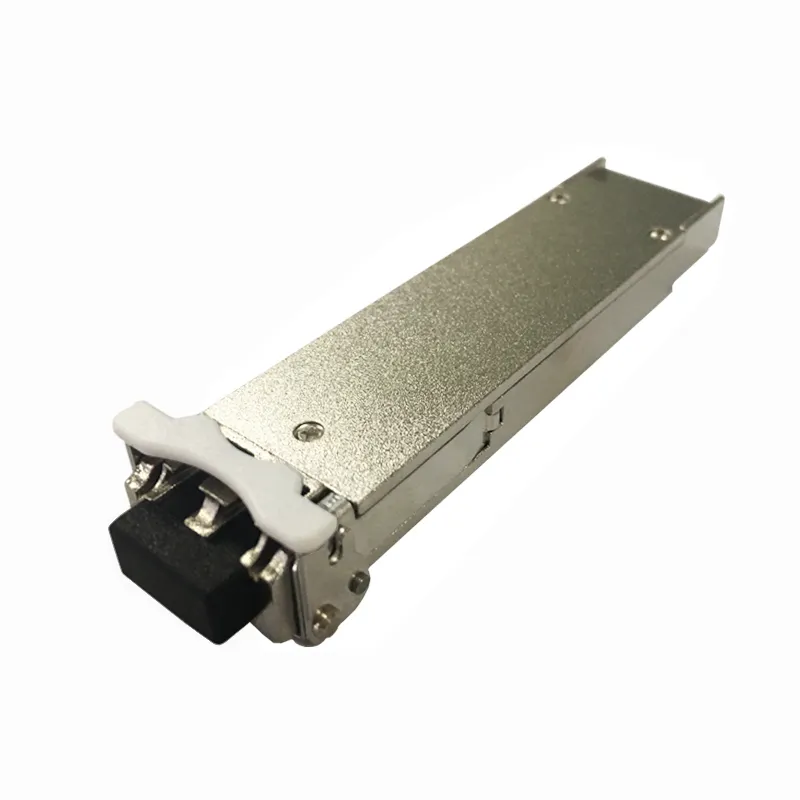

10GBASE-ER 10G XFP Tunable DWDM 50GHZ 40km Transceiver Module

SKU: XFP-TD82TG-40DC

Product Highlights

Support multi protocol from 9.95Gb/s to 11.3Gb/s

Transmission distance of 40km over single mode fiber

DWDM TUNABLE laser transmitter

50GHz ITU-T Grid, C Band Duplex LC connector

2-wire interface for management and diagnostic monitor

XFI electrical interface with AC coupling

Power supply voltages : +3.3V, +5V

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

FIBERTOP 10G XFP Tunable DWDM 50GHZ 40km Optical Module

XFP-TD82TG-40DC Small Form Factor 10GBASE-ER 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. The high performance cooled DWDM TUNABLE transmitter and high sensitivity APD receiver provide superior performance for SONET/SDH, 10G FC and Ethernet applications up to 40km optical links.

The transceiver contain a C-band-tunable integrated Mach-Zehnder (MZ) laser, enabling data transmission over single-mode ﬁber through an industry-standard LC connector. On the receiver side, the 10Gbps data stream is recovered from an APD/ trans-impedance ampliﬁer, and passed to an output driver. This module features a hot-pluggable electrical interface.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	XFP-TD82TG-40DC
Transceiver Type	DWDM	Reach	40km
Wavelength	Tunable DWDM	Form Type	XFP
Speed Description	10Gb/s	Media	SMF
Connector	LC	Extinction Ratio	>8.2 dBm
TX Power	0~+5.0 dBm	Receiver Sensitivity	<-23.0 dBm
Applications	Fully Tunable50GHz DWDM XFP 10GBASE-EW/ER 10GEthernet 10GB Fibre Channel	Environment	Operating:0 to 70°C Storage: -40°C to 85°C

λC Wavelength Guide

ITU Channel Product Code	Frequency(THz)	Wavelength	ITU Channel Product Code	Frequency(THz)	Wavelength
1	191.15	1568.36	51	193.65	1548.11
2	191.20	1567.95	52	193.70	1547.72
3	191.25	1567.54	53	193.75	1547.32
4	191.30	1567.13	54	193.80	1546.92
5	191.35	1566.72	55	193.85	1546.52
6	191.40	1566.31	56	193.90	1546.12
7	191.45	1565.90	57	193.95	1545.72
8	191.50	1565.50	58	194.00	1545.32
9	191.55	1565.09	59	194.05	1544.92
10	191.60	1564.68	60	194.10	1544.53
11	191.65	1564.27	61	194.15	1544.13
12	191.70	1563.86	62	194.20	1543.73
13	191.75	1563.45	63	194.25	1543.33
14	191.80	1563.05	64	194.30	1542.94
15	191.85	1562.64	65	194.35	1542.54
16	191.90	1562.23	66	194.40	1542.14
17	191.95	1561.83	67	194.45	1541.75
18	192.00	1561.42	68	194.50	1541.35
19	192.05	1561.01	69	194.55	1540.95
20	192.10	1560.61	70	194.60	1540.56
21	192.15	1560.20	71	194.65	1540.16
22	192.20	1559.79	72	194.70	1539.77
23	192.25	1559.39	73	194.75	1539.37
24	192.30	1558.98	74	194.80	1538.98
25	192.35	1558.58	75	194.85	1538.58
26	192.40	1558.17	76	194.90	1538.19
27	192.45	1557.77	77	194.95	1537.79
28	192.50	1557.36	78	195.00	1537.40
29	192.55	1556.96	79	195.05	1537.00
30	192.60	1556.55	80	195.10	1536.61
31	192.65	1556.15	81	195.15	1536.22
32	192.70	1555.75	82	195.20	1535.82
33	192.75	1555.34	83	195.25	1535.43
34	192.80	1554.94	84	195.30	1535.04
35	192.85	1554.54	85	195.35	1534.64
36	192.90	1554.13	86	195.40	1534.25
37	192.95	1553.73	87	195.45	1533.86
38	193.00	1553.33	88	195.50	1533.47
39	193.05	1552.93	89	195.55	1533.07
40	193.10	1552.52	90	195.60	1532.68
41	193.15	1552.12	91	195.65	1532.29
42	193.20	1551.72	92	195.70	1531.90
43	193.25	1551.32	93	195.75	1531.51
44	193.30	1550.92	94	195.80	1531.12
45	193.35	1550.52	95	195.85	1530.72
46	193.40	193.40	96	195.90	1530.72
47	193.45	193.45	97	195.95	1529.94
48	193.50	193.50	98	196.00	1529.55
49	193.55	193.55	99	196.05	1529.16
50	193.60	193.60
