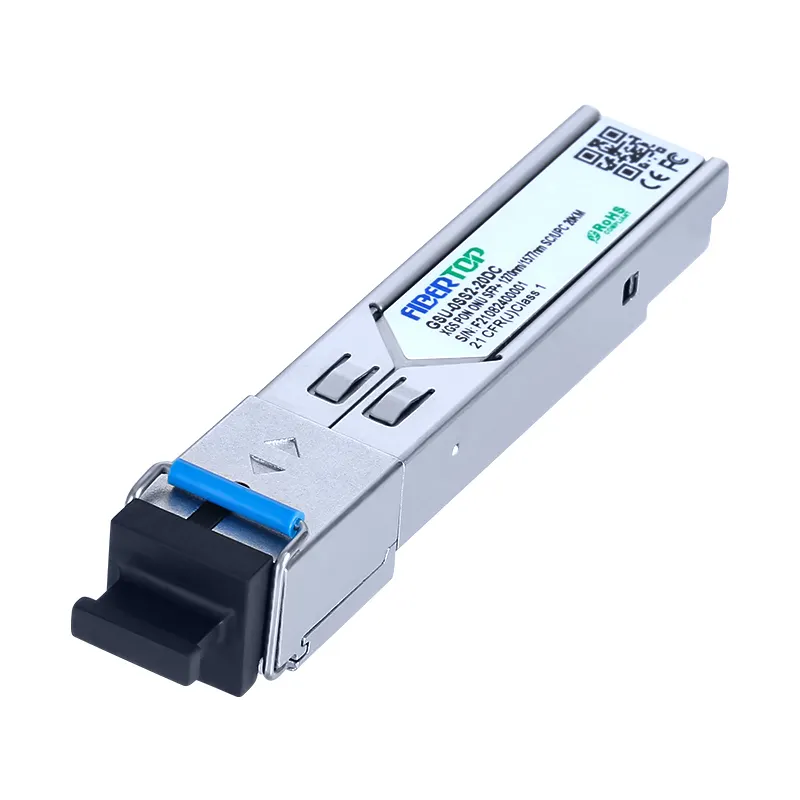

10G XGS-PON ONU SFP+ 1270/1577nm 20km SC/UPC Transceiver 1

10G XGS-PON ONU SFP+ 1270/1577nm 20km SC/UPC Transceiver 2

10G XGS-PON ONU SFP+ 1270/1577nm 20km SC/UPC Transceiver

SKU: GSU-0SS2-20DC

Product Highlights

1270nm Burst-mode 9.953Gb/s DFB transmitter

1577nm continuous-mode 9.953Gb/s APD receiver

Complies with ITU-T G.9807.1 Class N2

Digital Diagnostic Monitoring (DDM)

SFP+ package with single mode SC/UPC receptacle connector

LVTTL for Tx disable input and Tx_fault output

LVTTL for burst signal input and signal LOS output

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

10G XGS-PON ONU SMF 1270/15770nm 20km SC/UPC DOM Transceiver

This 10G XGS-PON ONU 20km high-performance transceiver module is designed for single-fiber communications, meeting ITU-T G.9807.1 Class N2 requirements for optical line terminal applications.

Transmitter：The 1270nm DFB transmitter features automatic power control (APC) and temperature compensation, ensuring stable optical power and extinction ratio across the entire operating temperature range. It complies with Class 1 eye safety standards (IEC60825 and CDRH).

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	GSU-0SS2-20DC
Transceiver Type	XGS-PON ONU	Reach	20km
Wavelength	1270/1577nm	Form Type	SFP+
Speed Description	10-Gigabit	Media	SMF
Connector	SC/UPC	Extinction Ratio	>6.5 dB
TX Power	5 ~ 9 dBm	Receiver Sensitivity	<-29 dBm
Applications	10-Gigabit Symmetric Passive Optical Network (XGS-PON) ONU	Environment	Operating:0 to 70°C
