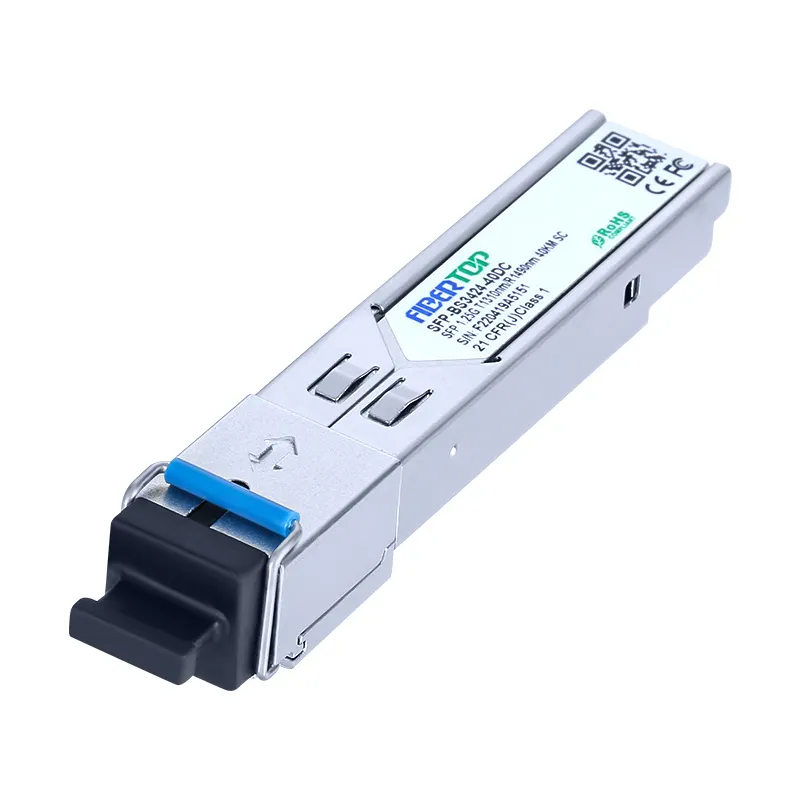

1.25G SFP BIDI 1000BASE-BX 80km SC Tx1310nm/Rx1490nm Transceiver Module 1

1.25G SFP BIDI 1000BASE-BX 80km SC Tx1310nm/Rx1490nm Transceiver Module 2

1.25G SFP BIDI 1000BASE-BX 80km SC Tx1310nm/Rx1490nm Transceiver Module

SKU: SFP-BS3424-40DC

Product Highlights

Support for 1.25Gbps data rate

Hot-pluggable SFP footprint

1310nm DFB laser and PIN photo detector, up to 40m for SMF transmission

Compliant with SFP MSA and SFF-8472 with single SC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

FIBERTOP 1.25G BIDI SFP Transceiver SMF Tx 1310nm/Rx 1490nm 40km Single SC DOM

This 1.25G SFP BIDI 1000BASE-BX transceiver is high performance, cost effective modules supporting data rate of 1.25Gbps and 40km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit.

All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-BS3424-40DC
Transceiver Type	BX	Reach	40km
Wavelength	Tx 1310nm/Rx 1490nm	Form Type	SFP
Speed Description	1.25-Gigabit	Media	SMF
Connector	Single SC	Extinction Ratio	>9 dBm
TX Power	-5~0 dBm	Receiver Sensitivity	<-24 dBm
Applications	1.25Gbps Optical systems Gigabit Ethernet 1.063Gbps Fiber Channel Other Optical links	Environment	Operating:0 to 70°C Storage: -40°C to 85°C
