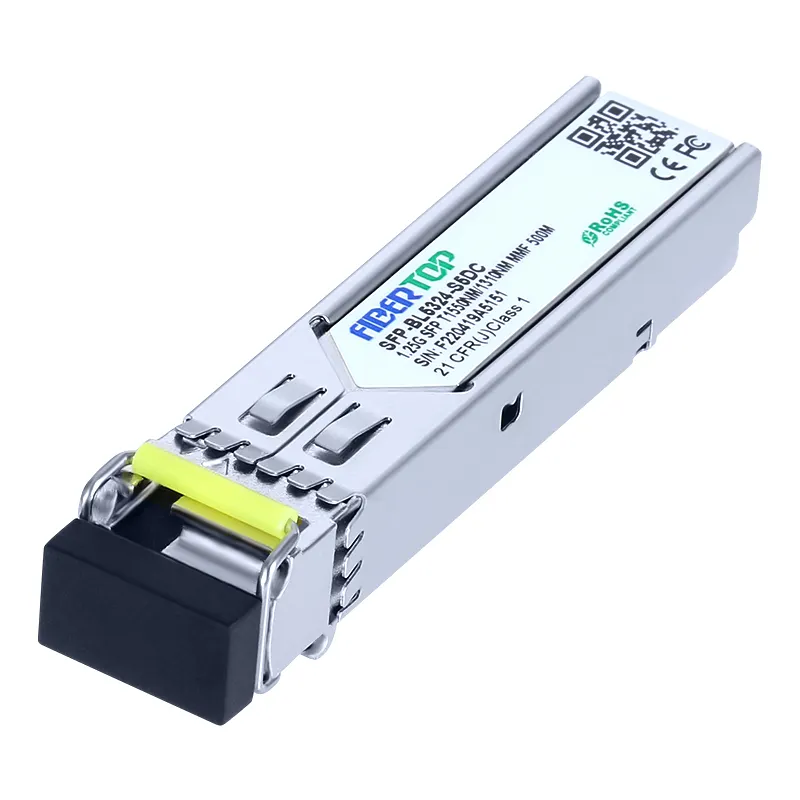

1.25G SFP BIDI 1000BASE 550m Tx1550nm/Rx1310nm Transceiver Module 1

1.25G SFP BIDI 1000BASE 550m Tx1550nm/Rx1310nm Transceiver Module 2

1.25G SFP BIDI 1000BASE 550m Tx1550nm/Rx1310nm Transceiver Module

SKU: SFP-BL5324-S5DC

Product Highlights

Support for 1.25Gbps data rate

Hot-pluggable SFP footprint

1550nm FP laser and PIN photo detector, up to 550m for MMF transmission

Compliant with SFP MSA and SFF-8472 with single LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

1.25G SFP BIDI 1000BASE Transceiver MMF Tx 1550nm/Rx 1310nm 550m

This 1.25G SFP BIDI 1000BASE transceiver is high performance, cost effective modules supporting data rate of 1.25Gbps and 550m transmission distance with MMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit.

All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-BL5324-S5DC
Transceiver Type	BX	Reach	550m
Wavelength	Tx 1550nm/Rx 1310nm	Form Type	SFP
Speed Description	1.25-Gigabit	Media	SMF
Connector	Single LC	Extinction Ratio	>6 dBm
TX Power	-14~-8 dBm	Receiver Sensitivity	<-23 dBm
Applications	1.25Gbps Optical systems Gigabit Ethernet 1.063Gbps Fiber Channel Other Optical links	Environment	Operating:0 to 70°C Storage: -40°C to 85°C
