Fibertop - Global Optical Module Manufacturer -HPC,Data Center

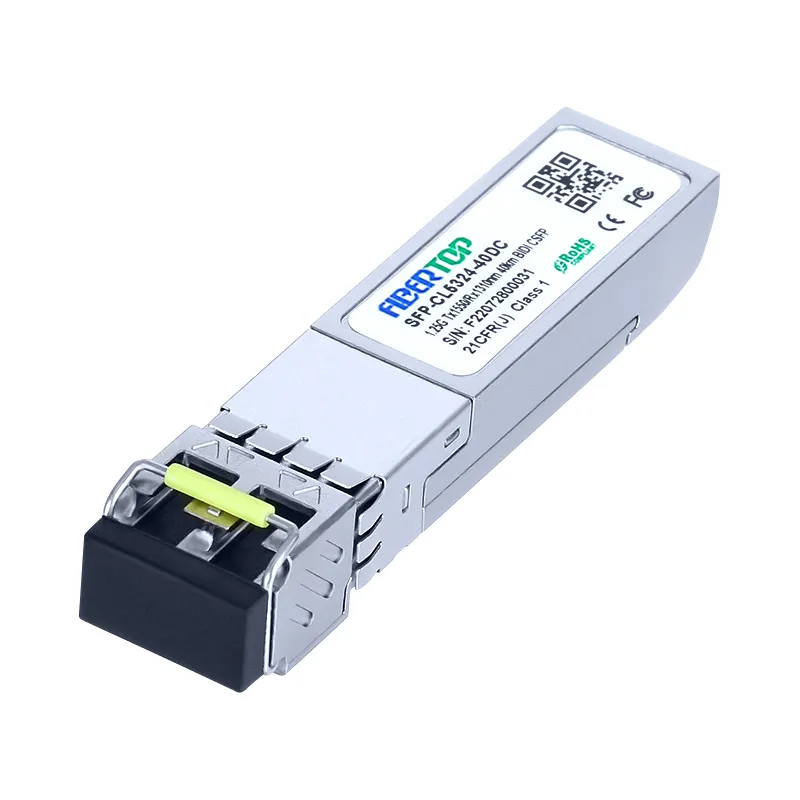

1.25G CSFP BIDI 40km Tx1550nm/Rx1310nm Transceiver

SKU: SFP-CL5324-40DC

Product Highlights

Two Bi-Directional transceivers in one SFP package

Up to 1.25Gb/s data links, Duplex LC connector

1490nm DFB laser transmitter

Hot-pluggable SFP footprint

RoHS compliant and Lead Free

Up to 40Km on 9/125um SMF

Single +3.3V power supply

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

1.25G-CSFP-BIDI Transceiver SMF Tx 1550nm/Rx 1310nm 40km Double BIDI LC DOM

ESD to the Electrical PINs: compatible with MIL-STD-883 Method 3015;

ESD to the Single LC Receptacle: compatible with IEC 61000-4-2;

Immunity compatible with IEC 61000-4-3;

EMI compatible with FCC Part 15 Class B EN55022 Class B (CISPR 22B) VCCI Class B;

Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC) 60825-1,2;

RoHS compliant with RoHS 2 (2011/65/EU).

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-CL5324-40DC
Transceiver Type	Double BX	Reach	40km
Wavelength	Tx 1550nm/Rx 1310nm	Form Type	CSFP
Speed Description	1.25-Gigabit	Media	SMF
Connector	Double BIDI LC	Extinction Ratio	>6.0 dBm
TX Power	-5~0 dBm	Receiver Sensitivity	<-24 dBm
Applications	Gigabit Ethernet Fiber Channel	Environment	Operating:0 to 70°C Storage: -40°C to 85°C
