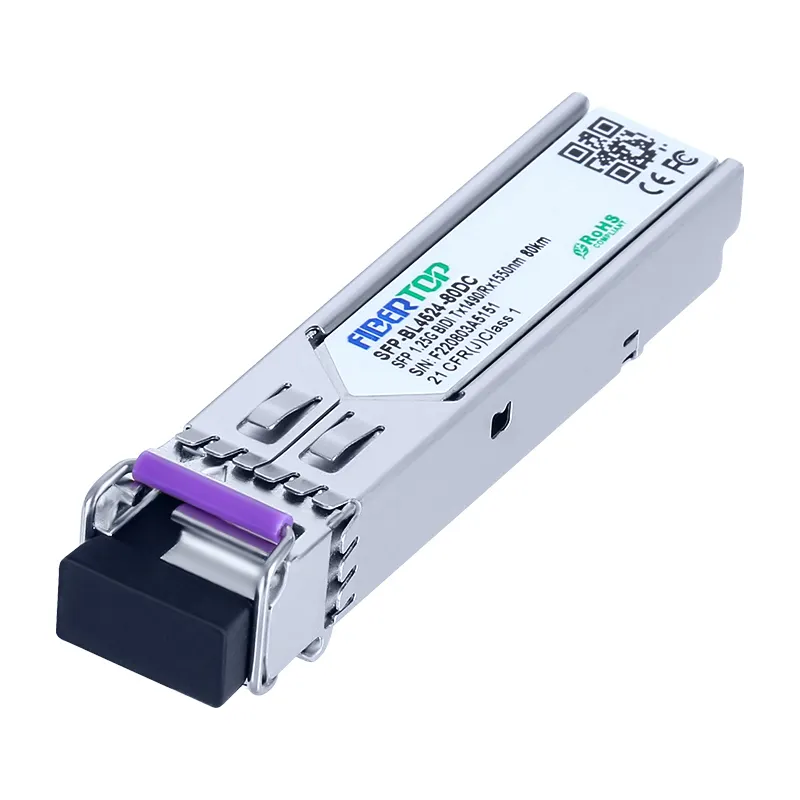

1.25G-SFP-80km BIDI 1000BASE-ZX TX1490nm/RX1550nm Transceiver 1

1.25G-SFP-80km BIDI 1000BASE-ZX TX1490nm/RX1550nm Transceiver 2

1.25G-SFP-80km BIDI 1000BASE-ZX TX1490nm/RX1550nm Transceiver

SKU: SFP-BL4524-80xx

Product Highlights

Supports up to 1.25Gbps bit rates

Hot-pluggable SFP footprint

1490nm DFB laser and PIN photo detector, Up to 80km for SMF transmission

Compliant with SFP MSA and SFF-8472 with single LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

FIBERTOP 1.25Gbps SFP Transceiver Single Mode 1490nm TX / 1550nm RX 80km Reach

The 1.25G-SFP-80km BIDI transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 80km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-BL4524-80XX
Transceiver Type	BIDI	Reach	80km
Wavelength	1490nm Tx/1550nm Rx	Form Type	SFP
Speed Description	1.25-Gigabit	Media	SMF
Connector	Simplex LC	Extinction Ratio	>9.0 dBm
Average Output Power	0~5 dBm	Receiver Sensitivity	<-26 dBm
Applications	1.25Gbps Optical systems Gigabit Ethernet 1.063Gbps Fiber Channel Other Optical links	Environment	Operating:0 to 70°C Storage: -40°C to 85°C
