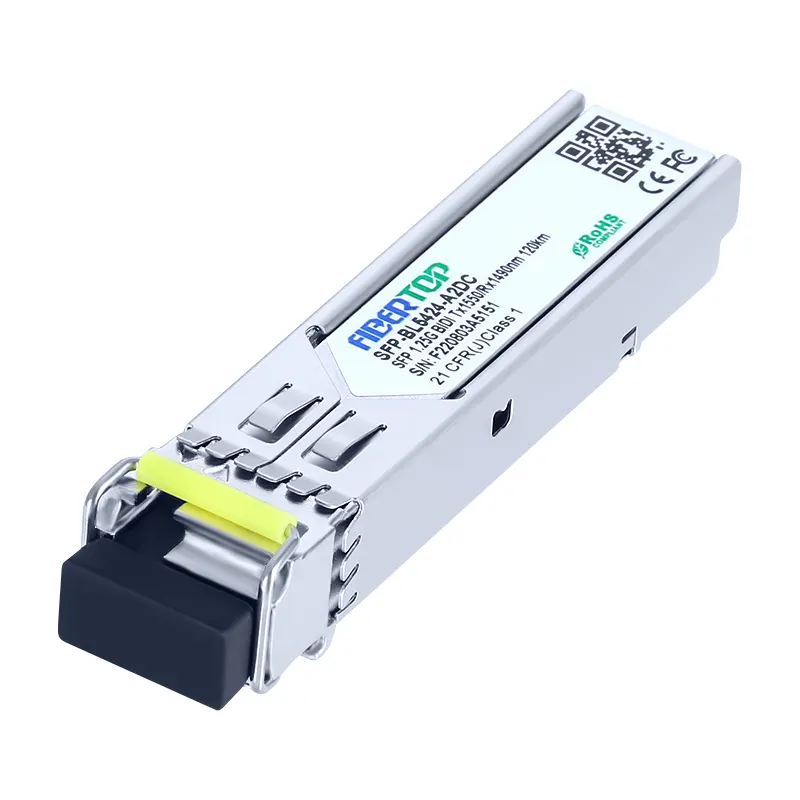

1.25G SFP 1000BASE BIDI 100km TX1550nm/RX1490nm Transceiver 1

1.25G SFP 1000BASE BIDI 100km TX1550nm/RX1490nm Transceiver 2

1.25G SFP 1000BASE BIDI 100km TX1550nm/RX1490nm Transceiver

SKU: SFP-BL5424-A0xx

Product Highlights

Supports up to 1.25Gbps bit rates

Hot-pluggable SFP footprint

1550nm DFB laser and PIN photo detector, Up to 100km for SMF transmission

Compliant with SFP MSA and SFF-8472 with single LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

FIBERTOP 1.25Gbps SFP Transceiver Single Mode 1550nm TX / 1490nm RX 100km Reach

The 1.25G SFP 1000BASE BIDI 100km transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 100km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a super trans-impedance preamplifier (Super-TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-BL5424-A0xx
Transceiver Type	BIDI	Reach	100km
Wavelength	Tx1550nm/Rx1490nm	Form Type	SFP
Speed Description	1.25G	Media	SMF
Connector	Simplex LC	Extinction Ratio	> 9.0 dB
TX Power	0 ~ 5 dBm	Receiver Sensitivity	< -28 dBm
Applications	1.25Gbps Optical systems Gigabit Ethernet 1.063Gbps Fiber Channel Other Optical links	Environment	Operating:0°C to 70°C Storage: -40°C to 85°C
