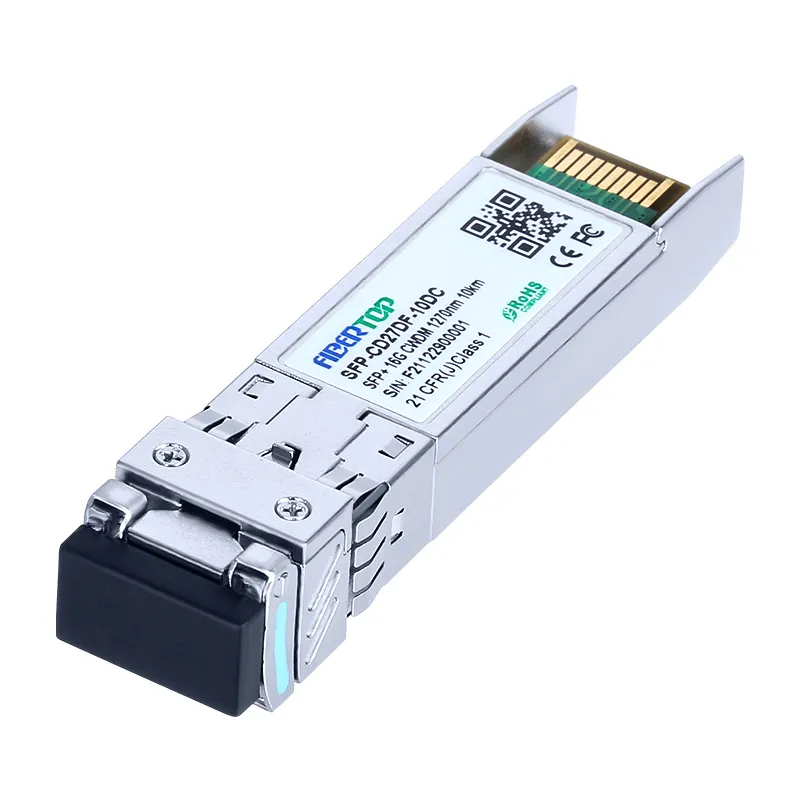

16G Fiber Channel CWDM SFP+ LR 1270nm~1370nm 10km Transceiver 1

16G Fiber Channel CWDM SFP+ LR 1270nm~1370nm 10km Transceiver 2

16G Fiber Channel CWDM SFP+ LR 1270nm~1370nm 10km Transceiver 3

16G Fiber Channel CWDM SFP+ LR 1270nm~1370nm 10km Transceiver

SKU: SFP-CDxxDF-10DC

Product Highlights

Supports up to 14.025Gbps bit rates

Hot-pluggable SFP+ footprint

CWDM DFB laser and PIN photodiode, Up to 10km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

16G Fiber Channel CWDM SFP+ LRSMF 1270nm~1370nm 10km LC DOM Transceiver Module

The 16G Fiber Channel CWDM SFP+ LR transceivers are high performance, cost effective modules supporting data rate of 14.025Gbps and 10km transmission distance with SMF. The transceiver consists of three sections: a uncooled DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-CDxxDF-10DC
Transceiver Type	Fiber Channel CWDM	Reach	10km
Wavelength	12710nm/1291nm/1311nm 1331nm/1351nm/1371nm	Form Type	SFP+
Speed Description	14-Gigabit	Media	SMF
Connector	LC	Extinction Ratio	>3.5 dBm
TX Power	-1~+6 dBm	Receiver Sensitivity	<-12 dBm
Applications	4.25/8.5/14.025G Fibre channel	Environment	Operating:0 to 70°C
