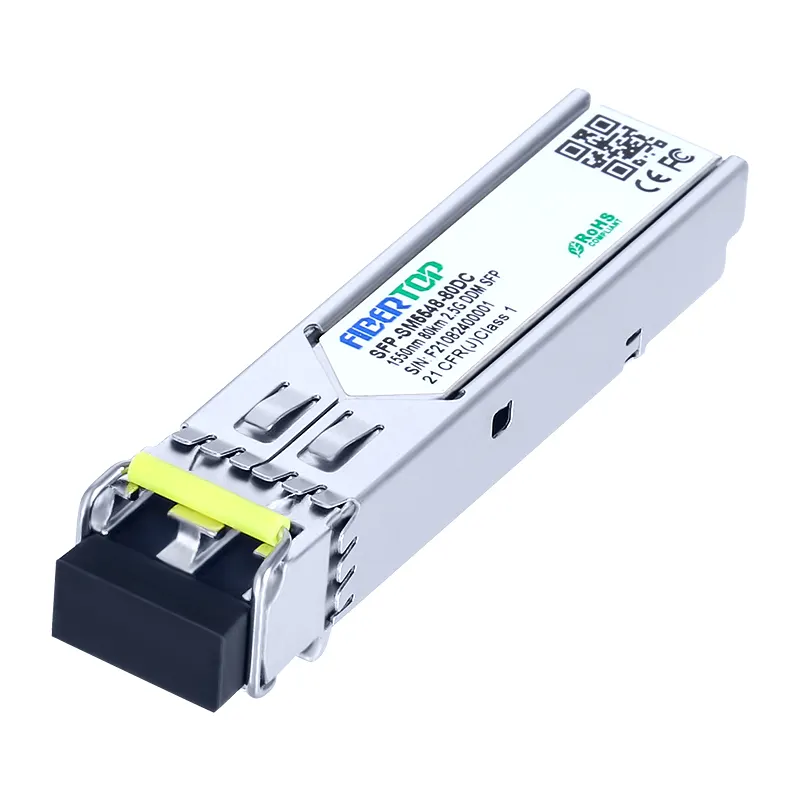

2.5G SFP ZR 1550nm 80km LC Transceiver Module 1

2.5G SFP ZR 1550nm 80km LC Transceiver Module 2

2.5G SFP ZR 1550nm 80km LC Transceiver Module

SKU: SFP-SM5548-80DC

Product Highlights

Support for 2.5Gbps data rate

Hot-pluggable SFP footprint

DFB laser and PIN photo detector, up to 80km for SMF transmission

Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

SFP-2.5G-ZR Transceiver 1550nm 80km LC DOM

This SFP-2.5G-ZR transceiver is high performance, cost effective modules supporting data rate of 2.5Gbps and 80km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit.

All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-SM5548-80DC
Transceiver Type	ZX	Reach	80km
Wavelength	1550nm	Form Type	SFP
Speed Description	2.5-Gigabit	Media	SMF
Connector	LC	Extinction Ratio	>8.2 dBm
TX Power	0~5 dBm	Receiver Sensitivity	<-26 dBm
Applications	2.5Gbps Optical systems Fiber Channel Other Optical links	Environment	Operating:0 to 70°C Storage: -40°C to 85°C
