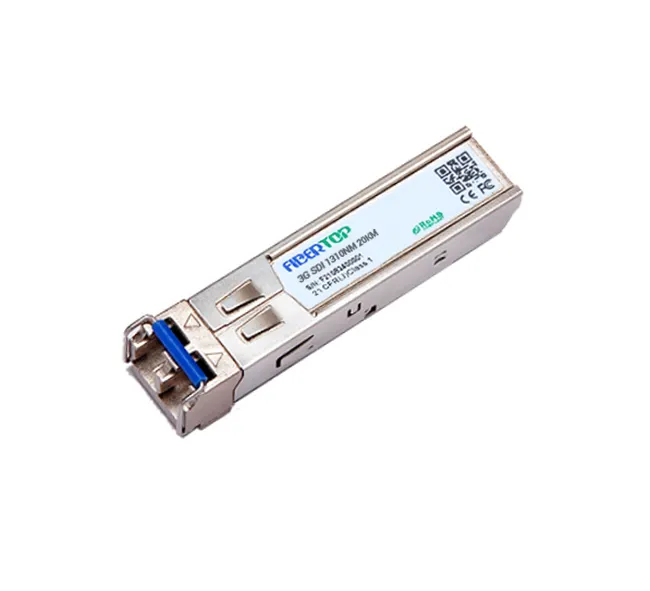

SFP 3Gbps Video SDI 1310nm 20km Transceiver

SKU: SFP-SM313G-20DC

Product Highlights

HD-SDI /SD-SDI /3G-SDI SFP Transceiver available

SMPTE 297-2006 Compatible

Metal enclosure for Lower EMI

1310nm DFB laser and PIN photodetector

Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Compatible with RoHS

Standard : 0 to +70°C Industrial : -40 to +85°C

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

SFP 3Gbps Video SDI 20km 1310nm LC Transceiver

The SFP 3G 20km transceivers are high performance, cost effective modules supporting dual data-rate of 3Gbps and 20km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-SM313G-20Dx
Form Factor	Transmitter & Receiver	Reach	20km
Wavelength	1310nm	Form Type	SFP
Speed Description	3.0-Gigabit	Media	SMF
Connector	Doubel LC	Extinction Ratio	>5.0 dBm
TX Power	-5.0~0 dBm	Receiver Sensitivity	SD-SDI<-16 dBm HD-SDI<-15 dBm 3G-SDI<-14 dBm
Applications	SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces HDTV/SDTV Service Interfaces.	Environment	Operating:0 to 70°C Storage: -40°C to 85°C
