CFP2 400G DCO 600km DWDM Transceiver

SKU: CP2-DCQG-MRC

Product Highlights

Operating rate up to 425 Gbps

PM-QPSK (200G) and PM-16QAM (200G / 400G) and PM-16QAM PS (200G) modulation formats

100GE, 200GE, 400GE and OTU4 / OTUCn services

OTL4.4, FOIC1.4, CAUI-4 and FOIC1.2 electrical interfaces

Near-end / remote-end data loopback

CFP2 MSA Hardware Specification 1.0 with modifications compliant

CFP MSA Management Interface Specification 2.2 with modifications compliant

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

400G CFP2-DCO DWDM Digital Coherent Optical Module Transceiver

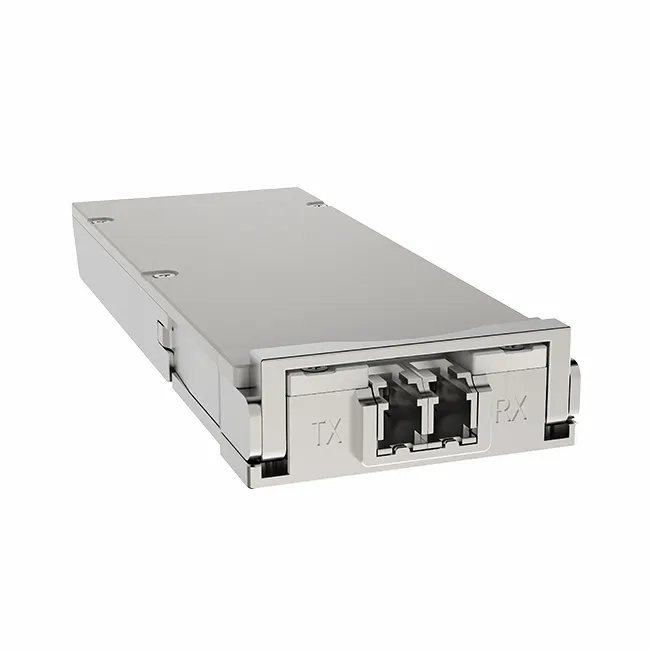

The CFP2 400G DCO 600km coherent optical module uses a 104-pin CFP2-MSA electrical connector for connecting the host card. The optical module consists of three functional parts: TX module, RX module and control module. All the control interface pins are provided by an internal microcontroller. This microcontroller can also be used for modulator control, software management, and alarm / performance event reporting.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	CP2-DCQG-MRC
Transceiver Type	Coherent DWDM DCO	Reach	/
Wavelength	C-Band DWDM Tunable	Form Type	CFP2
Speed Description	400G	Media	/
Connector	LC	Extinction Ratio	/
TX Power	/	Receiver Sensitivity	/
Applications	host system for MAN DWDM applications	Environment	Operating: 0 to 70°C
