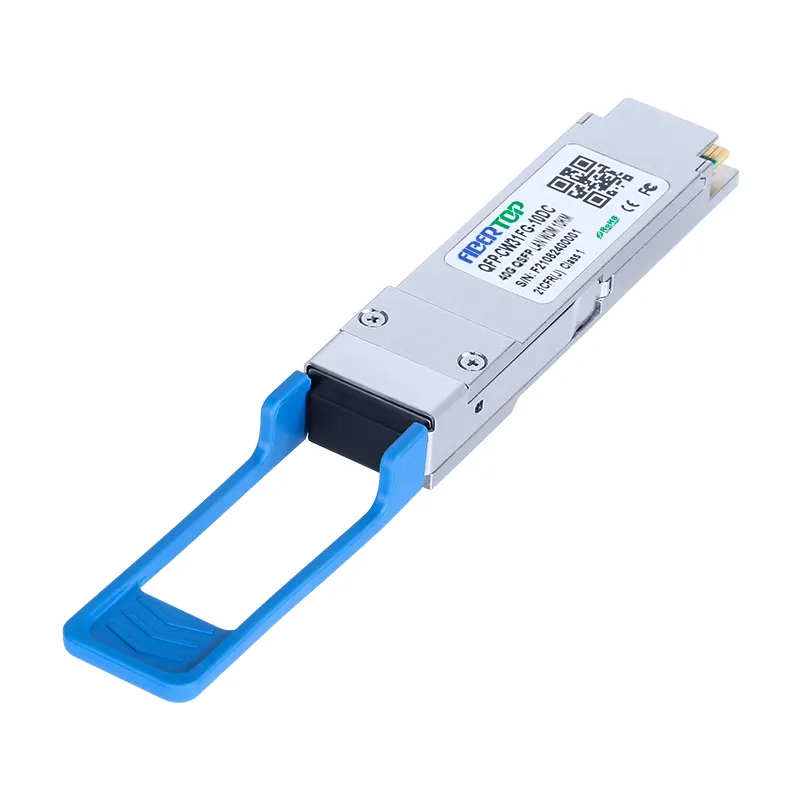

FIBERTOP 40G LR4 QSFP+ SMF 1310nm 10km LC DOM Transceiver Module 1

FIBERTOP 40G LR4 QSFP+ SMF 1310nm 10km LC DOM Transceiver Module 2

FIBERTOP 40G LR4 QSFP+ SMF 1310nm 10km LC DOM Transceiver Module

SKU: QFP-CW31FG-10DC

Product Highlights

4 CWDM lanes MUX/DEMUX design

Transmission data rate up to 11.3Gbps per channel

SMF LC duplex connector

Hot Pluggable QSFP+ form factor

1310nm DFB laser and PIN photodiode ,Up to 10km transmission

Compatible with RoHS

Single +3.3V power supply

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Compatible With OEM Part Number(s)

QFP-CW31FG-10DC

Compatible OEM

FIBERTOP

Transceiver Type

LR4

Form Type

QSFP+

Speed Description

40-Gigabit

Reach

10km

Wave length

1271/1291/1311/1331nm

Media

SMF

Connector

TXPower

-7~+2.3dBm

Extinction Ratio

>3.5dBm

Receiver Sensitivity

<-13.7dBm

FIBERTOP 40G LR4 QSFP+ SMF 1310nm 10km LC DOM Transceiver Module

The QSFP+ LR4 transceivers are high performance, cost effective modules supporting data rate of 40Gbps and 10km transmission distance with SMF. The transceiver consists of three sections: 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission; on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data; and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with 40GBASE-LR4 of IEEE802.3ba standard and SFF-8436 specification.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	QFP-CW31FG-10DC
Transceiver Type	LR4	Reach	10km
Wavelength	1271/1291/1311/1331nm	Form Type	QSFP+
Speed Description	40-Gigabit	Media	SMF
Connector	LC	Extinction Ratio	>3.5 dBm
TX Power	-7~+2.3 dBm	Receiver Sensitivity	<-13.7 dBm
Applications	40GBASE-LR4 Ethernet Switch, router and HBAs Data Center Interconnect	Environment	Operating:0 to 70C
