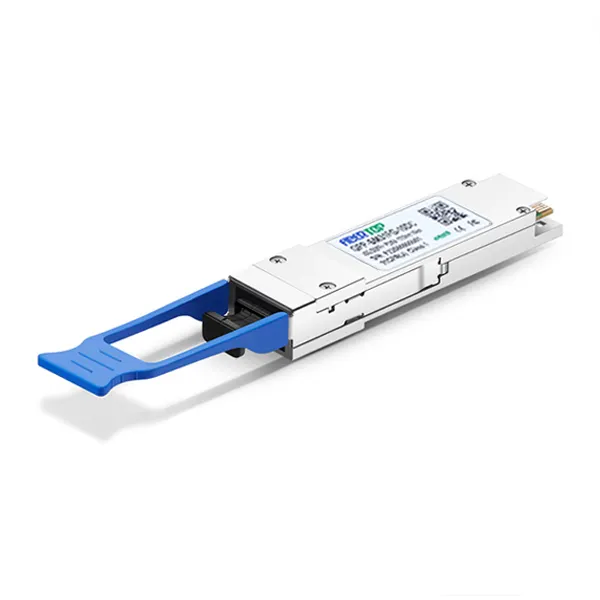

FIBERTOP 40G QSFP+ SMF 1310nm PSM4 10km MPO DOM Transceiver Module 1

FIBERTOP 40G QSFP+ SMF 1310nm PSM4 10km MPO DOM Transceiver Module 2

FIBERTOP 40G QSFP+ SMF 1310nm PSM4 10km MPO DOM Transceiver Module 3

FIBERTOP 40G QSFP+ SMF 1310nm PSM4 10km MPO DOM Transceiver Module

SKU: QFP-SM31FG-10DC-FSZ

Product Highlights

Four-channel full-duplex transceiver modules

Transmission data rate up to 11.2Gbit/s per channel

Up to 10km transmission of single mode fiber

Low power consumption <2.5W,meet class 3

3.3V power supply voltage

Hot Pluggable QSFP+ form factor

Single MPO connector receptacle

RoHS 6 compliant

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Compatible With OEM Part Number(s)

QFP-SM31FG-10DC

Compatible OEM

FIBERTOP

Transceiver Type

LR4

Form Type

QSFP+

Speed Description

40Gb/s

Reach

10km

Wave length

1310nmPSM4

Media

SMF

Connector

MPO

TXPower

-5.5~2.3dBm

Extinction Ratio

>3.5dBm

Receiver Sensitivity

<-11.5dBm

FIBERTOP 40G QSFP+ Transceiver SMF 1310nm PSM4 10km MPO DOM

The QFP-SM31FG-10DC is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for InfiniBand QDR/DDR/SDR, 10G/8G/4G/2G fiber channel, PCIe and SAS Applications.

The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 11.2Gbps operation for an aggregate data rate of 40Gbps 10km using single mode fiber.

These modules are designed to operate over single mode fiber systems using 1310nm DFB laser array.

An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP module receptacle.

QSFP+ PSM LR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	QFP-SM31FG-10DC
Transceiver Type	LR4	Reach	10km
Wavelength	1310nm PSM4	Form Type	QSFP+
Speed Description	40Gb/s	Media	SMF
Connector	MPO	Extinction Ratio	>3.5 dBm
TX Power	-5.5~2.3 dBm	Receiver Sensitivity	<-11.5 dBm
Applications	Infiniband QDR and DDR Interconnects 40G Ethernet Proprietary High Speed Interconnections Data center	Environment	Operating:0 to 70C Storage: -40°C to 85°C
