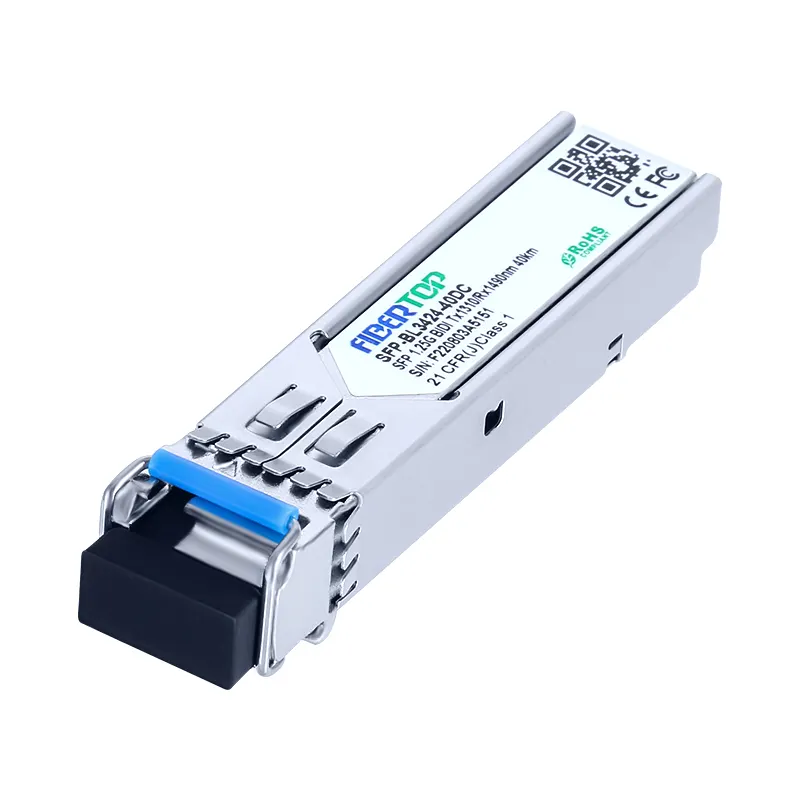

Huawei® SFP 1.25G BIDI Tx1310nm/Rx1490nm 40km Transceiver 1

Huawei® SFP 1.25G BIDI Tx1310nm/Rx1490nm 40km Transceiver 2

Huawei® SFP 1.25G BIDI Tx1310nm/Rx1490nm 40km Transceiver

SKU: SFP-BL3424-40DC

Product Highlights

Supports up to 1.25Gbps bit rates

Hot-pluggable SFP footprint

1310nm DFB laser and PIN photo detector, Up to 40km for SMF transmission

Compliant with SFP MSA and SFF-8472 with single LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

The Huawei compatible SFP 1.25G BIDI transceiver provides up to 40km of 1000Base-BX throughput over single-mode fiber (SMF) using TX1310nm/RX1490nm wavelengths via LC simplex connectors. This bi-directional unit must be used with another transceiver or network equipment of complementary wavelengths. It provides 1000BASE Ethernet connectivity options for Fast Ethernet, Telecom and Data Centers.

Technical Specification

Compatible OEM	Huawei®	Compatible With OEM Part Number(s)	SFP-BL3424-40DC
Transceiver Type	BIDI	Reach	40km
Wavelength	Tx1310nm/Rx1490nm	Form Type	SFP
Speed Description	1.25G	Media	SMF
Connector	Single LC	Extinction Ratio	> 9.0 dB
TX Power	-5 ~ 0 dBm	Receiver Sensitivity	< -24 dBm
Applications	1.25Gbps Optical systems Gigabit Ethernet 1.063Gbps Fiber Channel	Environment	Operating: 0°C to 70°C Storage: -40°C to 85°C

Compatibility

• Huawei network switches	• Huawei network routers
• Huawei firewalls	• Huawei security gateway
• Huawei fiber media converter	• Huawei network adapters
• Huawei network interface card (NICs)	• Huawei NAS
