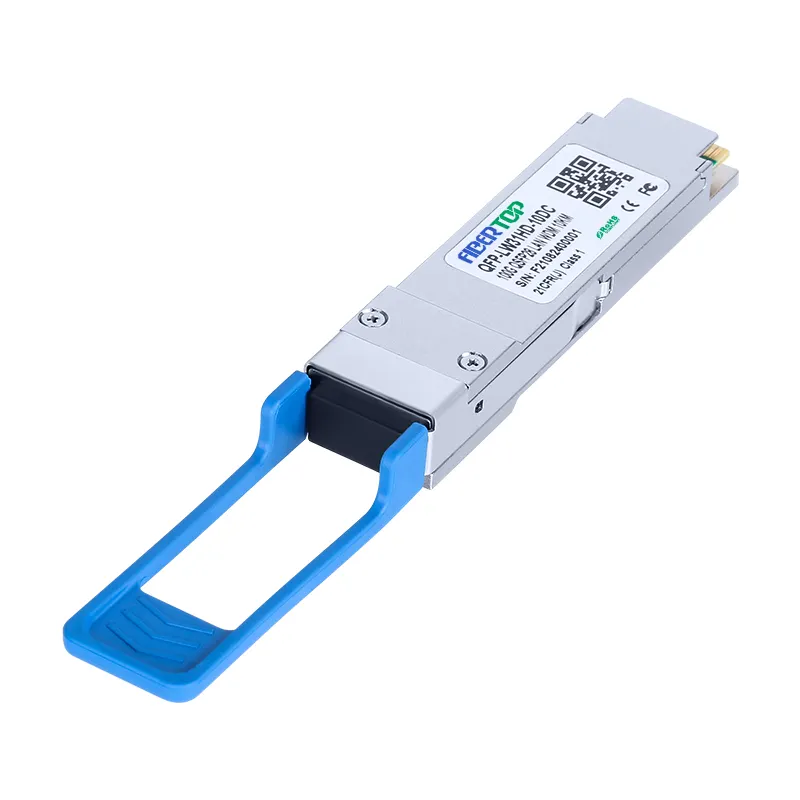

Huawei® QSFP28-100GBASE-LR4 100/112G 10km Dual Rate Transceiver 1

Huawei® QSFP28-100GBASE-LR4 100/112G 10km Dual Rate Transceiver 2

Huawei® QSFP28-100GBASE-LR4 100/112G 10km Dual Rate Transceiver

SKU: QFP-LW31HD-10DC

Product Highlights

Support for 101.3Gb/s and 112Gb/s aggregate bit rates

Hot-pluggable QSFP28 form factor

Maximum link length of 10km on Single Mode Fiber (SMF)

Built-in digital diagnostic functions

4x28Gb/s DFB-based LAN-WDM transmitter

Single +3.3V power supply

RoHS compliant

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

The HW QSFP-100/112G-LR4 Compatible QSFP28 LR4 Optical Transceiver Module is designed for use in 100GBASE Ethernet and 4x28G OTN client interfaces throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. Taking BOX+FPC+PCBA separate design, it has great reliability, airtightness and heat dissipation performance. This transceiver is compliant with IEEE 802.3ba 100GBASE-LR4 and OTU4 4I1-9D1F standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G Ethernet, 112G OTN OTU4, telecom, service provider applications and 5G wireless network.

Technical Specification

Compatible OEM	Huawei®	Compatible With OEM Part Number(s)	QFP-LW31HD-10DC
Transceiver Type	LAN-WDM	Reach	10km
Wavelength	1294.53 – 1296.59 1299.02 – 1301.09 1303.54 – 1305.63 1308.09 – 1310.19	Form Type	QSFP28
Speed Description	103.1G and 112G	Media	SMF
Connector	Duplex LC	Extinction Ratio	> 4.0 dB
TX Power	-4.3 ~ 4.5 dBm	Receiver Sensitivity	< -8.6 dBm
Applications	100GBASE-LR4 100G Ethernet OTN OTU4 4I1-9D1F	Environment	Operating:0°C to 70°C Storage: -40°C to 85°C

Compatibility

• Huawei network switches	• Huawei network routers
• Huawei firewalls	• Huawei security gateway
• Huawei fiber media converter	• Huawei network adapters
• Huawei network interface card (NICs)	• Huawei NAS
