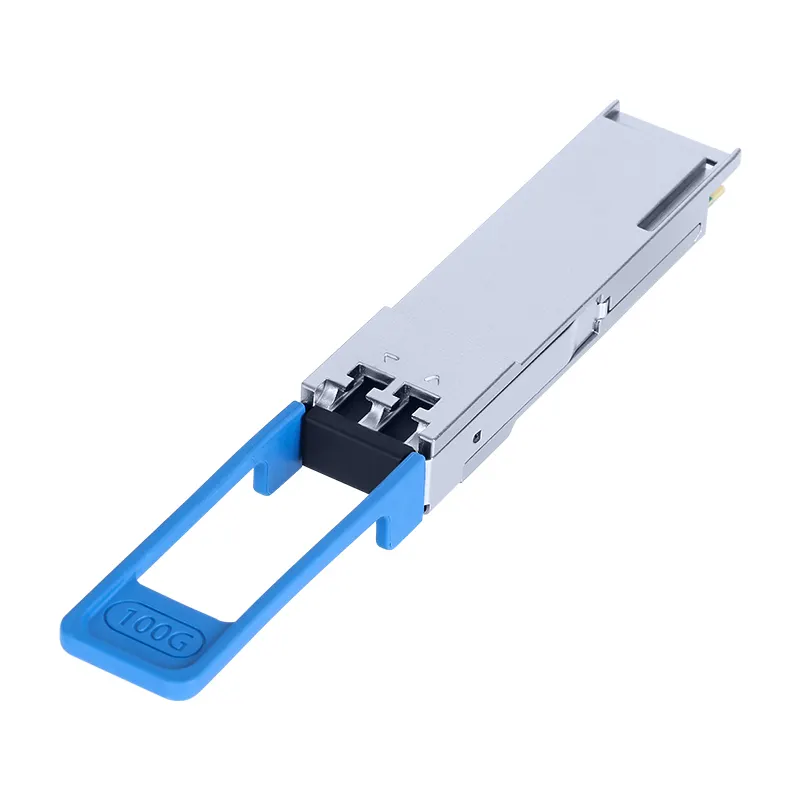

HPE Aruba® Compatible 100GBASE-LR4 QSFP28 100G 10km Transceiver 1

HPE Aruba® Compatible 100GBASE-LR4 QSFP28 100G 10km Transceiver 2

HPE Aruba® Compatible 100GBASE-LR4 QSFP28 100G 10km Transceiver

SKU: QFP-LW31HG-10DC

Product Highlights

Hot-pluggable QSFP28 form factor

Supports 103.1Gb/s aggregate bit rates

Maximum link length of 10km on Single Mode Fiber (SMF)

Power dissipation < 3.5W

Built-in digital diagnostic functions, Built-in CDR

4x25.78Gb/s DFB-based LAN-WDM transmitter

Duplex LC receptacles

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

QSFP28 100G LR4 transceiver. It is compliant with the QSFP28MSAand IEEE 802.3ba. 100GBASE-LR4 transceiver modules are designed for use in 100 Gigabit Ethernet interfaces over single mode fiber.

Technical Specification

Compatible OEM	HPE Aruba®	Compatible With OEM Part Number(s)	QFP-LW31HG-10DC
Transceiver Type	LR	Reach	10km
Wavelength	1294.53 – 1296.59 1299.02 – 1301.09 1303.54 – 1305.63 1308.09 – 1310.19	Form Type	QSFP28
Speed Description	100G	Media	SMF
Connector	Duplex LC	Extinction Ratio	> 4.0 dB
TX Power	-4.3 ~ +4.5 dBm	Receiver Sensitivity	< -8.6 dBm
Applications	100GBASE-LR4 100G Ethernet	Environment	Operating: 0°C to 70°C Storage: -40°C to 85°C

Compatibility

• HPE Aruba network switches	• HPE Aruba network routers
• HPE Aruba nokia firewalls	• HPE Aruba security gateway
• HPE Aruba fiber media converter	• HPE Aruba network adapters
• HPE Aruba network interface card (NICs)	• HPE Aruba NAS

Questions & Answers

Q：Has the module been tested on HPE Aruba switches?

A：Yes, we can provide compatibility test video for your reference
