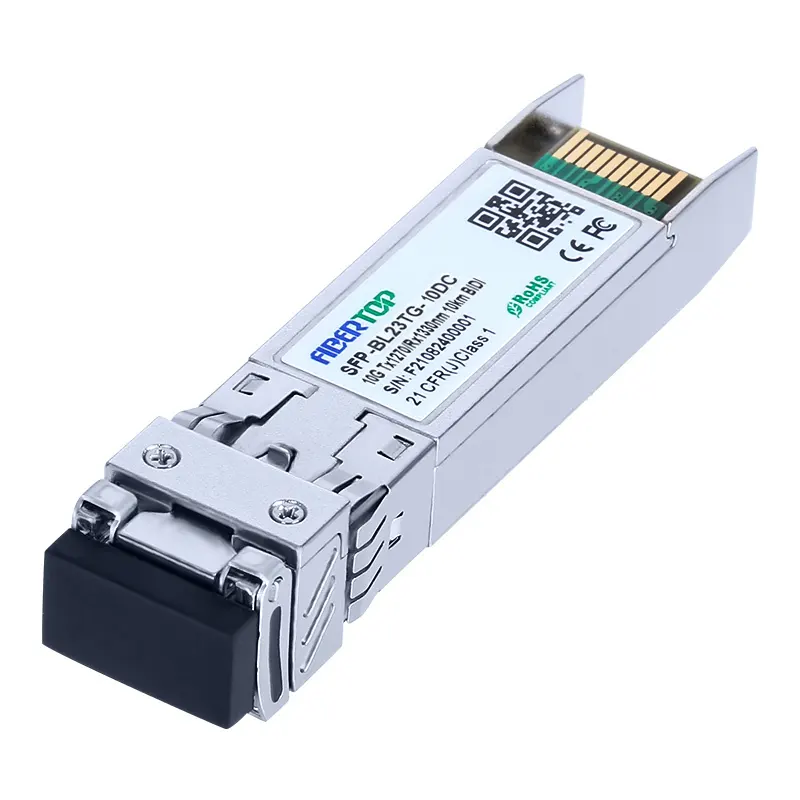

Juniper Networks 10GBASE-LR SFP 10G BIDI 10km Transceiver 1

Juniper Networks 10GBASE-LR SFP 10G BIDI 10km Transceiver 2

Juniper Networks 10GBASE-LR SFP 10G BIDI 10km Transceiver

SKU: SFP-BL23TG-10DC

Product Highlights

Supports up to 10.7Gbps bit rates

Hot-pluggable SFP footprint

1270nm DFB laser and PIN photodiode, Up to 10km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with single LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

The SFP 10G BIDI 10km transceivers are high performance, cost effective modules supporting data rateof 10Gbpsand 10km transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integratedwithatrans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safetyrequirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnosticsfunctions.

Technical Specification

Compatible OEM	Juniper®	Compatible With OEM Part Number(s)	SFP-BL23TG-10DC
Transceiver Type	BIDI	Reach	10km
Wavelength	Tx1270nm/Rx1330nm	Form Type	SFP
Speed Description	10G	Media	SMF
Connector	Single LC	Extinction Ratio	> 3.5 dB
Average Output Power	-5 ~ -1 dBm	Receiver Sensitivity	< -14.4 dBm
Applications	10Gbps Optical systems 10GBASE-LR at 10.3125Gbps 10GBASE-LW at 9.953Gbps LTE systems Other Optical links	Environment	Operating: 0°C to 70°C Storage: -40°C to 85°C

Compatibility

• Juniper network switches	• Juniper network routers
• Juniper firewalls	• Juniper security gateway
• Juniper fiber media converter	• Juniper network adapters
• Juniper network interface card (NICs)	• Juniper NAS

Questions & Answers

Q：This module is compatible with those switches?

A：Compatible with Huawei Cisco Juniper and so on.
