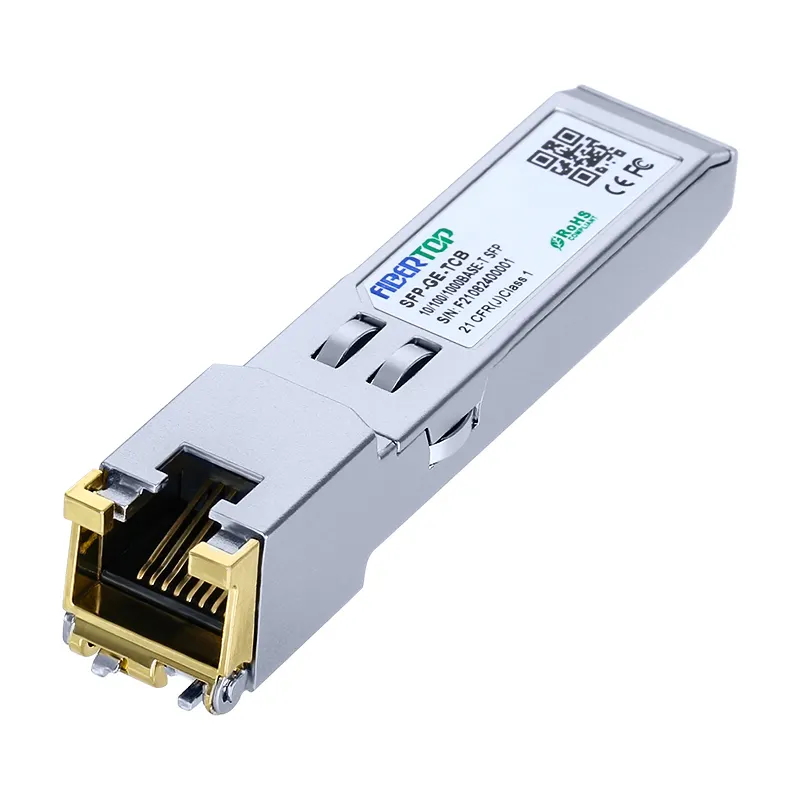

1000Base-T RJ45 SFP Copper Transceiver

SKU: SFP-GE-TCB

Product Highlights

Up to 1.25Gb/s bi-directional data links

Hot-pluggable SFP footprint

Extended case temperature range

Fully metallic enclosure for low EMI

Low power dissipation

Compact RJ-45 connector assembly

Access to physical layer IC via 2-wire serial bus

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

1000Base-T Copper RJ45 SFP-T Transceiver

1000Base rj45 sfp Copper Small Form Pluggable (SFP) transceivers are high performance, cost effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cables. The module supports1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address A0h.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-GE-TCB
Transceiver Type	Copper	Reach	100m
Wavelength	N/A	Form Type	SFP
Speed Description	1.25Gigabit	Media	Copper
Connector	RJ-45	Extinction Ratio	N/A
TX Power	N/A	Receiver Sensitivity	N/A
Applications	1.25 Gigabit Ethernet over Cat 5 cable	Environment	Operating:0 to 70°C

Questions & Answers

Q：Can this SFP-T transmit up to 100 meters?

A：Yes

Q：please let know what chip？

A：The chip for this SFP-T is Marvell 88E1112
