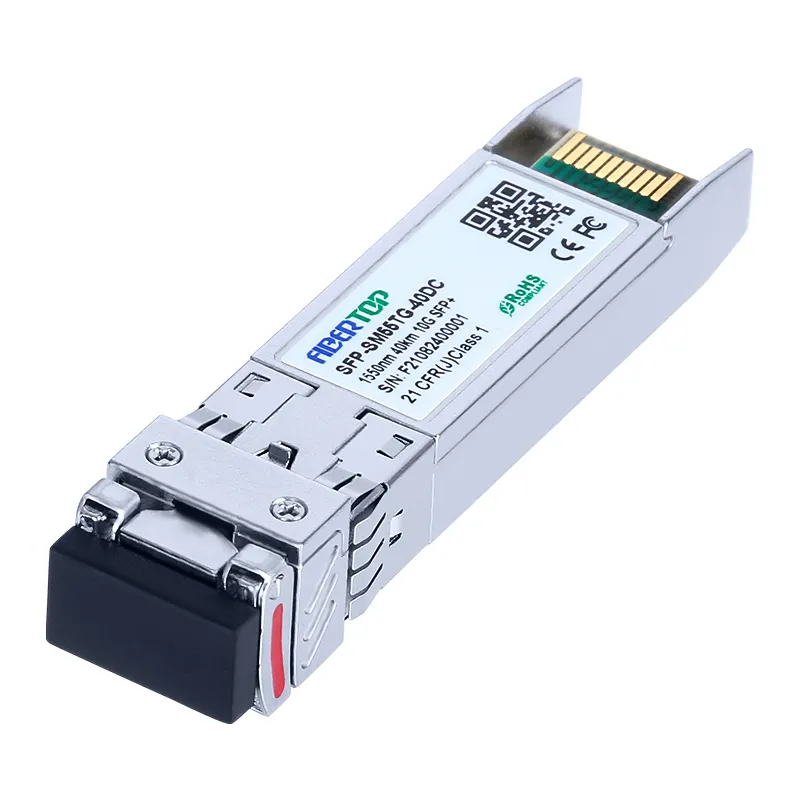

Mellanox 10GBASE-ER SFP+ 10G 1550nm 40km Transceiver 1

Mellanox 10GBASE-ER SFP+ 10G 1550nm 40km Transceiver 2

Mellanox 10GBASE-ER SFP+ 10G 1550nm 40km Transceiver

SKU: SFP-SM55TG-40DC

Product Highlights

Supports up to 10.7Gbps bit rates

Hot-pluggable SFP+ footprint

1550nm Cooled EML laser and PIN photodiode, Up to 40km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

This Mellanox® compatible SFP+ transceiver provides 10GBase-ER throughput up to 40km over single-mode fiber (SMF) using a wavelength of 1550nm via an LC connector. It can operate at temperatures between 0 and 70C. Our transceiver is built to meet or exceed OEM specifications and is guaranteed to be 100% compatible with Mellanox®. It has been programmed, uniquely serialized, and tested for data-traffic and application to ensure that it will initialize and perform identically. All of our transceivers comply with Multi-Source Agreement (MSA) standards to provide seamless network integration. Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters.

Technical Specification

Compatible OEM	Mellanox®	Compatible With OEM Part Number(s)	SFP-SM55TG-40DC
Transceiver Type	ER	Reach	40km
Wavelength	1550nm	Form Type	SFP+
Speed Description	10G	Media	SMF
Connector	Duplex LC	Extinction Ratio	> 8.2 dB
Average Output Power	-1 ~ +2 dBm	Receiver Sensitivity	< -15.5 dBm
Applications	10Gbps Optical systems 10GBASE-ER at 10.3125Gbps 10GBASE-EW at 9.953Gbps LTE systems Other Optical links	Environment	Operating: 0°C to 70°C Storage: -40°C to 85°C

Compatibility

• Mellanox network switches	• Mellanox network routers
• Mellanox firewalls	• Mellanox security gateway
• Mellanox fiber media converter	• Mellanox network adapters
• Mellanox network interface card (NICs)	• Mellanox NAS

Questions & Answers

Q：This module is compatible with those switches?

A：Compatible with Huawei Cisco Mellanox
