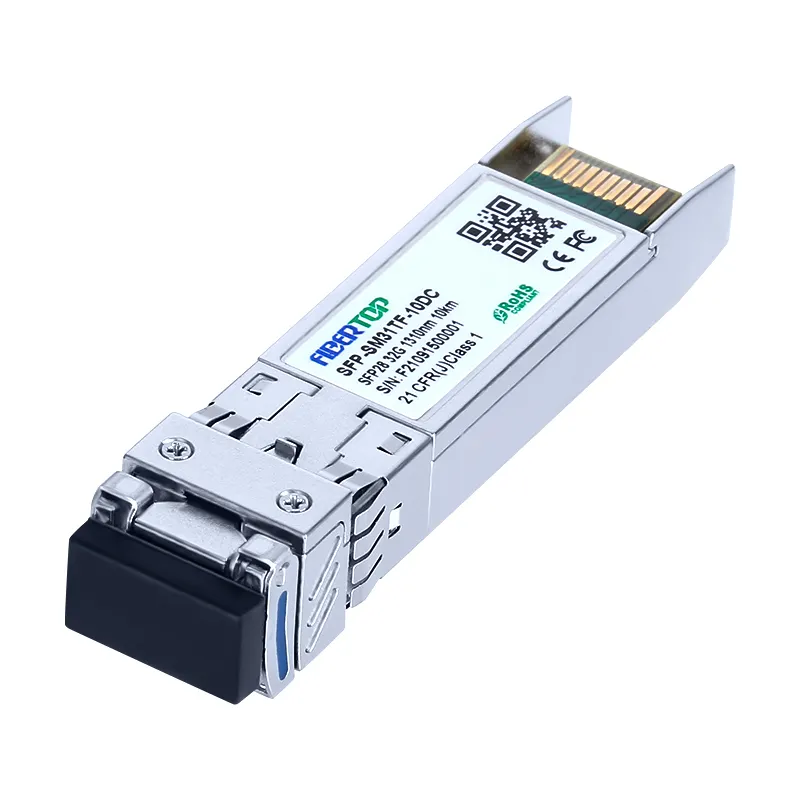

Q-logic 28G Fiber Channel 10km SFP28 28GBASE-LR Transceiver 1

Q-logic 28G Fiber Channel 10km SFP28 28GBASE-LR Transceiver 2

Q-logic 28G Fiber Channel 10km SFP28 28GBASE-LR Transceiver

SKU: SFP-SM31TF-10DC

Product Highlights

Supports up to 28.05Gbps bit rates

Hot-pluggable SFP+ footprint

1310nm DFB laser and PIN photodiode, Up to 10km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

The 28G Fiber Channel 10km SFP28 transceivers are high performance, cost effective modules supporting data rate of 28.05Gbps and 10km transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Technical Specification

Compatible OEM	Q-logic	Compatible With OEM Part Number(s)	SFP-SM31TF-10DC
Transceiver Type	Fiber Channel	Reach	10km
Wavelength	1330nm	Form Type	SFP28
Speed Description	28G	Media	SMF
Connector	Duplex LC	Extinction Ratio	> 4.0 dB
TX Power	-7 ~ +2 dBm	Receiver Sensitivity	< -11.6 dBm
Applications	16GFC/32GFC Fibre channel	Environment	Operating: 0°C to 70°C

Compatibility

• Q-logic network switches	• Q-logic network routers
• Q-logic firewalls	• Q-logic security gateway
• Q-logic fiber media converter	• Q-logic network adapters
• Q-logic network interface card (NICs)	• Q-logic NAS
