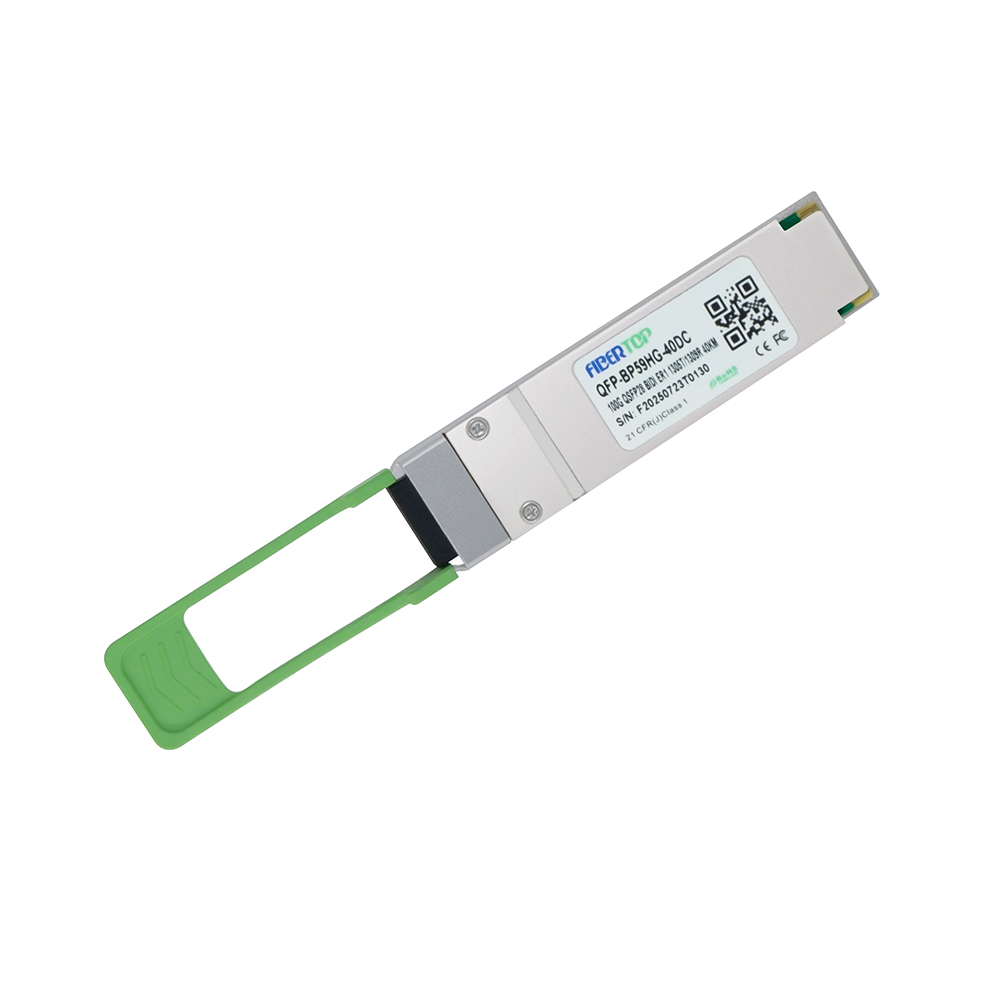

QSFP28 100G BIDI ER 40km 1304nm/1309nm Transceiver 1

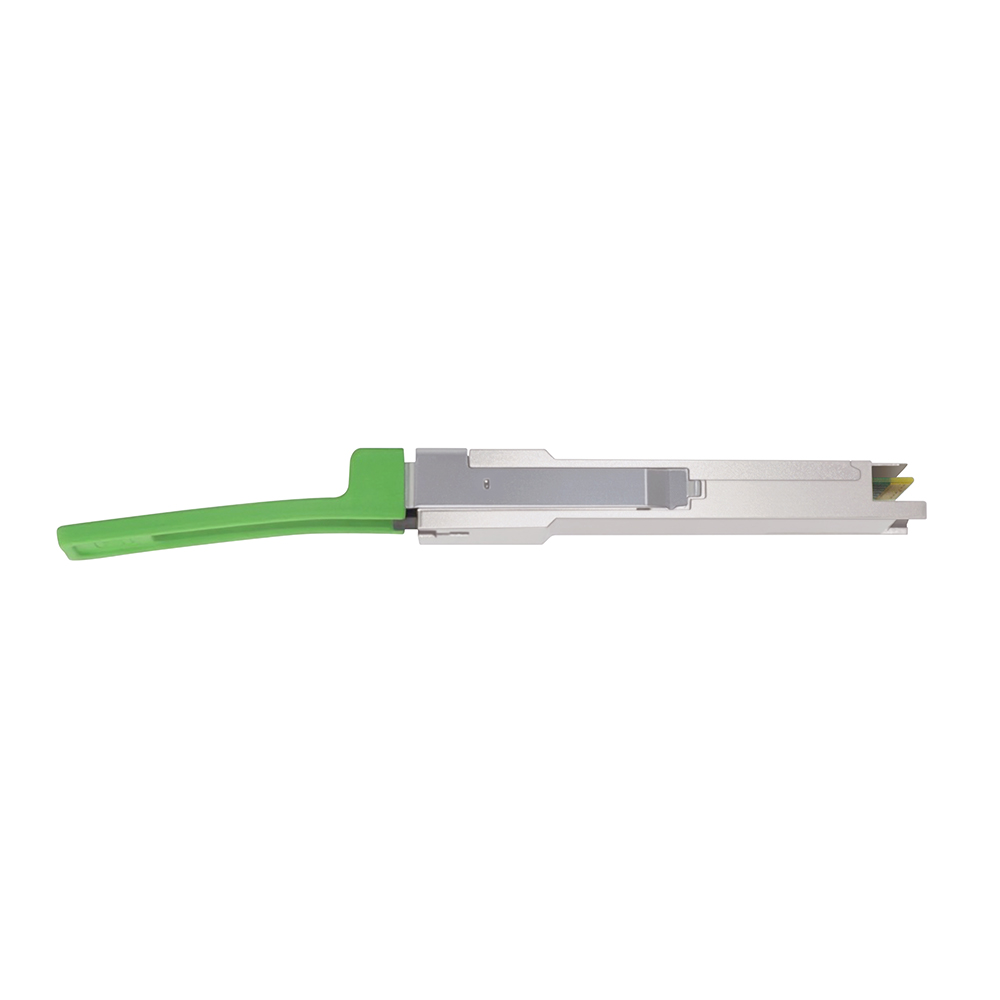

QSFP28 100G BIDI ER 40km 1304nm/1309nm Transceiver 2

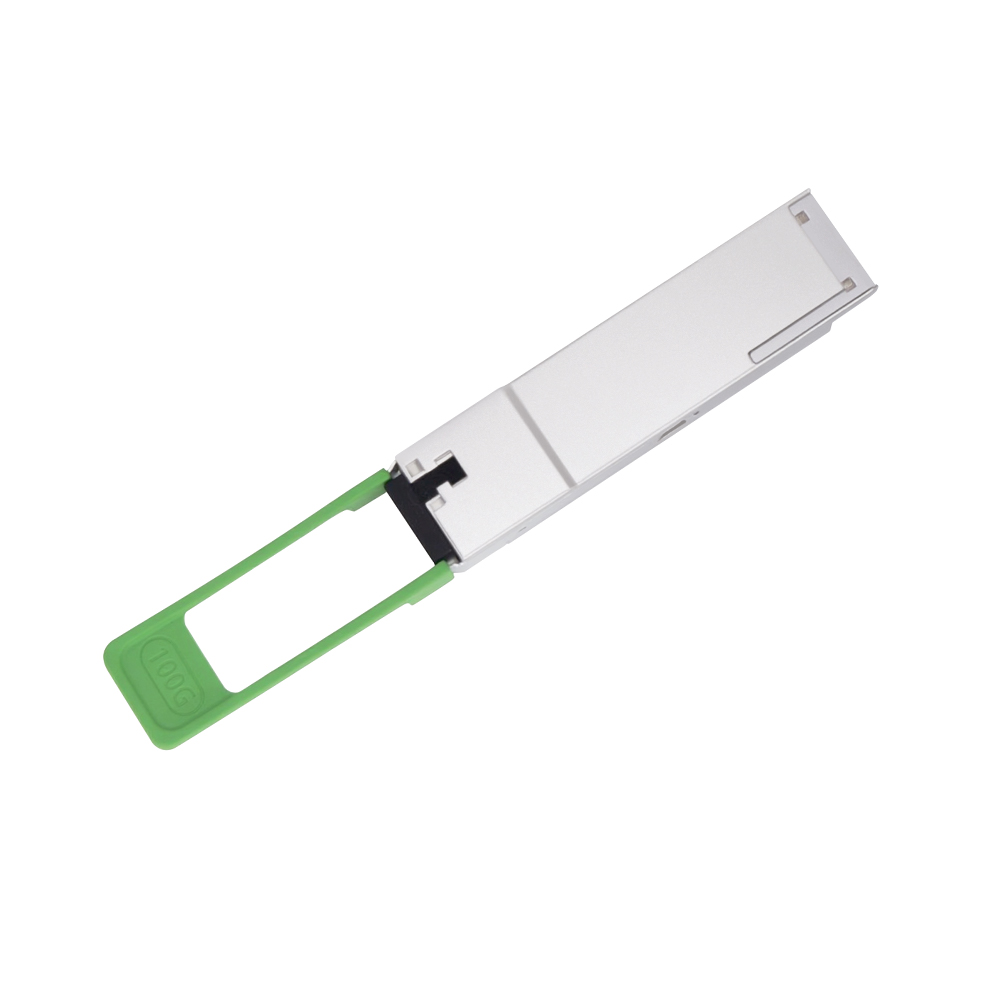

QSFP28 100G BIDI ER 40km 1304nm/1309nm Transceiver 3

QSFP28 100G BIDI ER 40km 1304nm/1309nm Transceiver

SKU: QFP-BP59HG-40DC

Product Highlights

Supports 100GBASE-ER4 BIDI

Lane signaling rate 106.25Gb/s with PAM4

Up to 40km transmission on SMF

EML Laser and APD receiver

4x25.78Gb/s with NRZ electrical interface (CAUI-4)

High speed I/O electrical interface

I2C interface with integrated Digital Diagnostic monitoring

QSFP28 MSA package with simplex LC connector

QSFP28 100G BIDI ER1

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Compatible With OEM Part Number(s)

QFP-BP59HG-40DC

Compatible OEM

FIBERTOP

Transceiver Type

BIDI

Form Type

QSFP28

Speed Description

100G

Reach

40km

Wave length

1304nm/1309nm

Media

SMF

Connector

SimplexLC

TXPower

1.7~7.1dBm

Extinction Ratio

>5dB

Receiver Sensitivity

<（-13.8

100G QSFP28 ER1 BIDI single fiber optical transceiver module (1304nm/1309nm) is designed for use in 100 Gigabit Ethernet links over 40km single mode fiber. The module incorporate one channel optical signal and operates on 1304nm and 1309nm wavelength. Compliant with the QSFP28 MSA. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	QFP-BP59HG-40DC
Transceiver Type	BIDI	Reach	40km
Wavelength	1304nm/1309nm	Form Type	QSFP28
Speed Description	100G	Media	SMF
Connector	Simplex LC	Extinction Ratio	> 5 dB
TX Power	1.7 ~ 7.1 dBm	Receiver Sensitivity	< （-13.8,-15.2+TECQ） dBm
Applications	100GBASE-LR BIDI	Environment	Operating: 0°C to 70°C
