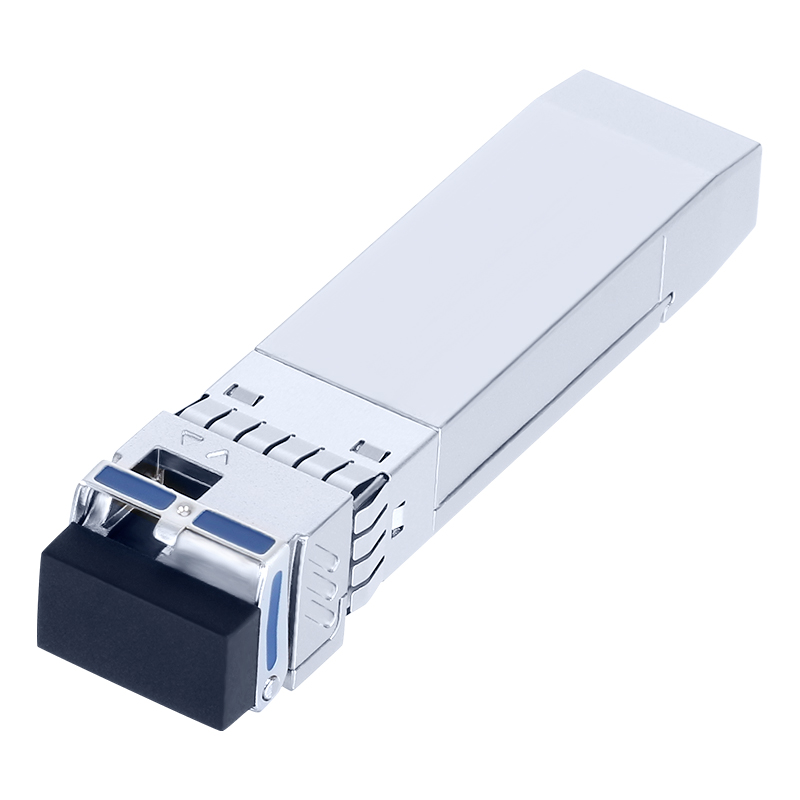

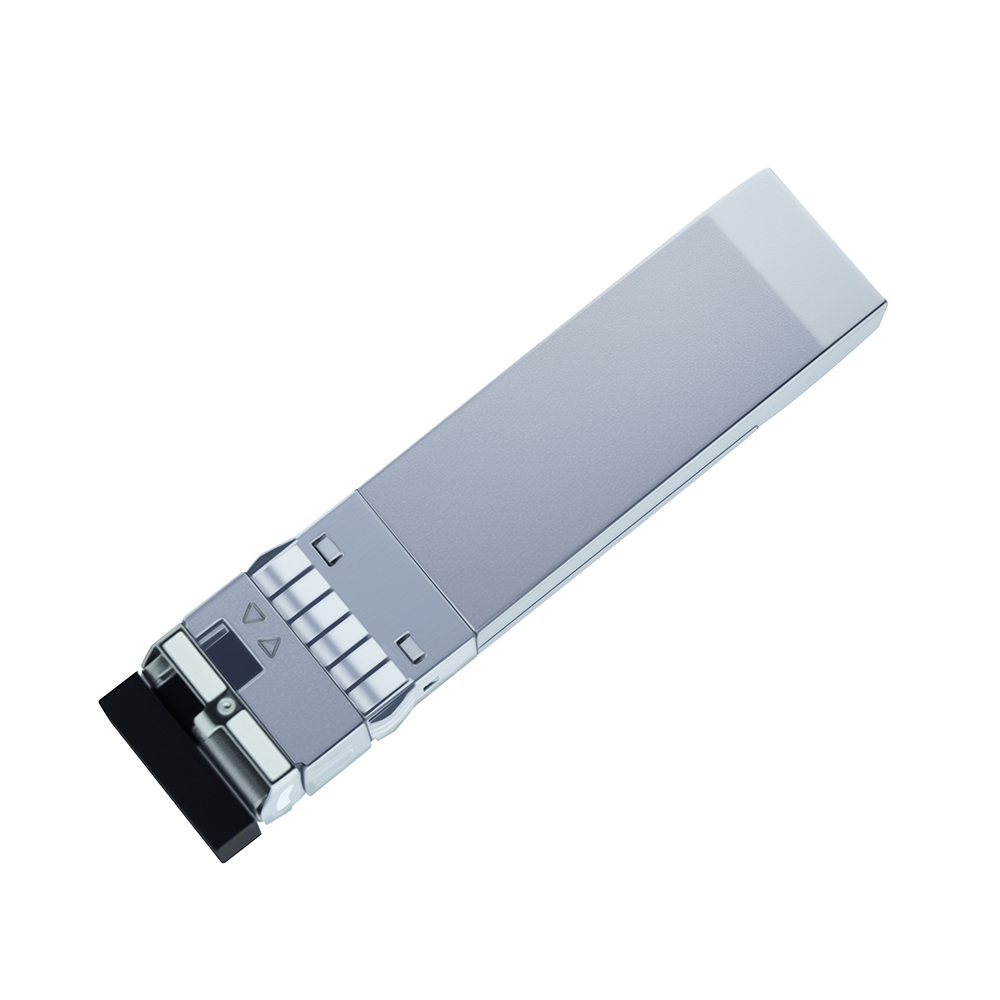

SFP28 25G BIDI 40km Tx1330nm/Rx1270nm Transceiver

SKU: SFP-BL32T5-40DC

Product Highlights

All metal housing for superior EMI performance

Up to 25.78Gbps Data Links

Up to 40km transmission on SMF

1270nm/1330nm DFB Laser and APD receiver

Metal enclosure, for lower EMI

2-wire interface with integrated Digital Diagnostic monitoring

Hot-pluggable SFP28 footprint

Compliant with SFP+ MSA and SFF-8472 with Simplex LC receptacle

SFP28 25G BIDI 40km Tx1330nm/Rx1270nm

Write a Review

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Compatible With OEM Part Number(s)

SFP-BL12T5-40DC

Compatible OEM

FIBERTOP

Transceiver Type

BIDI

Form Type

SFP28

Speed Description

25G

Reach

40km

Wave length

Tx1310nm/Rx1270nm\n

Media

SMF

Connector

SinglexLC

TXPower

0~+6dBm

Extinction Ratio

>3.5dB

Receiver Sensitivity

<-17.5dBm

SFP28 25GBASE-ER BIDI 40km Tx1310nm/Rx1270nm Single LC DOM Transceiver

This SFP28 25GBASE ER BIDI transceiver provides 25GBase-BX throughput up to 40km over single mode fiber (SMF) using a wavelength of TX1310nm/RX1270nm via an LC simplex connector. This bidirectional unit must be used with another transceiver or network appliance of complimenting wavelengths. It provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-BL12T5-40DC
Transceiver Type	BIDI	Reach	40km
Wavelength	Tx1310nm/Rx1270nm	Form Type	SFP28
Speed Description	25G	Media	SMF
Connector	Singlex LC	Extinction Ratio	> 3.5 dB
TX Power	0 ~ +6 dBm	Receiver Sensitivity	< -17.5 dBm
Applications	25GBASE-ER	Environment	Operating:0°C to 70°C Storage: -40°C to 85°C

Questions & Answers

Q：Do you offer 25G SFP28 BIDI 40KM Optical Module Transceivers?

A：Of course, our current samples have been validated
