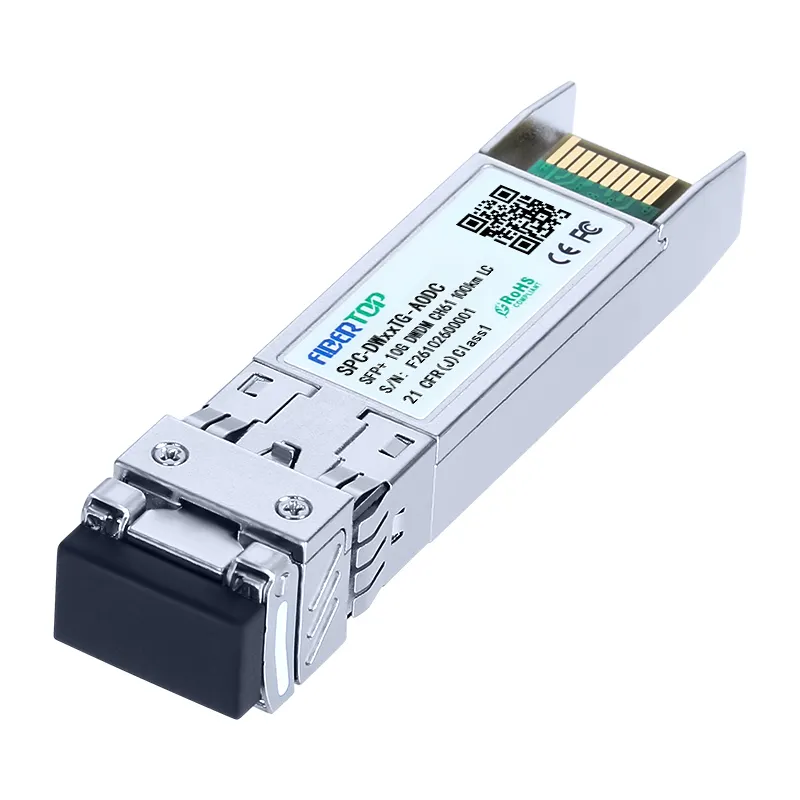

10G SFP+ DWDM 100km with CDR CH17 to CH61 Transceiver

SKU: SPC-DW61TG-80DC

Product Highlights

Supports up to 11.3Gbps bit rates
Built-in TX and RX CDR
Hot-pluggable SFP+ footprint
100GHz ITU, C Band DWDM Cooled EML laser and APD photodiode, Up to 100km for SMF transmission
Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
Compatible with RoHS
Single +3.3V power supply
Real Time Digital Diagnostic Monitoring

Compatible with RoHS

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

10G SFP+ DWDM 100km SMF with CDR LC DDM Transceiver | Fibertop

The SPC‑DWxxTG‑A0DC is high‑performance 10G SFP+ DWDM optical transceiver with integrated TX and RX CDR clock‑data‑recovery. It supports bit‑rate from 9.953Gbps to 11.3Gbps, typical 10.3125Gbps. Adopting cooled EML laser transmitter and high‑sensitivity APD photodiode with TIA preamplifier, it achieves up to 100 km ultra‑long‑haul transmission over single‑mode fiber following 100 GHz ITU‑T C‑Band grid. Hot‑pluggable SFP+ footprint with duplex LC receptacle, supporting real‑time DDM digital diagnostic monitoring complying with SFF‑8472. Powered by single +3.3 V supply, operating case temperature 0℃~70℃. It meets Class I laser safety, SFP+ MSA and RoHS requirements, perfect for 10GBASE‑ZR /10GBASE‑ZW, LTE transmission and long‑haul metro DWDM WDM networking.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SPC‑DWxxTG‑A0DC
Transceiver Type	ZR	Reach	100km
Wavelength	DWDM	Form Type	SFP+
Speed Description	10G	Media	SMF
Connector	Duplex LC	Extinction Ratio	> 8.2 dB
TX Power	1 ~ 5 dBm	Receiver Sensitivity	< -24 dBm
Applications	10Gbps DWDM Optical systems, 10GBASE‑ZR / 10GBASE‑ZW long‑reach Ethernet links, Long‑haul metro DWDM wavelength‑division‑multiplexing networks	Environment	Operating: 0°C to 70°C

λC Wavelength Guide

ITU Channel Product Code	Frequency(THz)	Wavelength	ITU Channel Product Code	Frequency(THz)	Wavelength
17	191.7	1563.86	40	194.0	1545.32
18	191.8	1563.05	41	194.1	1544.53
19	191.9	1562.23	42	194.2	1543.73
20	192.0	1561.42	43	194.3	1542.94
21	192.1	1560.61	44	194.4	1542.14
22	192.2	1559.79	45	194.5	1541.35
23	192.3	1558.98	46	194.6	1540.56
24	192.4	1558.17	47	194.7	1539.77
25	192.5	1557.36	48	194.8	1538.98
26	192.6	1556.55	49	194.9	1538.19
27	192.7	1555.75	50	195.0	1537.40
28	192.8	1554.94	51	195.1	1536.61
29	192.9	1554.13	52	195.2	1535.82
30	193.0	1553.33	53	195.3	1535.04
31	193.1	1552.52	54	195.4	1534.25
32	193.2	1551.72	55	195.5	1533.47
33	193.3	1550.92	56	195.6	1532.68
34	193.4	1550.12	57	195.7	1531.90
35	193.5	1549.32	58	195.8	1531.12
36	193.6	1548.51	59	195.9	1530.33
37	193.7	1547.72	60	196.0	1529.55
38	193.8	1546.92	61	196.1	1528.77
39	193.9	1546.12

Frequently Asked Questions

Q: What is the purpose of built‑in CDR?

A: Integrated TX and RX CDR reshapes electrical signals and reduces jitter, ensures stable signal performance for 100km ultra‑long fiber links, compatible with host ports with poor signal quality.

Q: What ITU‑T channels are supported?

A: Supports 100 GHz ITU C‑Band channel 17‑61 (1528.77‑1563.86nm), custom ITU channel available.

Q: What parameters can DDM monitor?

A: Module temperature, supply voltage, laser bias current, transmit & receive optical power via I2C serial bus.

Q: Which standards does it support?

A: Supports 10GBASE‑ZR, 10GBASE‑ZW for DWDM and LTE transmission.
