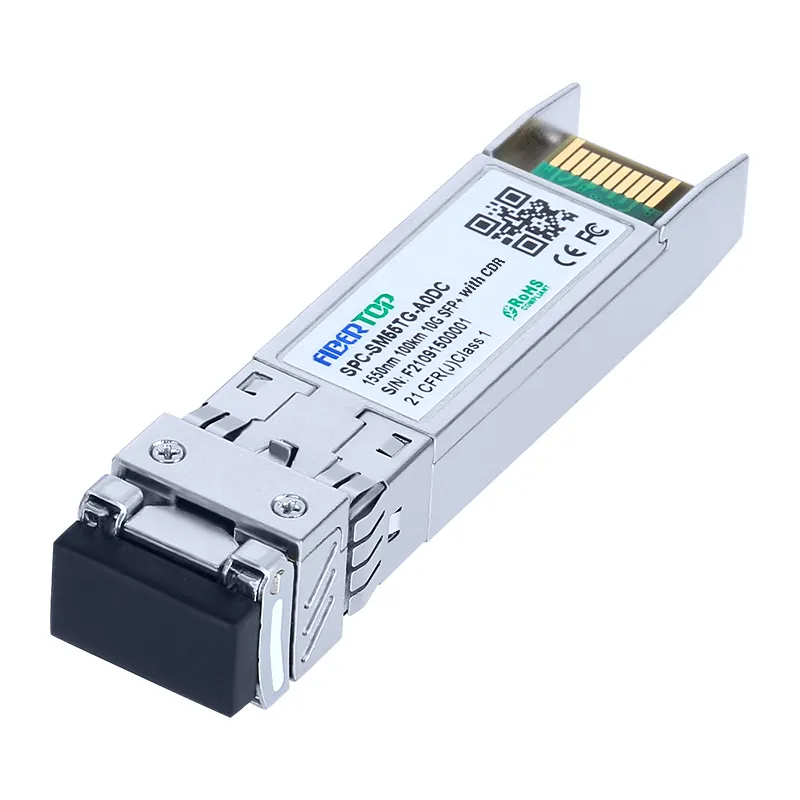

10GBASE-ZR SFP+ 10G 1550nm 100km Transceiver

SKU: SPC-SM55TG-A0DC

Product Highlights

Supports up to 11.3Gbps bit rates

Built-in TX and RX CDR

Hot-pluggable SFP+ footprint

1550nm Cooled EML laser and APD photodiode, Up to 100km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

10GBASE-ZR SFP+ 10G 1550nm 100km Transceiver

SPC-SM55TG-A0DC is high‑performance hot‑pluggable SFP+ single‑mode optical transceiver with **built‑in TX & RX CDR**, supporting data rates from 9.953Gbps up to 11.3Gbps and maximum **100km transmission over single‑mode fiber**. It integrates 1550nm Cooled EML laser transmitter and APD photodiode with TIA amplifier, duplex LC receptacle, equipped with real‑time DDM digital diagnostic monitoring. Fully compliant with SFP+ MSA and SFF‑8472, single +3.3V power supply, commercial operating temperature 0℃ ~ +70℃ and RoHS compliant, meets Class I laser safety requirement.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SPC-SM55TG-A0DC
Transceiver Type	ZR	Reach	100km
Wavelength	1550nm	Form Type	SFP+
Speed Description	100G	Media	SMF
Connector	Duplex LC	Extinction Ratio	> 8.2 dB
TX Power	1 ~ 4 dBm	Receiver Sensitivity	< -23 dBm
Applications	10Gbps Optical transmission Long‑distance 10G optical links, interconnect, LTE communication backhaul systems	Environment	Operating: 0°C to 70°C Storage:-40°C to 85°C

Frequently Asked Questions

Q1: What fiber connector type?

A1: Duplex LC receptacle, requires duplex LC single‑mode patch cord.

Q2: Does SPC‑SM55TG‑A0DC support DDM digital diagnostic?

A2: Yes, DDM function compliant with SFF‑8472. You can read real‑time data: module temperature, supply voltage, laser bias current, transmit optical power and receive optical power via I2C interface.

Q3: Is this SFP+ hot‑pluggable?

A3: Yes, it follows SFP+ MSA hot‑plug specification. Insert or remove the transceiver without host power‑off.
