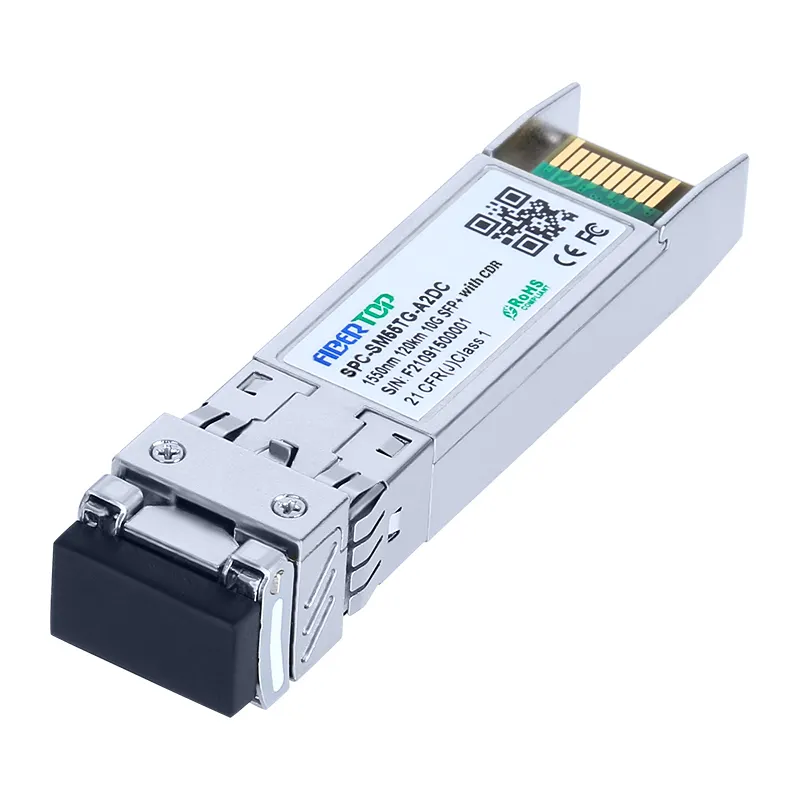

10GBASE-ZR SFP+ 10G 1550nm 120km Transceiver

SKU: SPC-SM55TG-A2DC

Product Highlights

Supports up to 11.3Gbps bit rates

Built-in TX and RX CDR

Hot-pluggable SFP+ footprint

1550nm Cooled EML laser and APD photodiode, Up to 120km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

10GBASE-ZR SFP+ 10G 1550nm 120km Transceiver

**SPC‑SM55TG‑A2DC** is high‑performance hot‑pluggable SFP+ single‑mode optical transceiver equipped with **built‑in TX & RX CDR clock‑data‑recovery**. It supports data rates ranging from 9.953Gbps to 11.3Gbps and delivers up to **120km transmission over single‑mode fiber**.

This module adopts high‑power 1550nm Cooled EML laser transmitter and high‑sensitivity APD photodiode with integrated TIA amplifier, duplex LC receptacle, and real‑time DDM digital diagnostic monitoring. It meets SFP+ MSA and SFF‑8472 specifications, single +3.3V power supply, operating temperature 0℃ ~ +70℃, RoHS compliant and Class I laser safety.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SPC-SM55TG-A2DC
Transceiver Type	ZR	Reach	120km
Wavelength	1550nm	Form Type	SFP+
Speed Description	10G	Media	SMF
Connector	Duplex LC	Extinction Ratio	> 8.2 dB
TX Power	2 ~ 6 dBm	Receiver Sensitivity	< -26 dBm
Applications	10Gbps Optical systems, LTE systems, Other Optical links	Environment	Operating: 0°C to 70°C Storage:-40°C to 85°C
