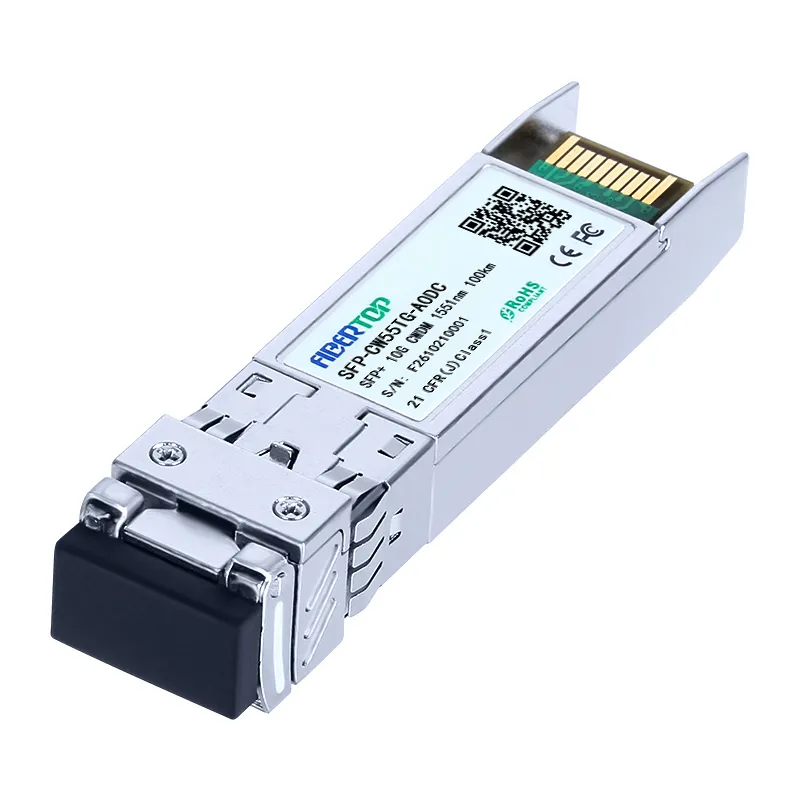

10GBASE-ZR SFP+ 10G CWDM 100km 1471~1551nm Transceiver

SKU: SFP-CWxxTG-A0DC

Product Highlights

Supports up to 11.3Gbps bit rates

Hot-pluggable SFP+ footprint

50GHz ITU, C-Band & H-Band Cooled EML laser and PIN photodiode, Up to 40km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle

Compatible with RoHS

Real Time Digital Diagnostic Monitoring

Operating case temperature: 0 to +70°C

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

10GBASE-ZR SFP+ 10G CWDM 100km 1471~1551nm Transceiver

The SFP‑CWxxTG‑A0DC is a high‑performance hot‑pluggable SFP+ CWDM transceiver designed for 8.0~10.7Gbps data rates, supporting up to 100km transmission on single‑mode fiber. It integrates cooled EML laser transmitter and APD photodiode receiver, duplex LC receptacle, with real‑time digital diagnostic monitoring (DDM). Fully compliant with SFP+ MSA and SFF‑8472 specifications, operating temperature from 0℃ to +70℃, single +3.3V power supply, RoHS compliant. Available on CWDM wavelengths:1471nm,1491nm,1511nm,1531nm,1551nm,1571nm.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-CWxxTG-A0DC
Transceiver Type	ZR4	Reach	100km
Wavelength	CWDM	Form Type	SFP+
Speed Description	10G	Media	SMF
Connector	Duplex LC	Extinction Ratio	> 8.2 dB
TX Power	1 ~ 4 dBm	Receiver Sensitivity	< -25 dBm
Applications	10Gbps CWDM Optical Systems, 10GBASE‑ZR (10.3125Gbps), LTE Communication Systems	Environment	Operating: 0°C to 70°C

Frequently Asked Questions

Q: Is this transceiver hot‑pluggable?

A: Yes. It follows SFP+ MSA standard hot‑pluggable footprint. You can insert or remove the module without powering off host equipment.
