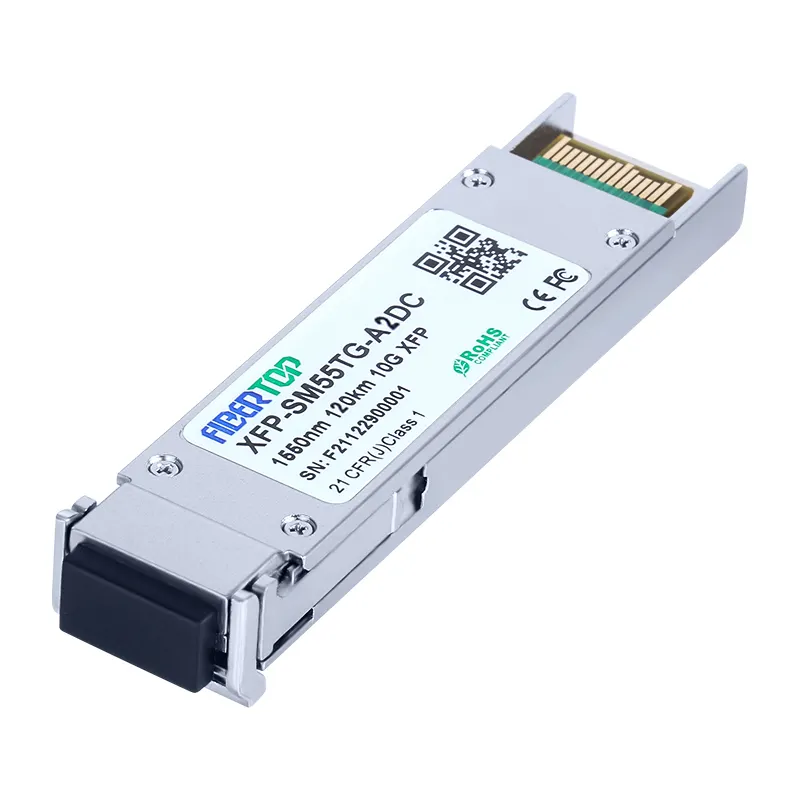

10Gbase-ZR XFP 1550nm 120km Transceiver Module

SKU: XFP-SM55TG-A2DC

Product Highlights

Supports 9.953Gb/s to 11.1Gb/s bit rates

Hot-pluggable XFP footprint, Built-in digital diagnos

Maximum link length of 120km with SMF

1550nm Cooled EML laser and APD photodiode

XFP MSA package with duplex LC connector

No reference clock required

Power dissipation <3.5W

Single +3.3V power supply

Compatible with RoHS

Temperature range：0 to +70°C

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

10Gbps XFP Transceiver Single Mode 120km LC DDM

The XFP module is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 9.953~11.1Gbps, and transmission distance up to 120km on SMF.

The transceiver module comprises a transmitter with 1550nm Cooled EML laser and a receiver with a APD photodiode. Transmitter and receiver are separate within a wide temperature range and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	XFP-SM55TG-A2DC
Transceiver Type	Dual Fiber	Reach	120km
Wavelength	1550nm	Form Type	XFP
Speed Description	10-Gigabit	Media	SMF
Connector	Dual LC	Extinction Ratio	>8.2 dBm
Average Output Power	-1.5~4 dBm	Receiver Sensitivity	<-27 dBm
Applications	SONET OC-192&SDH STM-64 at 9.953Gbps 10GBASE-120km 10G Ethernet OC192 over FEC at 10.709Gbps Other optical links, up to 10.7Gbps	Environment	Operating: 0 to 70°C
