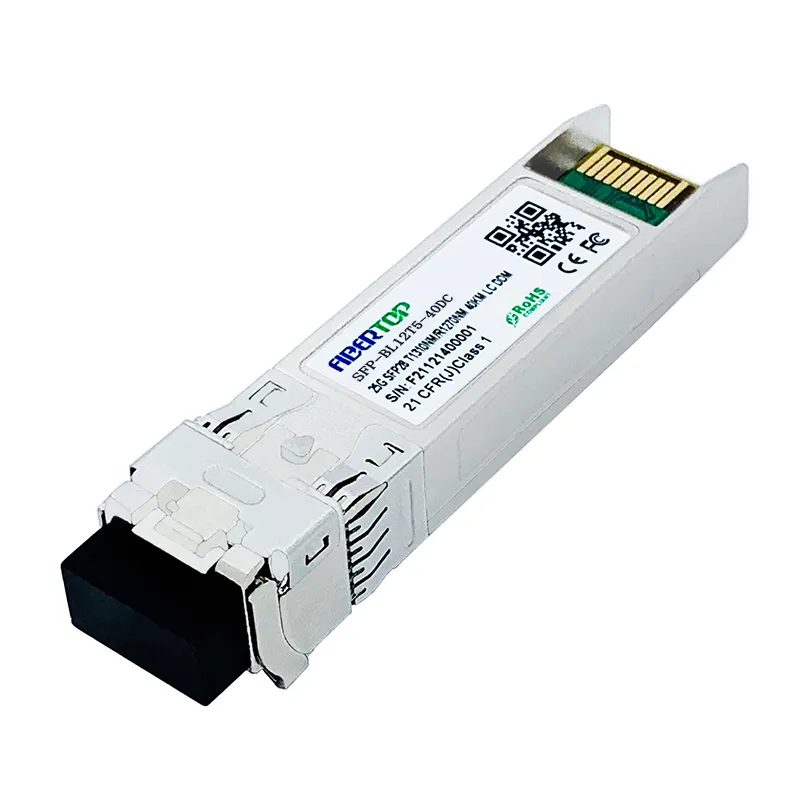

25GBASE-ER SFP28 BIDI 40km Tx1310nm/Rx1270nm Transceiver 1

25GBASE-ER SFP28 BIDI 40km Tx1310nm/Rx1270nm Transceiver 2

25GBASE-ER SFP28 BIDI 40km Tx1310nm/Rx1270nm Transceiver

SKU: SFP-BL12T5-40DC

Product Highlights

Supports up to 25.78Gbps bit rates

Hot-pluggable SFP28 footprint

1310nm/1270nm DFB Laser and APD receiver

Compliant with SFF-8402 with LC connector

Up to 40km transmission on SMF

Single +3.3V power supply

Power dissipation < 1.5 W

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Compatible With OEM Part Number(s)

SFP-BL12T5-40DC

Compatible OEM

FIBERTOP

Transceiver Type

Form Type

SFP28

Speed Description

25-Gigabit

Reach

40km

Wave length

1310nmTx/1270nmRx

Media

SMF

Connector

SingleLC

TXPower

0~+6dBm

Extinction Ratio

>3.5dB

Receiver Sensitivity

<-17.5dBm

25GBASE ER BIDI 40km SFP28 SMF 1310nmTx/1270nmRx Single LC DOM Transceiver

This SFP28 25GBASE ER BIDI transceiver provides 25GBase-BX throughput up to 40km over single mode fiber (SMF) using a wavelength of 1310nmTX/1270nmRX via an LC simplex connector. This bidirectional unit must be used with another transceiver or network appliance of complimenting wavelengths. It provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-BL12T5-40DC
Transceiver Type	BX	Reach	40km
Wavelength	1310nm Tx/1270nm Rx	Form Type	SFP28
Speed Description	25-Gigabit	Media	SMF
Connector	Single LC	Extinction Ratio	>3.5 dB
TX Power	0~+6 dBm	Receiver Sensitivity	<-17.5 dBm
Applications	25GBASE-ER	Environment	Operating:0 to 70°C Storage: -40°C to 85°C
