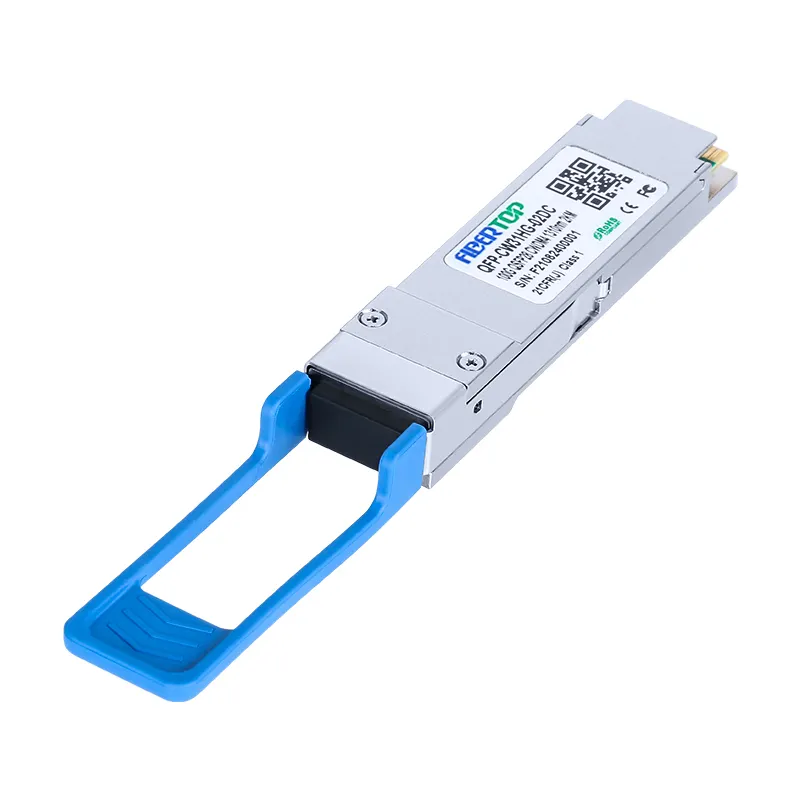

100G QSFP28 100GBASE-LR4 CWDM4 1310nm 2km Transceiver 1

100G QSFP28 100GBASE-LR4 CWDM4 1310nm 2km Transceiver 2

100G QSFP28 100GBASE-LR4 CWDM4 1310nm 2km Transceiver

SKU: QFP-CW31HG-02DC

Product Highlights

Hot-pluggable QSFP28 form factor

Supports 25G/28G Dual-Rate operation

Maximum link length of 2km on Single Mode Fiber (SMF)

Power dissipation < 3.5W

Built-in digital diagnostic functions

Supports 40G/100G Dual Mode operation with CDR auto-bypass mode

4x25.78Gb/s DFB-based CWDM transmitter

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Compatible With OEM Part Number(s)

QFP-CW31HG-02DC

Compatible OEM

FIBERTOP

Transceiver Type

LR2km

Form Type

QSFP28

Speed Description

100G

Reach

2km

Wave length

1310nm

Media

SMF

Connector

LCDuplex

TXPower

-6.5~+2.5dBm

Extinction Ratio

>3.5dB

Receiver Sensitivity

<-10.0dBm

100G QSFP28 LR4 CWDM4 1310nm 2km LC Transceiver Module

100G QSFP28 LR4 is 100Gb/s QSFP28 IR4 transceiver. It is compliant with the QSFP28 MSA and IEEE 802.3ba. QSFP28 IR4 transceiver modules are designed for use in 100 Gigabit Ethernet interfaces over single mode fiber.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	QFP-CW31HG-02DC
Transceiver Type	LR 2km	Reach	2km
Wavelength	1310nm	Form Type	QSFP28
Speed Description	100G	Media	SMF
Connector	LC Duplex	Extinction Ratio	>3.5 dB
TX Power	-6.5~+2.5 dBm	Receiver Sensitivity	<-10.0 dBm
Applications	100G CWDM4 applications with FEC High-density datacenter switches, routers	Environment	Operating: 0 to 70°C
