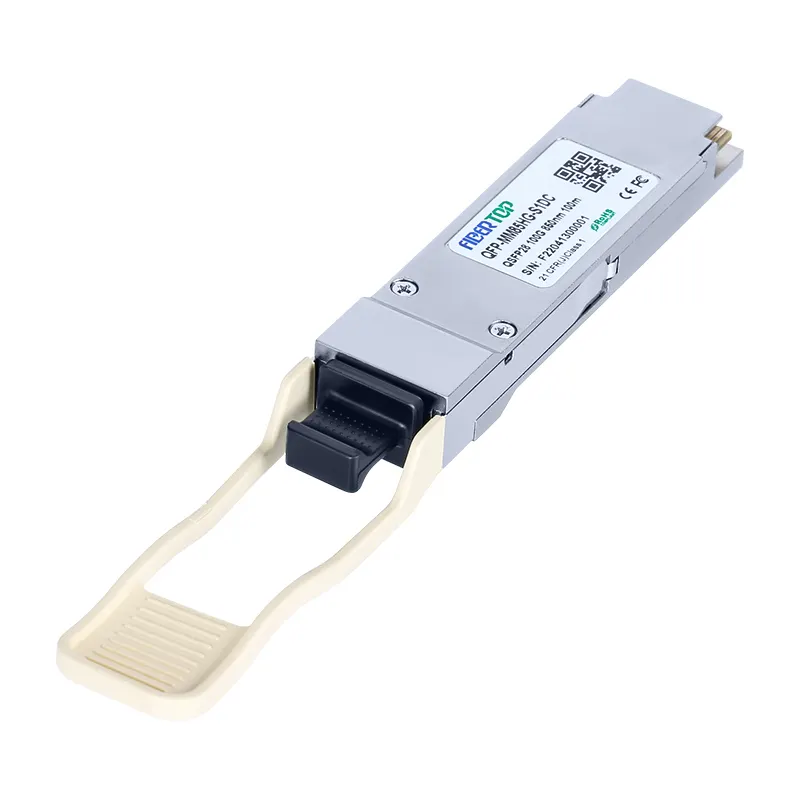

QSFP28-SR4-100G 850nm 100m Transceiver 1

QSFP28-SR4-100G 850nm 100m Transceiver 2

QSFP28-SR4-100G 850nm 100m Transceiver

SKU: QFP-MM85HG-S1DC

Product Highlights

Four-channel full-duplex transceiver

25.78Gb/s data rate per channel

Maximum link length of 70m on OM3(MMF) ,100m on OM4 (MMF)

Power dissipation < 2.5W

Built-in digital diagnostic functions，Built-in CDR

850nm VCSEL transmitter，Good EMI performance

Single 3.3V power supply

RoHS compliant

Operating case temperature: -40~+85°C

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Compatible With OEM Part Number(s)

QFP-MM85HG-S1DC

Compatible OEM

FIBERTOP

Transceiver Type

SR4

Form Type

QSFP28

Speed Description

100Gb/s

Reach

100m

Wave length

850nm

Media

MMF

Connector

MPO

TXPower

-8.4~2.4dBm

Extinction Ratio

>3.0dB

Receiver Sensitivity

<-5.6dBm

100GBASE-SR4 QSFP28 Transceiver MMF 850nm 100m MPO DOM

100GBASE-SR4 QSFP28 is 100Gb/s QSFP28 SR4 Industrial transceiver.

It is compliant with the QSFP28 MSA and IEEE 802.3bm.

QSFP28 SR4 is an assembly of four full-duplex lanes, where each lane is capable of transmitting data at rates up to 25.78Gb/s, providing an aggregated rate of 103.125Gb/s.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	QFP-MM85HG-S1DC
Transceiver Type	SR4	Reach	100m
Wavelength	850nm	Form Type	QSFP28
Speed Description	100Gb/s	Media	MMF
Connector	MPO	Extinction Ratio	>3.0 dB
TX Power	-8.4~2.4 dBm	Receiver Sensitivity	<-5.6 dBm
Applications	100GBASE-SR4 100G Ethernet 40GBASE-SR4 40G Ethernet High-speed interconnects within/between switches, routers and transport equipment Server-server clusters Super-computinginterconnections Interconnects rack-to-rack, shelf-to-shelf, board-to-board, board-to-optical backplane	Environment	Operating:-40°C to 85°C Storage: -40°C to 85°C
