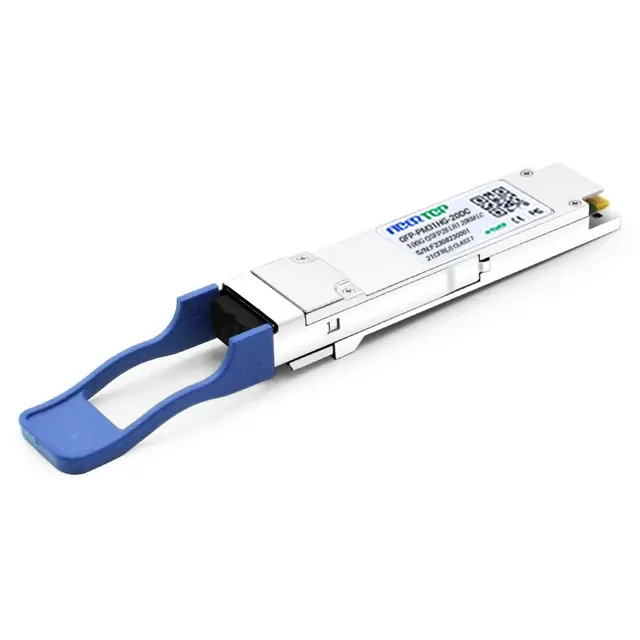

FIBERTOP 100G PAM4 LR1 QSFP28 SMF 1310nm 20km LC DOM Transceiver Module 1

FIBERTOP 100G PAM4 LR1 QSFP28 SMF 1310nm 20km LC DOM Transceiver Module 2

FIBERTOP 100G PAM4 LR1 QSFP28 SMF 1310nm 20km LC DOM Transceiver Module 3

FIBERTOP 100G PAM4 LR1 QSFP28 SMF 1310nm 20km LC DOM Transceiver Module

SKU: QFP-PM31HG-20DC-FSZ

Product Highlights

Compliant to 100G Lambda MSA 100G LR1-20

Full-duplex transceiver module

4x25.78125Gbps NRZ electrical interface(CAUI-4)

106.25Gbps PAM4 based on a cooled EML TOSA transmitter

106.25Gbps PAM4 PIN Receiver

4W maximum power dissipation

Maximum link length of 20km on G.652 SMF with KP-FEC

Hot-pluggable QSFP28 form factor

Duplex LC receptacles

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Compatible With OEM Part Number(s)

QFP-PM31HG-20DC

Compatible OEM

FIBERTOP

Transceiver Type

LR1

Form Type

QSFP28

Speed Description

100Gb/s

Reach

20km

Wave length

PAM4

Media

SMF

Connector

TXPower

-0.2~6.6dBm

Extinction Ratio

>3.5dBm

Receiver Sensitivity

<-7.6dBm

FIBERTOP 100G PAM4 LR1 QSFP28 Transceiver SMF 1310nm 20km LC DOM

The FIBERTOP 100G LR1-20km QSFP28 optical transceiver, 100G QSFP28 LR1-20(QFP-PM31HG-20DC) is designed for using in 100-Gigabit Ethernet links up to 20km over Single-Mode Fiber (SMF). It is compliant with the QSFP28 MSA ,

100G Lambda 100G LR1-20 and CAUI-4(no FEC)1. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.

The module incorporates 1 channel optical signal, on 1311nm center wavelength, operating at 100Gbps data rate. This module can convert 4 channels of 25Gbps (NRZ) electrical input data to 1 channel of 100Gbps (PAM4) optical signal,

and also can convert 1 channel of 100Gbps (PAM4) optical signal to 4 channels of 25Gbps (NRZ) electrical output data. The electrical interface uses a 38-contact edge type connector. The optical interface uses a Duplex LC connector.

The high performance cooled EML transmitter and high sensitivity PIN receiver provide superior performance for 100Gigabit Ethernet applications up to 20km links.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	QFP-PM31HG-20DC
Transceiver Type	LR1	Reach	20km
Wavelength	PAM4	Form Type	QSFP28
Speed Description	100Gb/s	Media	SMF
Connector	LC	Extinction Ratio	>3.5 dBm
TX Power	-0.2~6.6 dBm	Receiver Sensitivity	<-7.6 dBm
Applications	100G Lambda 100G LR1-20	Environment	Operating:0 to70C Storage: -40°C to 85°C
