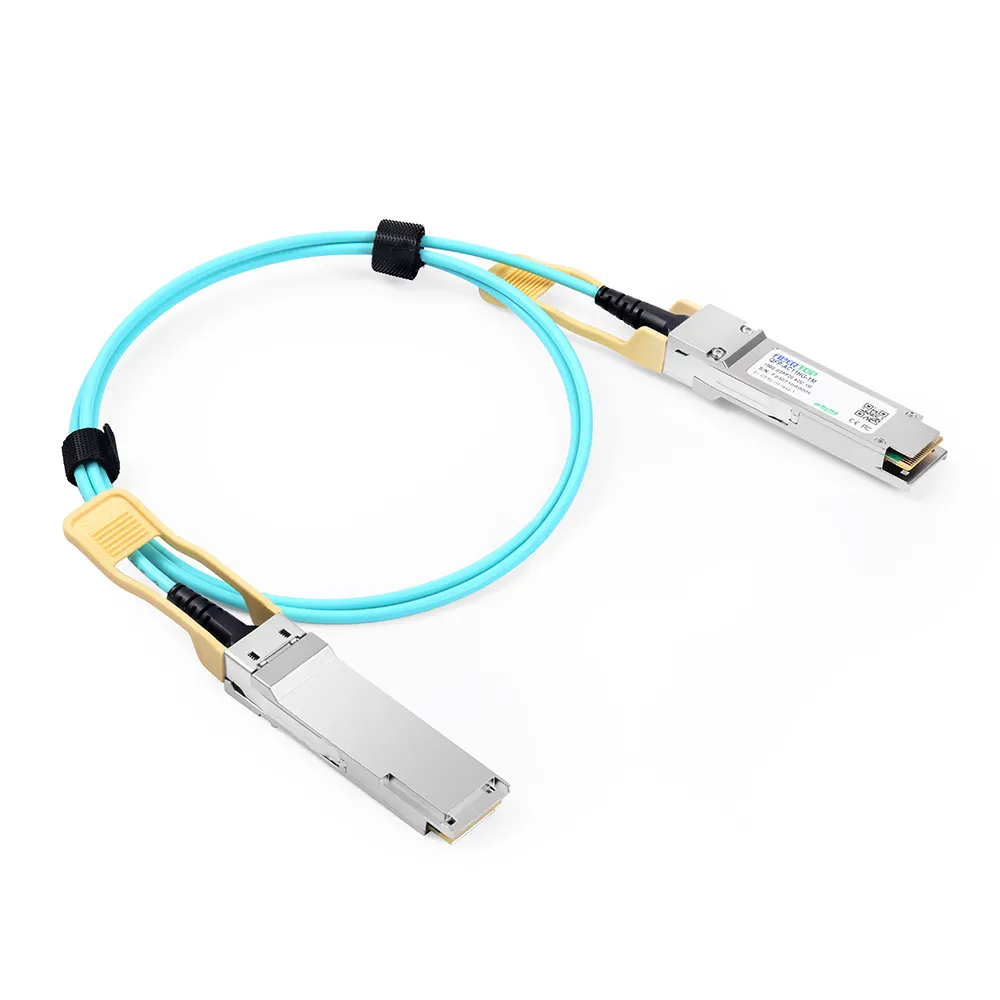

100G QSFP28 AOC 1M~100M

SKU: QFP-AC11HG-1MC

Product Highlights

Four-channel full-duplex active optical cable

Multirate capability: 10 Gb/s and 25 Gb/s per channel

QSFP28 high-density form factor

Reliable VCSEL array technology using multimode fiber

Power dissipation: <3.5W per cable end

Commercial operating case temperature range: 0ºC to 70ºC

Operating case temperature: 0~+70°C

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

100G QSFP28 Active Optical Cable 1M-100M Transceiver manufacturer

100G QSFP28 AOC to QSFP28 Active Optical Cable assemblies are a reliable, cost and power efficient, integrated solution which is ideal for high density signal transmission typically seen in most storage, data centers and high performance computing applications with fiber cable length up to 100meters

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	QFP-AC11HG-1MC
Connector Type	QSFP28 to QSFP28	Length	1m
Minimum Bend Radius	30mm	Cable Type	Optical Cable
Speed Description	100G	Receiver Type	PIN
Transmitter Type	VSCEL	Wavelength	850nm
Jacket Material	OFNP	Power supply	3.3V
Applications	HPC Interconnects Data center and in-rack connection	Environment	Operating: 0 to 70°C

Questions & Answers

Q：Is this 100G AOC model compatible with ARUBA?

A：Yes，No problem.
