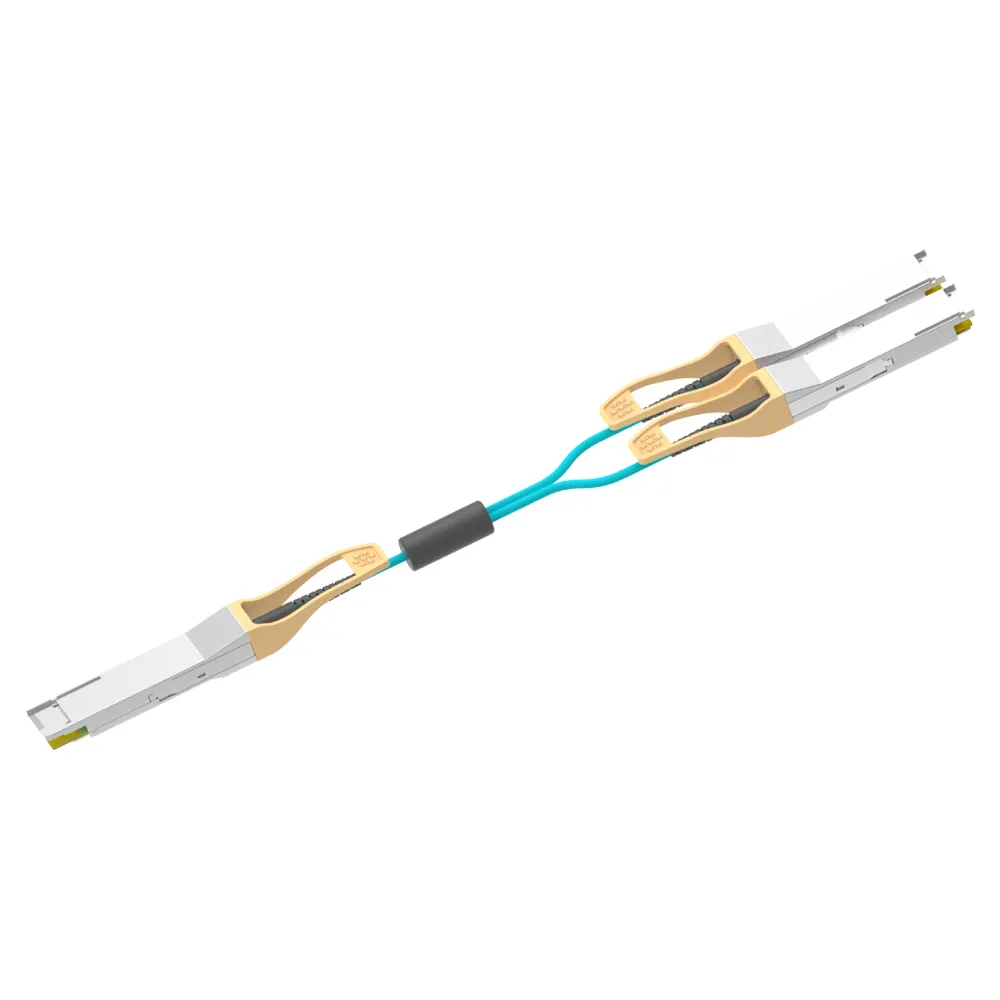

200G QSFP-DD To 2x100G QSFP28 AOC

SKU: QFP-AC12DG-xxMC

Product Highlights

Hot-pluggable QSFP- DD/QSFP28 form factor

8 channels full-duplex transceiver module

Supports data rate up to 26Gbps per channel

8 channels 850nm VCSEL array and PIN photo-detector array

Internal CDR circuits within receiver and transmitter data paths

Supports CDR bypass via I2C controlled

Low power consumption: 200GBASE-SR8 QSFP DD＜4W and 100GBASE-SR4 QSFP28＜2.5W

Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF

Single MTP/MPO receptacle

Built-in digital diagnostic monitoring functionality

I2C management interface，Single 3.3V power supply

RoHS 2.0 compliant (lead free)，Commercial case temperature of 0 to 70°C

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

200G QSFP-DD to 2x100G QSFP28 1M(3ft) Berakout Active Optical Cable

200G QSFP-DD To 2x100G QSFP28 breakout Active Optical Cable (QFP-AC12DG-xxMC ) is designed for short-range multi-lane data communication and interconnect applications.

It integrates eight data lanes in each direction with 8x25.78125Gbps bandwidth. Each lane can operate at 25.78125Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber.

These modules are designed to operate over multimode fiber systems using a nominal wavelength of 850nm. The electrical interface uses a 76 contact edge type connector.

The optical interface uses a 24 fiber MTP (MPO) connector.

This module incorporates FIBERTOP Technologies proven circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	QFP-AC12DG-xxMC
Transceiver Type	AOC	Reach	1~100M
Wavelength	850nm	Form Type	QSFPDD/QSFP28
Speed Description	200Gb/s	Media	MMF
Receiver Reflectance	< -12 dBm	Extinction Ratio	>3 dB
Average Power at Receiver Input (each lane)	-8.4~2.4 dBm	Stressed Receiver Sensitivity in OMA2	<-5.2 dBm
Applications	IEEE 802.3cd 200GBASE SR8 IEEE 802.3bm 100GBASE SR4	Environment	Operating:0 to 70°C Storage: -40°C to 85°C
