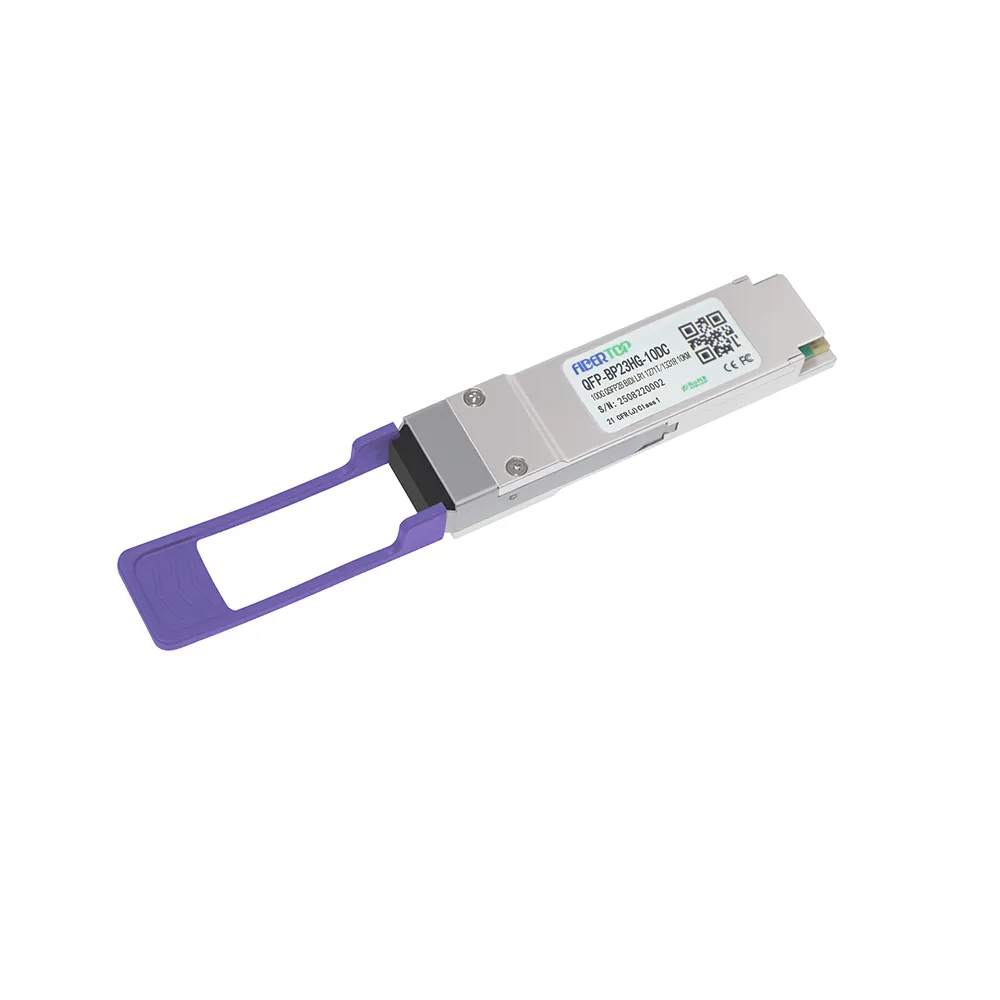

100GBASE-LR1 QSFP28 100G BiDi 10km Tx1271nm/Rx1331nm Transceiver
SKU: QFP-BP23HG-10DC
Product Highlights
Lane signaling rate 106.25Gb/s with PAM4
Up to 10km transmission on SMF
EML Laser and PIN receiver
4x25.78Gb/s with NRZ electrical interface (CAUI-4)
Support KP4 FEC inside the module
High speed I/O electrical interface
I2C interface with integrated Digital Diagnostic monitoring
5.0
order
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
payments:
Required Products
Total price discount:
quantity
Discount
price
Compatible With OEM Part Number(s)
QFP-BP23HG-10DC
Compatible OEM
FIBERTOP
Transceiver Type
LR1
Form Type
QSFP28
Speed Description
100G
Reach
10km
Wave length
Tx1271nm/Rx1331nm
Media
SMF
Connector
SimplexLC
TXPower
-1.4~4.5dBm
Extinction Ratio
>3.5dB
Receiver Sensitivity
<-6.1dBm
100GBASE-LR1 QSFP28 100G BiDi 10km Tx1271nm/Rx1331nm Transceiver
QSFP28 100GBASE-LR1 100G single fiber optical transceiver module (Tx1271nm/Rx1331nm) is designed for use in 100 Gigabit Ethernet links over 10km single mode fiber. The module incorporate one channel optical signal and operates on 1271nm and 1331nm wavelength. Compliant with the QSFP28 MSA. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.
Technical Specification
| Vendor Name | FIBERTOP | FIBERTOP Part Number(s) | QFP-BP23HG-10DC |
| Transceiver Type | LR1 | Reach | 10km |
| Wavelength | Tx1271nm/Rx1331nm | Form Type | QSFP28 |
| Speed Description | 100G | Media | SMF |
| Connector | Simplex LC | Extinction Ratio | > 3.5 dB |
| TX Power | -1.4 ~ 4.5 dBm | Receiver Sensitivity | < -6.1 dBm |
| Applications |
100GBASE-LR BIDI |
Environment |
Operating: 0°C to 70°C
|
