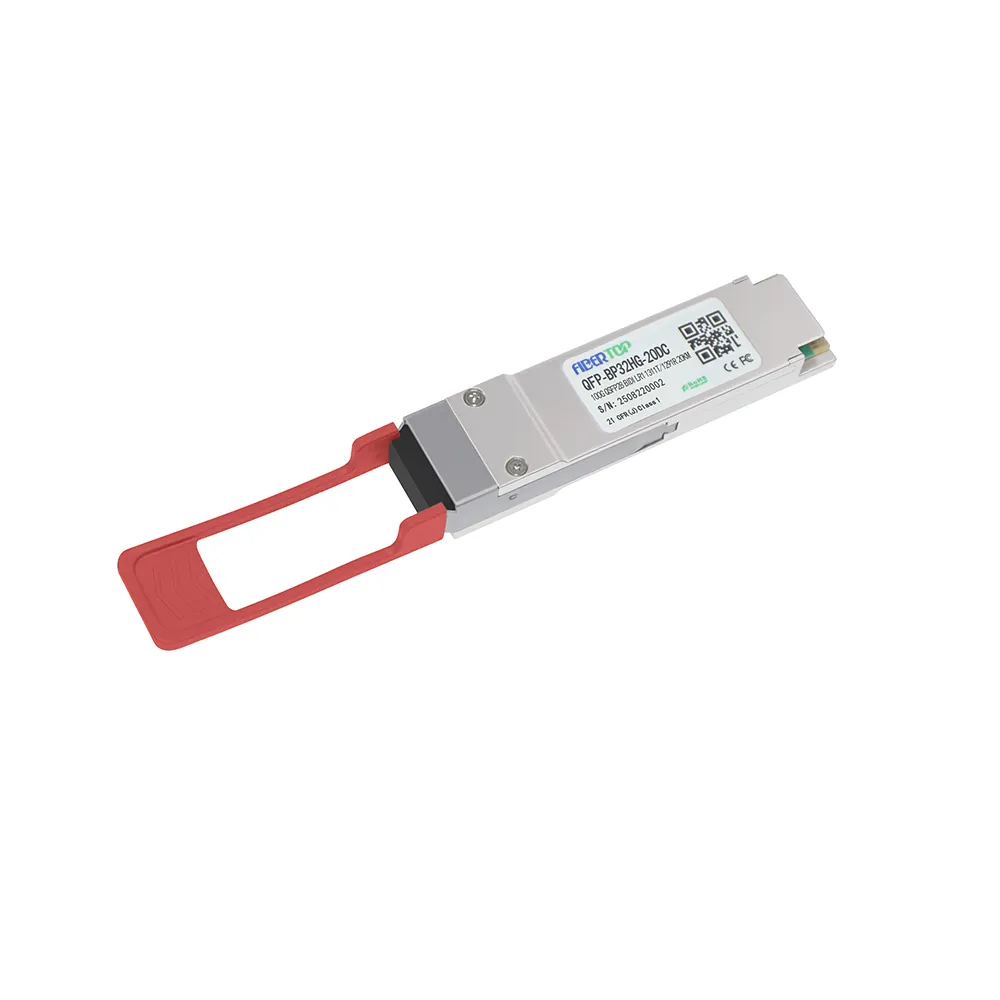

100GBASE-LR1 QSFP28 100G BiDi 20km Tx1311nm/Rx1291nm Transceiver
SKU: QFP-BP32HG-20DC
Product Highlights
4x25.78Gb/s with NRZ electrical interface (CAUI-4)
Lane signaling rate 106.25Gb/s with PAM4
Up to 20km transmission on SMF
EML Laser and PIN receiver
QSFP28 MSA package with simplex LC connector
I2C interface with integrated Digital Diagnostic monitoring
Single +3.3V power supply
5.0
order
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
payments:
Required Products
Total price discount:
quantity
Discount
price
Compatible With OEM Part Number(s)
QFP-BP32HG-20DC
Compatible OEM
FIBERTOP
Transceiver Type
BIDI
Form Type
QSFP28
Speed Description
100G
Reach
20km
Wave length
Tx1311nm/Rx1291nm
Media
SMF
Connector
SimplexLC
TXPower
-0.2~6.6dBm
Extinction Ratio
>3.5dB
Receiver Sensitivity
<-7.6dBm
100GBASE-LR1 QSFP28 100G BiDi 20km Tx1311nm/Rx1291nm Transceiver
QSFP28 100G BIDI LR1 optical transceiver, designed for using in 100GBASE-LR1 application. It is compliant with the 100G Lambda MSA 100G-LR1 Optical Specifications. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.
Technical Specification
| Vendor Name | FIBERTOP | FIBERTOP Part Number(s) | QFP-BP32HG-20DC |
| Transceiver Type | BIDI | Reach | 20km |
| Wavelength | Tx1311nm/Rx1291nm | Form Type | QSFP28 |
| Speed Description | 100G | Media | SMF |
| Connector | Simplex LC | Extinction Ratio | > 3.5 dB |
| TX Power | -0.2 ~ 6.6 dBm | Receiver Sensitivity |
< -7.6 dBm |
| Applications |
Data Center 100GBASE-LR BIDI
|
Environment |
Operating:0℃ to 70℃
|
Questions & Answers
Q：Can you provide 100G BIDI 80km products?
A：Yes, the samples have been verified and passed, and we expect to be able to ship in bulk by the end of August.
