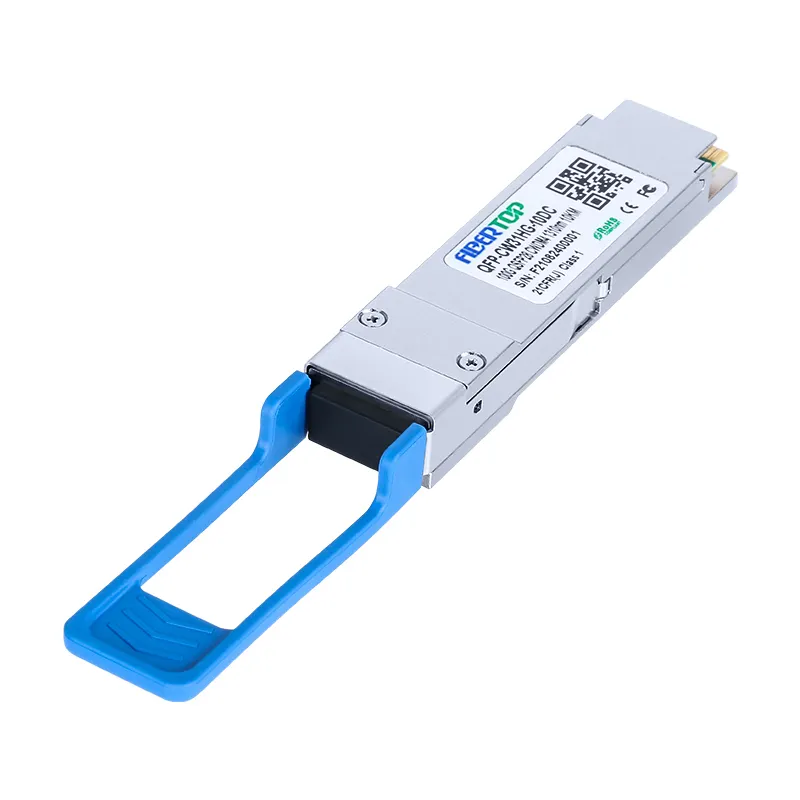

QSFP28 100G LR4 CWDM4 1310nm 10km Transceiver 1

QSFP28 100G LR4 CWDM4 1310nm 10km Transceiver 2

QSFP28 100G LR4 CWDM4 1310nm 10km Transceiver

SKU: QFP-CW31HG-10DC

Product Highlights

Hot-pluggable QSFP28 form factor

Supports 25G/28G Dual-Rate operation

Maximum link length of 10km on Single Mode Fiber (SMF)

Power dissipation < 3.5W

Built-in digital diagnostic functions

Supports 40G/100G Dual Mode operation with CDR auto-bypass mode

4x25.78Gb/s DFB-based CWDM transmitter

Duplex LC receptacles,Single 3.3V power supply

RoHS compliant,,Operating case temperature: 0~+70°C

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Compatible With OEM Part Number(s)

QFP-CW31HG-10DC

Compatible OEM

FIBERTOP

Transceiver Type

LR4

Form Type

QSFP28

Speed Description

103.1Gb/s

Reach

10km

Wave length

CWDM41310nm

Media

SMF

Connector

TXPower

-4.0~2.5dBm

Extinction Ratio

>3.5dB

Receiver Sensitivity

<-10.0dBm

100GBASE-LR4 QSFP28 Transceiver SMF CWDM4 1310nm 10km LC DOM

100G QSFP28 LR4 is 100Gb/s QSFP28 IR4 transceiver.

It is compliant with the QSFP28 MSA and IEEE 802.3ba.

QSFP28 IR4 transceiver modules are designed for use in 100 Gigabit Ethernet interfaces over single mode fiber.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	QFP-CW31HG-10DC
Transceiver Type	LR4	Reach	10km
Wavelength	CWDM4 1310nm	Form Type	QSFP28
Speed Description	103.1 Gb/s	Media	SMF
Connector	LC	Extinction Ratio	>3.5 dB
TX Power	-4.0~2.5 dBm	Receiver Sensitivity	<-10.0 dBm
Applications	100G CWDM4 applications with FEC High-density datacenter switches, routers	Environment	Operating:0 to 70°C Storage: -40°C to 85°C
