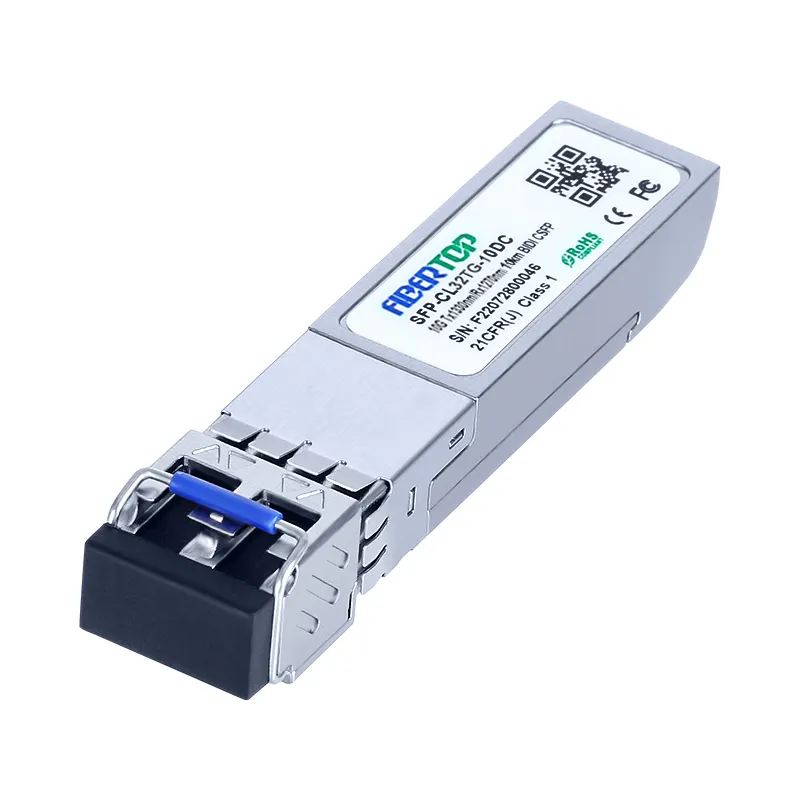

10GBASE-BX 10G CSFP+ BIDI 10km Tx1330nm/Rx1270nm Transceiver

SKU: SFP-CL32TG-10DC

Product Highlights

Two Bi-Directional transceivers in one SFP package

Up to 10.3Gb/s data links, Duplex LC connector

1330nm DFB laser transmitter

Hot-pluggable SFP footprint

RoHS compliant and Lead Free

Up to 10Km on 9/125um SMF

Single +3.3V power supply

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

10GBASE-BX 10G CSFP+ BIDI Transceiver SMF Tx 1330nm/Rx 1270nm 10km Double BIDI LC DOM

ESD to the Electrical PINs: compatible with MIL-STD-883 Method 3015;

ESD to the Single LC Receptacle: compatible with IEC 61000-4-2;

Immunity compatible with IEC 61000-4-3;

EMI compatible with FCC Part 15 Class B EN55022 Class B (CISPR 22B) VCCI Class B;

Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC) 60825-1,2;

RoHS compliant with RoHS 2 (2011/65/EU).

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-CL32TG-10DC
Transceiver Type	Double BX	Reach	10km
Wavelength	Tx 1330nm/Rx 1270nm	Form Type	CSFP+
Speed Description	10-Gigabit	Media	SMF
Connector	Double BIDI LC	Extinction Ratio	>3.5 dBm
TX Power	-5~2 dBm	Receiver Sensitivity	<-12 dBm
Applications	10Gbps Optical systems 10GBASE-LR at 10.3125Gbps 10GBASE-LW at 9.953Gbps	Environment	Operating:0 to 70°C Storage: -40°C to 85°C
